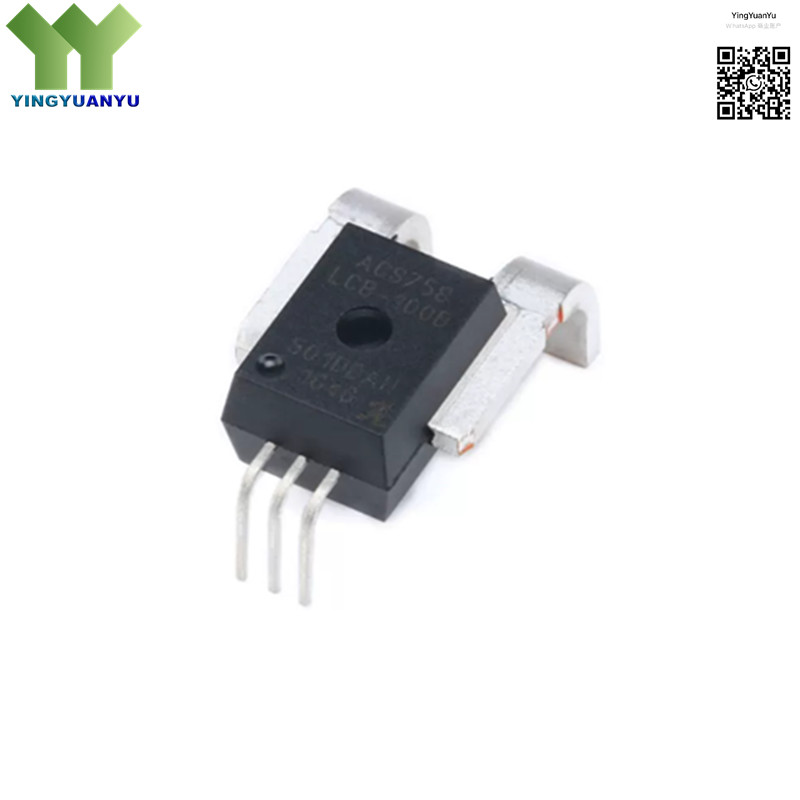

ACS758LCB-100B-PFF-T
ACS758LCB-100B-PFF-T
| Part Number | ACS758LCB-100B-PFF-T |
|---|---|
| Manufacturer | Allegro MicroSystems |
| Category | Current Sensors; Hall-Effect Current Sensor |
| Description | 100A Hall-Effect Linear Current Sensor, Isolated, 5V Supply, CB-5 Package |
Product Overview
The ACS758LCB-100B-PFF-T is a high-precision, galvanically isolated Hall-effect linear current sensor designed for high-current monitoring and control applications. It provides accurate measurement of DC or AC currents up to 100A, featuring integrated electrical isolation, low noise, and a stable analog output proportional to the sensed current. The device offers high bandwidth, overcurrent detection capability, and robust thermal performance for industrial, automotive, and power management systems. Housed in a compact CB-5 through-hole package, it enables safe and reliable current sensing in high-power electronic designs.
| Key Specifications | |
|---|---|
| Brand | Allegro MicroSystems |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | CB-5 |
| Mounting Type | Through Hole |
| Sensing Current Range | ±100 A |
| Supply Voltage | 5V Single Supply |
| Isolation Voltage | 4800V RMS Isolated |
| Operating Temperature | -40°C to +150°C |
Typical Applications
- DC/AC Motor Control & Inverters
- Power Supply & Battery Management Systems
- Automotive Current Monitoring
- Industrial Power Conversion Systems
- Overcurrent Protection & Fault Detection
- Renewable Energy Inverters
- Electric Vehicle (EV) Power Systems
- High-Current Industrial Equipment
