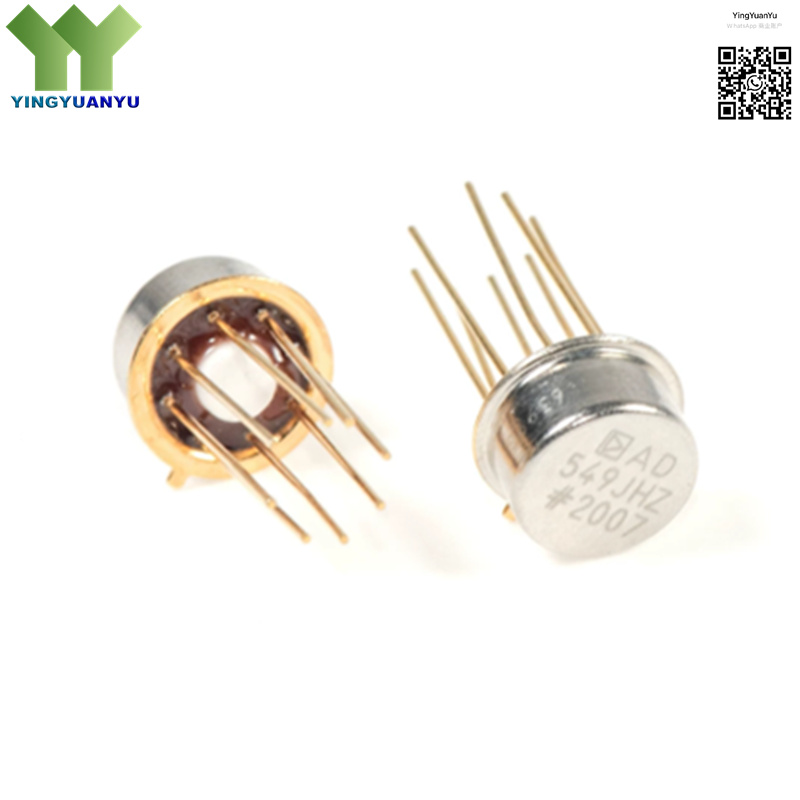

AD549JHZ
AD549JHZ
| Part Number | AD549JHZ |
|---|---|
| Manufacturer | Analog Devices |
| Category | Amplifiers; Precision Operational Amplifier |
| Description | Ultra-Low Input Current Precision Operational Amplifier,1MHz, TO-99-8 Package, Through Hole |
Product Overview
The AD549JHZ is a high-performance precision operational amplifier designed for ultra-low input bias current applications. It features extremely low input leakage current, high input impedance, wide bandwidth, and excellent DC precision, making it ideal for high-impedance sensor signal conditioning, low-current measurement, and precision instrumentation systems. The device offers stable performance over temperature and voltage variations, with robust construction for industrial and laboratory environments. Housed in a hermetic TO-99-8 through-hole package, it ensures long-term reliability and stable operation in critical precision analog circuits.
| Key Specifications | |
|---|---|
| Brand | Analog Devices |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-99-8 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | AD549JHZ |
| Input Bias Current | Ultra-Low (Typical 60fA) |
| Supply Voltage | ±4V ~ ±18V |
| Operating Temperature | 0°C to +70°C |
Typical Applications
- Precision Instrumentation & Measurement Systems
- High-Impedance Sensor Signal Conditioning
- Low-Current Detection & Electrometer Circuits
- Photodiode & Ion Chamber Amplifiers
- Medical Diagnostic Equipment
- Analog Data Acquisition Systems
- Laboratory Precision Test Equipment
- High-Input-Impedance Buffer Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
