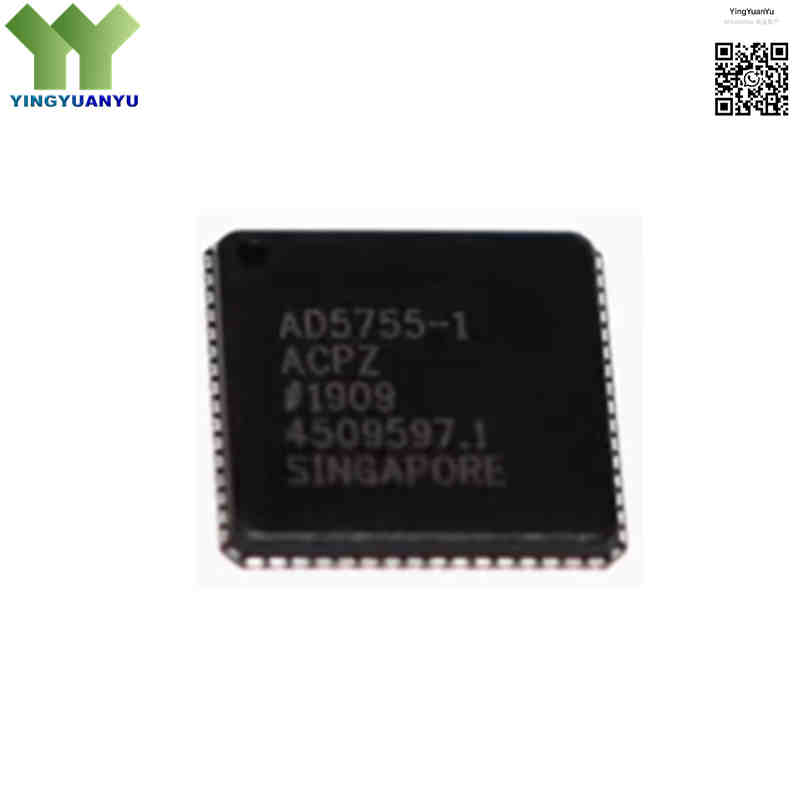

AD5755-1ACPZ-REEL7
AD5755-1ACPZ-REEL7
| Part Number | AD5755-1ACPZ-REEL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Digital to Analog Converters (DAC) |
| Description | Quad-channel 16-bit serial DAC with programmable voltage/current output, dynamic boost power control, native HART support, user-adjustable offset/gain, 64-LFCSP-VQ exposed pad package, 7-inch tape & reel packing. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD5755-1ACPZ-REEL7 is a high-integration 4-channel 16-bit industrial DAC from ADI, optimized for PLC, DCS and HART smart transmitters. Each channel supports independent software-programmable current or voltage output. Integrated dynamic boost power control (DPC) uses on-chip boost converter to cut thermal dissipation under heavy current-loop loads, enabling dense multi-channel PCB layout without extra heat sinks. It embeds 5V low-drift reference, full fault diagnostics (open/short circuit, overtemperature) and dedicated CHART pins for direct HART signal coupling without extra filter circuits. This REEL7 variant ships on 7-inch tape & reel for automated SMT mass assembly, packed in compact 64-LFCSP-VQ exposed pad package.
Core Advantages
Innovative Dynamic Boost Power Control (DPC)
On-chip DC-DC boost converter dynamically adjusts output driver voltage based on real load resistance, reduces internal power loss and heat buildup for tightly stacked multi-channel control modules.
Software-Flexible Multi-Range Output Configurations
4 fully independent channels support programmable current ranges: 0–20mA, 4–20mA, 0–24mA, ±20mA; voltage ranges: 0–5V, 0–10V, ±5V, ±10V via serial register setup.
Full Diagnostic & Circuit Fault Protection
Built-in monitoring detects current-loop open circuits, voltage output short circuits and chip overtemperature, sending fault flags to host controller for fast field fault response.
Native Dedicated HART Signal Coupling Pins
Independent CHART pins on each channel directly inject HART modulation signals onto analog current loops, eliminating complex external passive filter networks required by standard DAC models.
Key Specifications
| Product Line | Analog Devices High-Precision Industrial Process Control DAC Series |
|---|---|
| On-Chip Dynamic Boost Power Control (DPC) | Integrated DC-DC boost converter reduces chip heat dissipation for multi-channel dense PLC modules, native HART signal coupling pins integrated |
| RoHS Status | RoHS Compliant / Lead-Free / Green Material Package (“Z” Suffix Certified) |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB footprints available upon request |
| Warranty | 1-Year Standard Global Quality Warranty |
| Package / Case | 64-LFCSP-VQ (9mm × 9mm × 0.50mm) |
| Packaging Format | REEL7 = 7-inch diameter Tape & Reel for automated SMT pick-and-place mass production |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead Reflow Solder Assembly) |
| Surface Marking / Silkscreen | AD5755-1ACPZ Marking |
| Resolution Depth | 16-bit, fully monotonic DAC transfer curve |
| Number of Channels | 4 Fully Independent Programmable Output Channels |
| Output Signal Ranges | Current: 0–20mA, 4–20mA, 0–24mA, ±20mA; Voltage: 0–5V, 0–10V, ±5V, ±10V software selectable |
| HART Interface Support | Dedicated CHART pins per channel for direct HART modulation signal injection, no extra filter circuits required |
| Integral Nonlinearity (INL) | ±0.006% FSR Maximum relative accuracy |
| Total Unadjusted Error (TUE) | ±0.05% FSR Max for current outputs; ±0.04% FSR Max for voltage outputs at 25°C |
| Digital Interface Type | 3-wire SPI (compatible with 4-wire, MICROWIRE, QSPI & DSP), with built-in Packet Error Checking (PEC) |
| Integrated Reference Source | Internal low-drift 5V voltage reference, max 10 ppm/°C temperature drift |
| Reference Output Drive Capability | 5V reference can supply up to 1mA external load current |
| Fault Detection Functions | Open-loop detection, short-circuit detection, over-temperature protection with digital fault flag output |
| Supply Voltage Ranges | Analog AVDD: −26.4 V ~ +33 V; Digital DVDD: 2.7 V ~ 5.5 V; Analog AVCC: 4.5 V ~ 5.5 V |
| Operating Temperature Range | -40°C to +105°C (Extended Industrial Wide Temperature Grade, non-AEC-Q100 automotive certified) |
Typical Applications
- PLC Mixed-Signal Analog Output (AO) Modules
- Distributed Control System (DCS) Field Nodes & Multi-Channel Automation Controllers
- HART-Enabled Smart 4–20mA Field Transmitters, Valve Positioners & Actuators
- Industrial Process Instrumentation & Multi-Loop Current Signal Converters
- Automated Test Equipment (ATE), Variable Frequency Drives & Remote Sensor Control Units
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Ship within 1–2 working days after payment confirmation |
| Delivery Time | 3–7 working days worldwide via international express |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Accepted Payment Methods | T/T Wire Transfer, PayPal, Credit Card, Western Union |
Technical Support
Submit inquiry form to request full datasheet, engineering samples, bulk tiered pricing and pinout diagrams. Our technical sales team replies globally within 24 hours.
Frequently Asked Questions
Q1: Are stocked AD5755-1ACPZ-REEL7 chips genuine new original?
A: All stock is 100% factory-original new ADI parts, shipped in original anti-static 7-inch tape & reel. Every batch passes visual and solder pin inspection before delivery.
Q2: What is the core difference between AD5755 and AD5755-1?
A: AD5755-1 adds dedicated CHART HART coupling pins and optimized internal signal routing, supporting direct HART modulation onto current loops with minimal external components; standard AD5755 lacks this dedicated HART hardware.
Q3: What does REEL7 suffix mean?
A: REEL7 denotes 7-inch diameter tape & reel packaging, standard format for high-volume automated SMT pick-and-place production lines.
Q4: How does DPC dynamic power control reduce cabinet heat?
A: Traditional DACs waste excess supply voltage across output transistors and generate heavy heat. AD5755-1’s integrated boost DPC dynamically adjusts driver supply voltage to match real load resistance, drastically cutting on-chip power dissipation for dense multi-channel modules.
