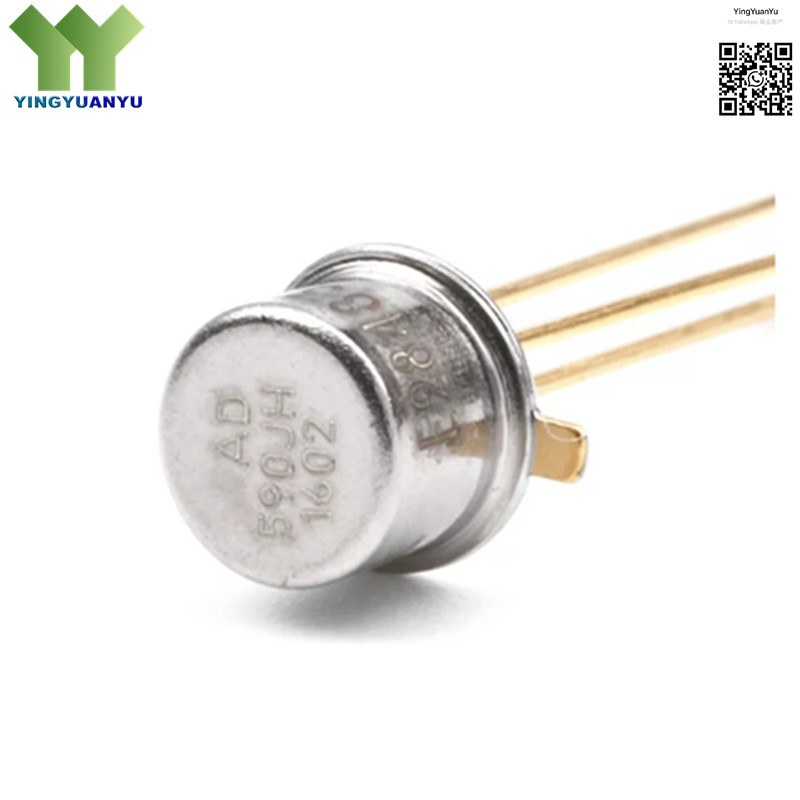

AD590JH
AD590JH
| Part Number | AD590JH |
|---|---|
| Manufacturer | Analog Devices |
| Category | Temperature Sensors; Two-Terminal Temperature Transducer |
| Description | Precision Two-Terminal IC Temperature Sensor, Current Output, -40℃~+125℃,4V~30V, TO-52 Package |
Product Overview
The AD590JH is a high-precision two-terminal integrated circuit temperature transducer that produces an output current proportional to absolute temperature. It operates over a wide temperature range from -55°C to +150°C, features a linear current output of 1 µA/K, and requires only an external power supply for operation. The device offers excellent long-term stability, high accuracy, low power consumption, and complete electrical isolation from the package. Housed in a rugged TO-52 through-hole package, it is ideal for industrial, automotive, aerospace, and instrumentation temperature measurement applications requiring reliable and precise sensing.
| Key Specifications | |
|---|---|
| Brand | Analog Devices |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-52 |
| Mounting Type | Through Hole |
| Temperature Range | -40℃~+125℃ |
| Output Type | Current Output (1 µA/K) |
| Supply Voltage | 4V ~ 30V |
| Accuracy | High Precision Temperature Sensing |
Typical Applications
- Industrial Temperature Monitoring & Control
- Automotive Temperature Sensing Systems
- Aerospace & Military Instrumentation
- Precision Thermal Measurement Equipment
- Environmental Monitoring Systems
- Power Supply Thermal Protection
- Medical Diagnostic & Testing Devices
- Process Control & Industrial Automation
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
