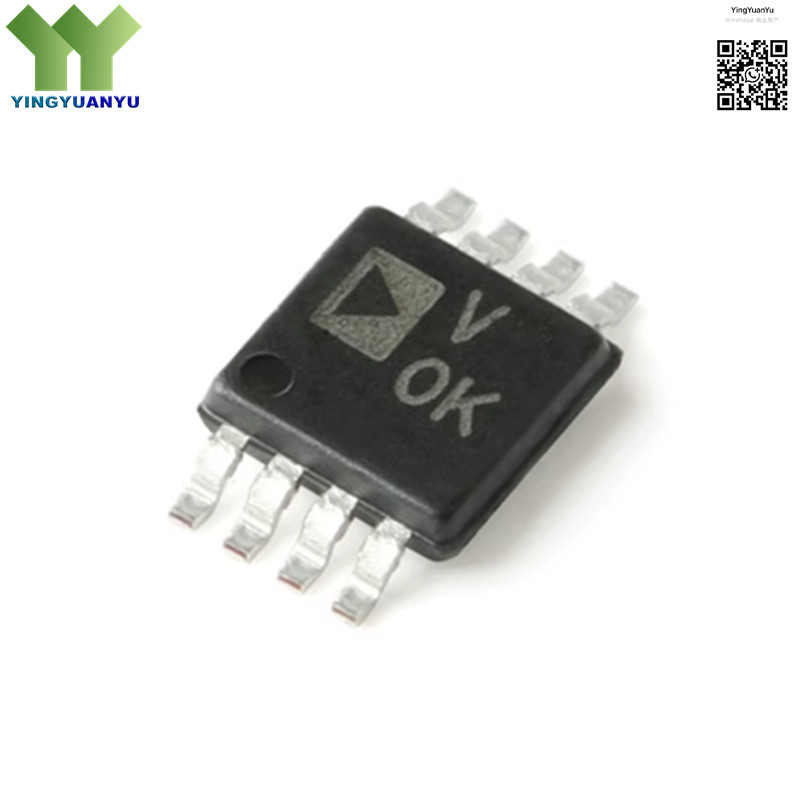

AD7740KRMZ-REEL7
AD7740KRMZ-REEL7
| Part Number | AD7740KRMZ-REEL7 |
|---|---|
| Manufacturer | Analog Devices |
| Category | Data Converters; Frequency to Voltage Converter |
| Description | High-Accuracy Frequency to Voltage Converter, 0.1 Hz to 100 kHz, 2.7V–5.5V, MSOP-8 Package |
Product Overview
The AD7740KRMZ-REEL7 is a high-accuracy, low-power frequency-to-voltage converter designed for precision measurement applications. It converts input frequency signals into proportional analog output voltages with excellent linearity and stability across a wide input range of 0.1 Hz to 100 kHz. The device operates from a single supply voltage of 2.7V to 5.5V, features low quiescent current, and includes an integrated temperature-compensated oscillator for reliable performance. Housed in a compact MSOP-8 surface-mount package, it is ideal for space-constrained industrial, automotive, and sensor-based measurement systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Analog Devices |
| Function | Frequency to Voltage Converter |
| Frequency Range | 0.1 Hz ~ 100 kHz |
| Supply Voltage | 2.7V ~ 5.5V |
| Package Type | MSOP-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Frequency Measurement & Monitoring Systems
- Sensor Signal Conditioning (Flow, Speed, Position)
- Industrial Process Control & Instrumentation
- Automotive Sensor & Control Modules
- Portable Measurement Devices
- Motor Speed & Rotation Detection
- Low-Power Embedded Analog Systems
- Precision Frequency-to-Voltage Conversion
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
