AD9162BBCAZ
AD9162BBCAZ
| Part Number | AD9162BBCAZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition > Digital to Analog Converters (DAC) |
| Description | 16‑Bit 12 GSPS High‑Speed RF Digital‑to‑Analog Converter with JESD204B Interface, 165‑Ball CSP_BGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9162BBCAZ is a 16‑bit, 12 GSPS RF DAC from Analog Devices for high‑performance RF transmitters. It delivers up to 2 GHz complex bandwidth and supports Mix‑Mode™ direct RF synthesis 1.5‑7.5 GHz. Equipped with 8‑lane JESD204B (12.5 Gbps/lane), 48‑bit NCO and programmable interpolation filters, it is widely used for 5G base stations, DOCSIS cable infrastructure, microwave radios and radar systems.
Core Advantages
Mix‑Mode™ Direct RF Synthesis to 7.5 GHz
Reconstruct RF signals within 2nd / 3rd Nyquist zones, removing the requirement for external IF mixing circuitry.
12 GSPS High Speed, 2 GHz Complex Bandwidth
Supports wide‑band multi‑carrier signal generation for DOCSIS, 5G, satellite and radio applications.
8‑Lane JESD204B High‑Speed Serial Interface
12.5 Gbps per lane SERDES interface simplifies PCB routing with fewer physical pins.
Excellent Dynamic & Low‑Noise Performance
Low NSD and high SFDR ensure clean output spectrum for multi‑carrier communication systems.
Key Specifications
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 165‑Ball CSP_BGA (8.0 × 8.0 mm,0.5 mm pitch) |
| Mounting Type | Surface Mount (SMT) |

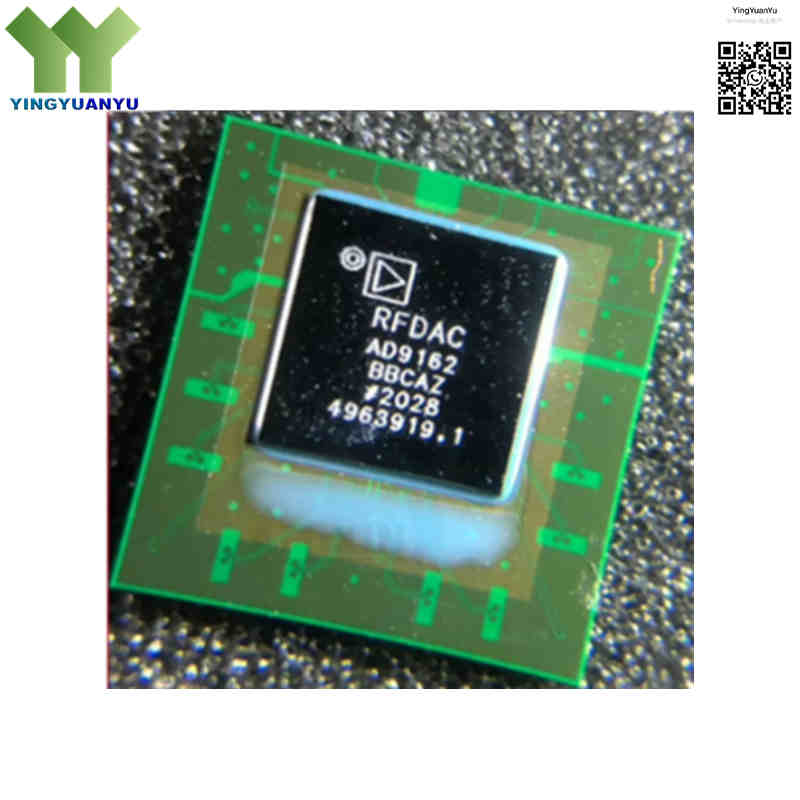

| Surface Marking / Silkscreen | AD9162BBCAZ / ADI Logo,Marking |
| Resolution | 16‑Bit |
| Maximum Update Rate | 12 GSPS |
| Number of DAC Channels | 1 Channel |
| Digital Interface | 8‑Lane JESD204B (Up to 12.5 Gbps per lane), SPI configuration |
| Complex Signal Bandwidth | Up to 2.0 GHz |
| NCO Resolution | 48‑Bit Numerically Controlled Oscillator |
| Interpolation Filters | 1x, 2x, 3x, 4x, 6x, 8x, 12x, 16x, 24x |
| Output Current Range | 8 mA ~ 38.76 mA (Typical 20‑30 mA) |
| Power Supplies | 1.2V Core, 2.5V I/O, -1.2V Analog Supplies |
| Operating Temperature Range | -40°C to +85°C |
| Mix‑Mode™ Operating Frequency | 1.5 GHz ~ 7.5 GHz |
Typical Applications
- DOCSIS 3.1 / DOCSIS 4.0 Cable Modem Termination Systems (CMTS) and Remote PHY nodes
- Wireless infrastructure: 4G/5G multi‑band macro base stations and micro cells
- Broadband communications, point‑to‑point microwave radios, and satellite ground stations
- Radar, electronic warfare (EW), and military communications systems
- High‑bandwidth RF test and measurement instrumentation, arbitrary waveform generators (AWG)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the primary function of the AD9162BBCAZ?
A: The AD9162BBCAZ is a high‑speed 16‑bit 12 GSPS RF DAC for wide‑band RF signal synthesis up to 7.5 GHz, widely used in communications, CATV and radar systems.
Q2: What digital interface does the AD9162BBCAZ use?
A: It adopts 8‑lane JESD204B serial interface, maximum 12.5 Gbps per lane, with SPI for register configuration, simplifying PCB layout and FPGA connection.
Q3: What is the difference between baseband and Mix‑Mode?
A: Mix‑Mode optimizes output power and dynamic performance for 2nd / 3rd Nyquist zones, achieving direct RF output 1.5‑7.5 GHz without external analog mixers.
Q4: What do suffix letters in AD9162 part number mean?
A: “BB” stands for CSP‑BGA package; “C” denotes industrial temperature grade (-40~85°C); suffix “AZ” indicates RoHS‑compliant lead‑free finish. AD9162BBCAZ and AD9162BBCZ are functionally identical.
Q5: Can AD9162BBCAZ be pin‑to‑pin compatible with AD9161?
A: They share the same footprint, but differ in sampling rate and internal firmware. Not fully drop‑in compatible; register settings and clock circuit need adjustment.
Q6: Are there alternative replacement parts?
A: AD9163 offers better SFDR performance; AD9164 supports wider bandwidth. Please verify sampling rate, package and Nyquist‑zone performance before replacement.
Q7: How to get datasheet and technical documents?
A: Submit inquiry via Quick Inquiry form for datasheet, IBIS‑JESD204B model and bulk quotation.
Q8: Why do I see both 165‑ball and 169‑ball for AD9162?
A: AD9162 has two CSP‑BGA variants. AD9162BBCAZ is 165‑ball (8.0×8.0 mm, 0.5 mm pitch). AD9162BBCA is 169‑ball (11×11 mm, 0.8 mm pitch). They are NOT pin‑to‑pin compatible. Always confirm full part‑number for PCB design.
