AD9361BBCZ-REEL
AD9361BBCZ-REEL
| Part Number | AD9361BBCZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > RF Transceiver ICs |
| Description | High-performance, highly integrated 2×2 RF Agile Transceiver™. RX frequency range 70 MHz ~ 6.0 GHz, TX frequency range 47 MHz ~ 6.0 GHz, programmable channel bandwidth below 200 kHz to 56 MHz, supports dual CMOS/LVDS digital interface, packaged in 144-ball CSP_BGA. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9361BBCZ-REEL is ADI’s high-integrated 2×2 RF Agile Transceiver. Targeted for SDR prototyping, cellular base stations and military secure communications, this single-chip IC integrates RF front-end, mixed-signal baseband and fractional-N synthesizers. It features RX 70 MHz–6.0 GHz / TX 47 MHz–6.0 GHz full global wireless spectrum coverage, dual independent direct-conversion TX/RX paths, programmable digital filters and auto AGC for stable high dynamic range. Software-adjustable bandwidth spans <200 kHz to 56 MHz to remove external discrete RF parts. Packaged in tape-and-reel 144-ball 10×10mm CSP_BGA, it provides a compact, low-BOM software-defined RF transceiver for communication hardware design.
Core Advantages
Unmatched RF Spectrum Agility
RX continuous tuning range 70 MHz–6.0 GHz, TX extended coverage 47 MHz–6.0 GHz, enabling unified hardware design for multi-standard multi-band wireless equipment.
Flexible Software-Programmable Bandwidth
Built-in decimation and FIR digital filters support adjustable channel bandwidth from below 200 kHz to 56 MHz, compatible with narrowband telemetry and wideband 3G/4G cellular communication standards.
Highly Integrated 2×2 MIMO Architecture
Dual independent transmit and receive channels integrated on one chip, effectively reducing system power consumption, PCB footprint and total BOM cost.
Advanced Subsystem Control Engines
Embedded full self-calibration logic, state machine controllers, fast-response AGC and built-in I/Q quadrature correction, guaranteeing consistent RF linearity and deterministic real-time operation.
Key Specifications
| Brand Series | Analog Devices RF Agile Transceiver™ Premier Series |
|---|---|
| RoHS Status | RoHS Compliant, Lead-Free, Halogen-Free (Validated by “Z” suffix) |
| EDA/CAD Model | 3D STEP, schematic symbols and PCB footprint files available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 144-LFBGA / CSPBGA (10mm × 10mm × 1.7mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT, lead-free reflow assembly) |

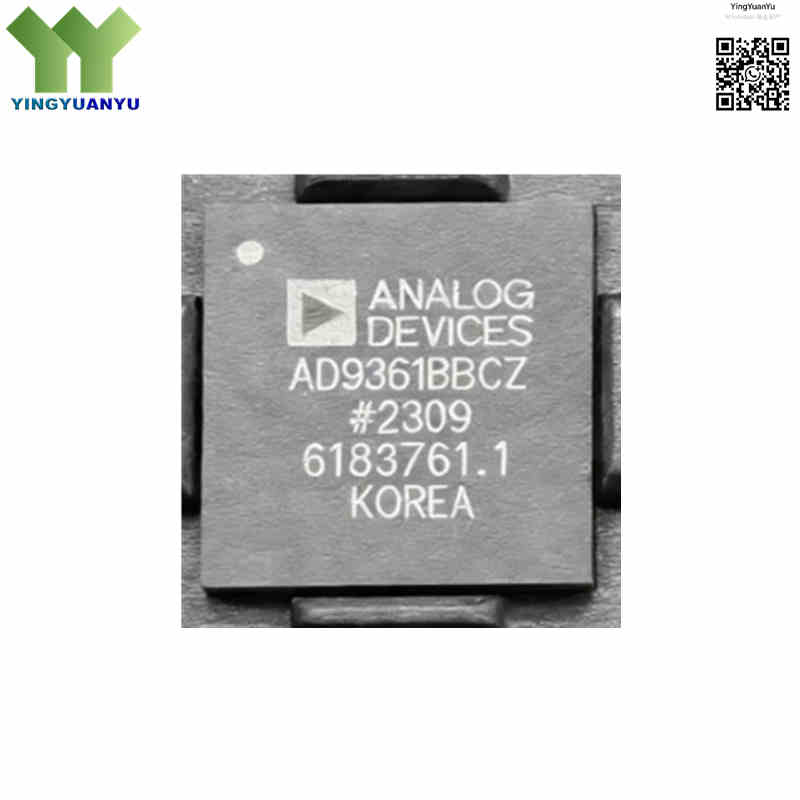

| Surface Marking | AD9361BBCZ Marking |
| RF Channel Configuration | 2 independent Transmit (TX) + 2 independent Receive (RX) channels (2×2 MIMO) |
| RF Frequency Coverage | RX: 70 MHz ~ 6.0 GHz; TX: 47 MHz ~ 6.0 GHz continuous tuning |
| Programmable Channel Bandwidth | <200 kHz to 56 MHz software adjustable |
| Receiver Noise Figure | 2 dB Typical (measured at 800 MHz LO frequency, ADI datasheet standard value) |
| Digital I/O Interface | Dual 12-bit parallel CMOS or Low-Voltage Differential Signaling (LVDS) interface selectable |
| Fractional-N Synthesizer step | Minimum 2.4 Hz LO tuning step for fine frequency resolution |
| Operating Temperature Range | -40°C to +85°C (Commercial extended temperature grade) |
| Supply Voltage | Core: 1.3 V; Digital IO: 1.8 V; RF Auxiliary: 3.3 V |
| Max TX Output Power | -10 dBm Typical per transmit channel |
| RX Input Dynamic Range | -95 dBm ~ 0 dBm receive signal input range |
| PLL Reference Clock Range | 10 MHz ~ 80 MHz external reference input frequency |
| Typical Supply Current | RX Mode: 270 mA; TX Full Bandwidth Mode: 420 mA |
| Storage Temperature Range | -65°C ~ +125°C |
| Channel-to-Channel Isolation | ≥60 dB isolation between independent RF channels |
Typical Applications
- Software-Defined Radio (SDR) platforms, open-source RF prototyping and USRP transceivers
- Point-to-point microwave communication, wireless backhaul and private data radio links
- Femtocell, picocell and microcell 3G/4G cellular base station infrastructure
- Military tactical radios, electronic countermeasure systems and secure battlefield communication
- UAV long-distance video transmission, perimeter surveillance and electronic intelligence equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Request datasheets, samples, stock checks & bulk quotes via the page inquiry form. We respond within 24 working hours.
Frequently Asked Questions
Q1: Are AD9361BBCZ-REEL parts 100% original genuine?
A: All in-stock units are brand-new original from ADI. Every batch passes strict incoming QC, packed in factory ESD moisture-proof tape & reel to prevent BGA ball oxidation and physical damage.
Q2: What do suffix “Z” and “REEL” mean?
A: “Z” = lead-free & halogen-free RoHS compliant. “REEL” means tape-and-reel packaging, compatible with automated SMT mass production.
Q3: What digital interfaces work with FPGA/baseband processors?
A: Two switchable dual-port interfaces: parallel CMOS for low-cost low-speed designs; LVDS differential interface recommended for full 56 MHz bandwidth, which reduces EMI and transmission noise.
Q4: How can I get PCB CAD files and bulk pricing?
A: Submit your project specs and order quantity via the inquiry form. Our RF engineering team will send official CAD resources and tiered bulk prices within 24 hours.
Q5: What is the MOQ & lead time for AD9361BBCZ-REEL?
A: MOQ is 1 piece for spot stock orders. Spot goods ship within 1–2 working days, global delivery takes 3–7 days via DHL/UPS/FedEx.
