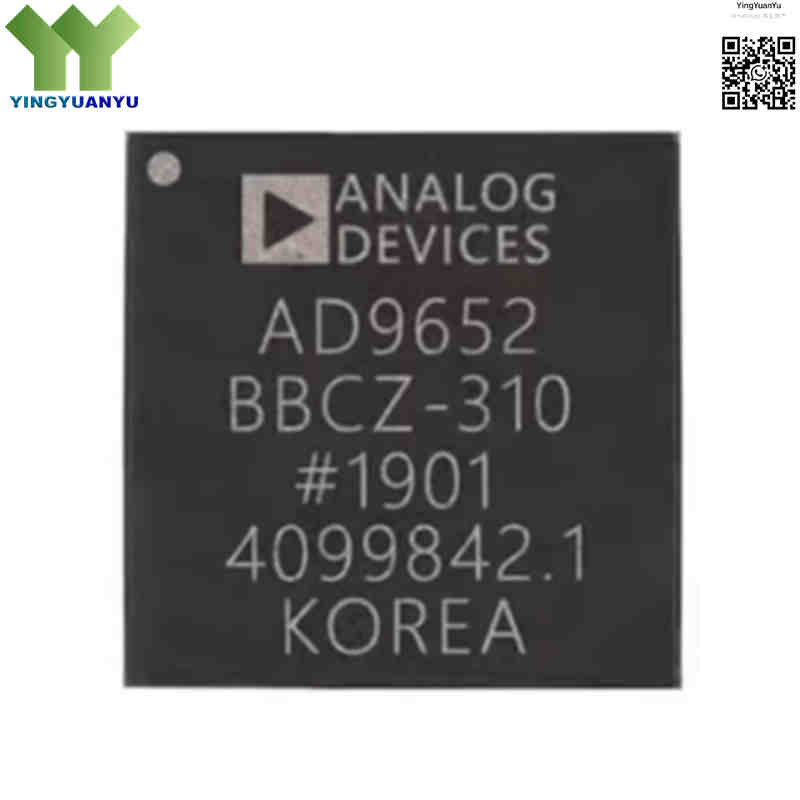

AD9652BBCZ-310
AD9652BBCZ-310
| Part Number | AD9652BBCZ-310 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Data Acquisition – Analog to Digital Converters (ADC) |
| Description | Dual, 16-Bit, 310 MSPS Analog-to-Digital Converter (ADC) featuring an integrated wideband input buffer, exceptional dynamic performance, and DDR LVDS digital outputs. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9652BBCZ-310 is a premium-tier, dual-channel, 16-bit monolithic Analog-to-Digital Converter (ADC) designed by Analog Devices Inc., operating at a high-speed conversion rate up to 310 MSPS (Mega Samples Per Second). Engineered specifically to handle complex high-frequency and wide dynamic range signals, it features an on-chip differential wideband input buffer that ensures optimal input impedance matching and linear compliance up to 465 MHz full-power bandwidth. The device achieves outstanding spurious-free dynamic range (SFDR) and signal-to-noise ratio (SNR) specifications, enabling high-resolution signal capture for radar, communications, and instrumentation applications. It operates from 1.8 V and 3.3 V supplies, with a total power consumption of 2.16 W, and supports DDR LVDS outputs for high-speed data transfer.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Packaging) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Resolution | 16-Bit Dual Channel |
| Sampling Rate | Up to 310 MSPS |
| Input Bandwidth | 465 MHz Full-Power Bandwidth |
| Supply Voltages | 1.8 V (Core/CLK) + 3.3 V (Buffer) |
| Power Consumption | 2.16 W (Typical) |
| Output Interface | DDR LVDS (ANSI-644 Levels) |
| Package / Case | CSPBGA-144 (10×10 mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | AD9652BBCZ-310 Marking |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Thermal Specification) |
Typical Applications
- Advanced Military Radar Systems, Phased Array Receiver Beams, and Electronic Countermeasures (ECM)
- Diversity Software-Defined Radio (SDR) Receivers and Wideband Telecommunication Infrastructure
- Multi-Carrier, Multi-Mode Wireless Cellular Base Stations (LTE, W-CDMA, TD-SCDMA)
- High-Speed Electronic Test Equipment, Signal Analyzers, and Digital Oscilloscope Backends
- Ultrasound Medical Imaging Systems and Non-Destructive Industrial Testing Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock inventory of the AD9652BBCZ-310 fully genuine and factory-new?
A: Yes, we guarantee that all AD9652BBCZ-310 units in our stock are 100% brand-new, authentic factory-original components from Analog Devices, strictly stored under static-shielded ESD and moisture-controlled conditions.
Q2: What do the individual designators within the part suffix “BBCZ-310” mean?
A: “BB” = device configuration/grade; “C” = 144-ball CSPBGA package; “Z” = lead-free/RoHS compliant; “-310” = maximum sampling frequency of 310 MSPS. Temperature range is -40°C to +85°C (industrial grade).
Q3: What are the main system advantages of utilizing DDR LVDS digital outputs?
A: DDR LVDS provides high-bandwidth data streaming to match the 310 MSPS rate with minimal signal propagation delay. Because it relies on low-voltage differential signaling, it drastically limits EMI and digital switching noise on the PCB board, preserving the sensitive performance of neighboring analog RF circuits.
Q4: How can our engineering group request full SPI register configuration maps, layout guidelines, or volume tier prices?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
