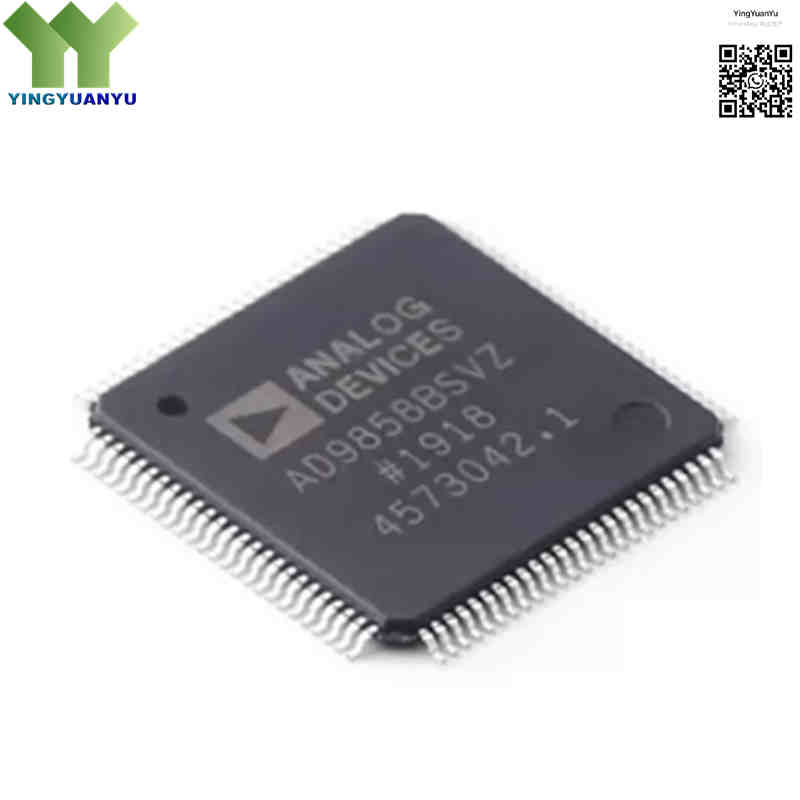

AD9858BSVZ
AD9858BSVZ
| Part Number | AD9858BSVZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Clock/Timing – Direct Digital Synthesis (DDS) |
| Description | 1 GSPS Direct Digital Synthesizer (DDS) with 10‑Bit DAC, On‑Chip Phase Frequency Detector (PFD), Charge Pump, Analog Mixer and Programmable Frequency Divider, 100‑Pin TQFP‑EP Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9858BSVZ is a high‑integrated DDS chip from Analog Devices, supporting 1 GSPS internal clock and up to 2 GHz external reference clock with divide‑by‑2 function. Equipped with 10‑bit DAC, it outputs analog signals up to 400 MHz. Integrated PFD, charge pump, dividers and analog mixer for hybrid DDS/PLL design. Suitable for radar, RF test instruments, wireless infrastructure and satellite communication terminals.
Core Advantages
1 GSPS High‑Speed DDS Core
32‑bit frequency tuning word delivers sub‑Hertz resolution and fast frequency hopping for high‑frequency signal generation.
Complete On‑Chip Synthesizer Modules
Built‑in PFD, charge pump, dividers and analog mixer, convenient for hybrid DDS/PLL system development.
Excellent RF Signal Performance
10‑bit DAC provides good SFDR and low phase noise, satisfying military RF and test‑measurement requirements.
Dual Programming Interfaces
8‑bit parallel bus and SPI serial interface support quick frequency switching for frequency‑agile applications.
Key Specifications
| Brand | Analog Devices (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 100‑Pin TQFP_EP (14×14 mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | AD9858BSVZ / ADI Logo |
| Maximum Internal System Clock | 1.0 GHz (1 GSPS); External reference clock up to 2 GHz (divide‑by‑2) |
| Resolution | 32‑Bit Frequency Resolution / 14‑Bit Phase Resolution |
| Internal DAC Resolution | 10‑Bit High‑Speed DAC |
| Integrated Peripherals | Phase Frequency Detector (PFD), Charge Pump, Programmable Dividers, On‑Chip Analog Mixer |
| Control Interface | Parallel (8‑Bit Bus) and Serial (SPI) Modes |
| Supply Voltage | 3.3 V nominal (3.14 V ~ 3.47 V); Charge pump supports 5 V supply |
| Typical Power Dissipation | 2 W (Typical) |
| Operating Temperature Range | ‑40°C to +85°C (Industrial Grade) |
| Output Frequency Range | DC ~ 400 MHz |
Typical Applications
- Agile Local Oscillator (LO) Frequency Synthesis for Radar and Electronic Warfare (EW)
- RF Test and Measurement Instrumentation, Signal Generators, and Spectrum Analyzers
- Wireless Infrastructure, Cellular Base Stations, and Point‑to‑Point Microwave Links
- Satellite Communications (SATCOM) Ground Terminals and Up/Down Converters
- Acousto‑Optic Device Drivers, Medical Imaging, and Clock Generation Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the maximum clock frequency of AD9858BSVZ?
A: Internal clock up to 1 GSPS(1 GHz). External reference clock supports max 2 GHz via internal divide‑by‑2 circuit.
Q2: What peripherals are integrated inside AD9858BSVZ?
A: It integrates PFD, charge pump, programmable dividers and analog mixer, for hybrid DDS/PLL system design.
Q3: What is the operating supply voltage?
A: Main chip runs at 3.3V (3.14‑3.47V), no 1.8V core supply. Charge pump supports 5V input.
Q4: Difference between AD9858BSV and AD9858BSVZ?
A: AD9858BSV is tin‑lead version; suffix Z stands for RoHS lead‑free. Same die and pinout, pin‑to‑pin compatible.
Q5: What are alternative compatible DDS parts?
A: AD9854 is lower‑speed DDS alternative. AD9910 is higher‑performance upgrade, but different package and power, cannot drop‑in replace directly, hardware modification required.
Q6: Must AD9858BSVZ use an external VCO?
A: No, it can work as standalone DDS. PFD and charge pump are only used for DDS+PLL loop with external VCO.
Q7: How to get datasheet, evaluation board info or bulk quotation?
A: Please submit request via Quick Inquiry form for datasheet, register docs, eval‑board information and volume price.
