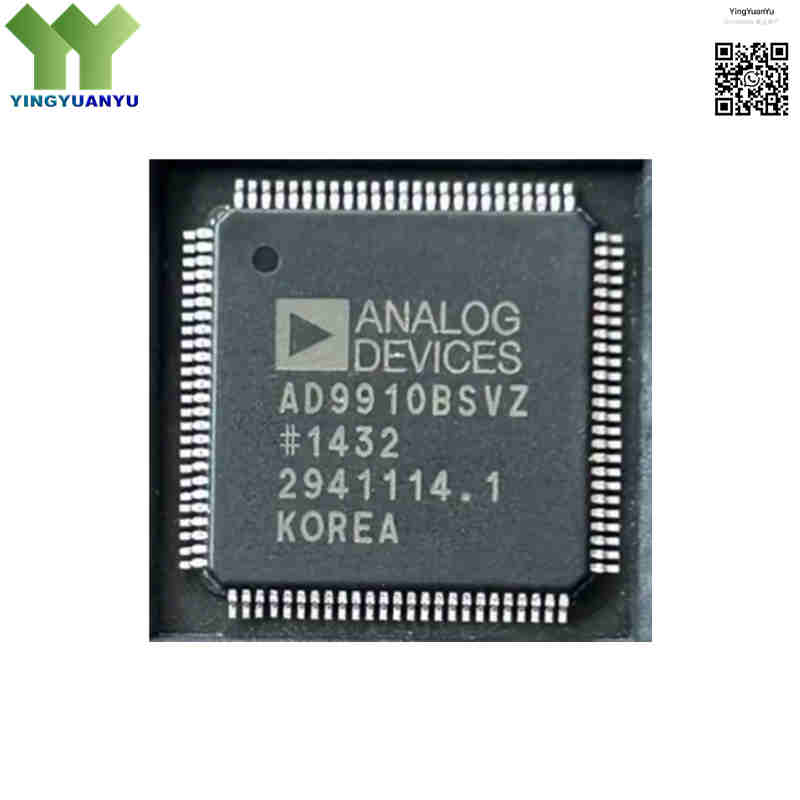

AD9910BSVZ-REEL
AD9910BSVZ-REEL
| Part Number | AD9910BSVZ-REEL |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Interface – Direct Digital Synthesis (DDS) |
| Description | 14-bit, 1 GSPS Direct Digital Synthesizer (DDS) with an integrated 14-bit DAC, featuring exceptional dynamic performance, ultra-fast frequency tuning, and flexible modulation controls in a 100-lead TQFP_EP package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AD9910BSVZ-REEL is a high-speed 14-bit DDS from Analog Devices with integrated 14-bit DAC supporting up to 1 GSPS clock. Built for radar, military communication and precision test instruments, it adopts 32-bit FTW, 14-bit phase & amplitude control, and on-chip RAM for FSK/chirp modulation. Packaged in thermally enhanced 100-lead TQFP_EP tape-and-reel form, it delivers high spectral purity RF signals up to 400 MHz.
Core Advantages
1 GSPS Sampling and Advanced 14-Bit DAC
1GSPS high sampling rate paired with 14-bit DAC outputs clean RF signals up to 400 MHz with excellent SFDR and low noise floor.
Ultra-Precise 32-Bit Frequency Resolution
32-bit phase accumulator achieves sub-Hz tuning step (~0.232 Hz@1GSPS) for accurate carrier frequency alignment.
On-Chip High-Speed RAM Modulation Hub
Internal SRAM supports custom chirp, FSK, ASK and BPSK modulation without extra main controller load.
Fast Parallel and Serial Interfacing Profiles
16-bit parallel bus + 4-wire SPI dual interfaces enable fast frequency hopping and simple hardware wiring.
Key Specifications
| Brand | Analog Devices Ultra-High-Speed Agile DDS Core Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Halogen-Free Materials Sourced (“Z” Suffix Certified) |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 100-TQFP_EP (14mm × 14mm × 0.50mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead Reflow Solder Assembly) |
| Surface Marking / Silkscreen | AD9910BSVZ Marking |
| Maximum Core Clock Speed | 1.0 GSPS (Giga-Samples Per Second) Internal Synthesis Bounds |
| Max Analog Output Frequency | Up to 400 MHz Continuous RF Analog Output |
| Reference Clock Input Range | 10 MHz ~ 1 GHz External Reference Clock Input Support |
| On-Chip RAM Capacity | 1024 × 32-bit Internal Modulation Profile SRAM |
| Frequency Step Resolution | ≈0.232 Hz Minimum Tuning Step at 1 GSPS System Clock |
| Digital Interface Type | 16-bit Parallel Bus + 4-Wire SPI Serial Communication Interface |
| Internal DAC Resolution | 14-Bit Matched Precision Digital-to-Analog Output Resolution |
| Frequency Tuning Word (FTW) | 32-Bit Phase Accumulator Word Depth (Sub-Hertz Incremental Steps) |
| Phase / Amplitude Controls | 14-Bit Programmable Phase Offset; 14-Bit Digital Amplitude Scaling Factor |
| Integrated Modulation Types | Linear Chirp / Sweeps, FSK, BPSK, ASK, QAM Waveform Modulation Arrays via internal RAM profiles |
| Spurious-Free Dynamic Range (SFDR) | Typical > 80 dBc narrowband SFDR; > 60 dBc wideband SFDR at 1 GSPS, max 400 MHz continuous Analog Outputs |
| Core Power Supply Voltage | 1.8V Digital Core and Analog Core Voltage rails combined with 3.3V I/O IO interfaces |
| Operating Temperature Range | -40°C to +85°C (Extended Commercial / Rugged Industrial Temperature Grade) |
Typical Applications
- Agile Local Oscillators (LOs) in Military Radar Systems, Jamming Countermeasures, and Sonar Engines
- High-Speed Frequency Chirp Waveform Generators for Synthetic Aperture Radar (SAR) Mapping
- Automated RF Electronic Test Instrumentation, Oscilloscope Calibration Grids, and Signal Simulators
- Secure Software-Defined Radio (SDR), Military Fast-Frequency Hopping Communications, and Transceivers
- Synchronous Clock Generation, High-Purity Quantum Computing Timing Triggers, and Magnetic Resonance Spectroscopy
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit datasheet requests, sample demands, stock or bulk price inquiries via our Quick Inquiry form. We reply within 24 hours.
Frequently Asked Questions
Q1: Are AD9910BSVZ-REEL chips 100% authentic factory original?
A1: Yes. All stock is brand-new genuine ADI original parts with strict incoming quality inspection and ESD-compliant dry tape & reel packaging to avoid pin damage and oxidation.
Q2: What function does the EP exposed pad of TQFP package serve?
A2: The EP pad connects to the internal die for low thermal resistance heat dissipation. Fully solder it to PCB copper ground plane to keep the chip within safe working temperature range under 1GSPS operation.
Q3: What do suffix “Z” and “REEL” stand for?
A3: “Z” means lead-free, RoHS & halogen-free matte tin finish; “REEL” refers to tape-and-reel packaging for automatic SMT pick-and-place machines.
Q4: How to get full register programming documents and volume tier pricing?
A4: Fill in the Quick Inquiry form on this page with your project specs and order quantity. Our RF technical team will send official datasheets and customized bulk price within 24 hours.
