ADIS16505-2BMLZ

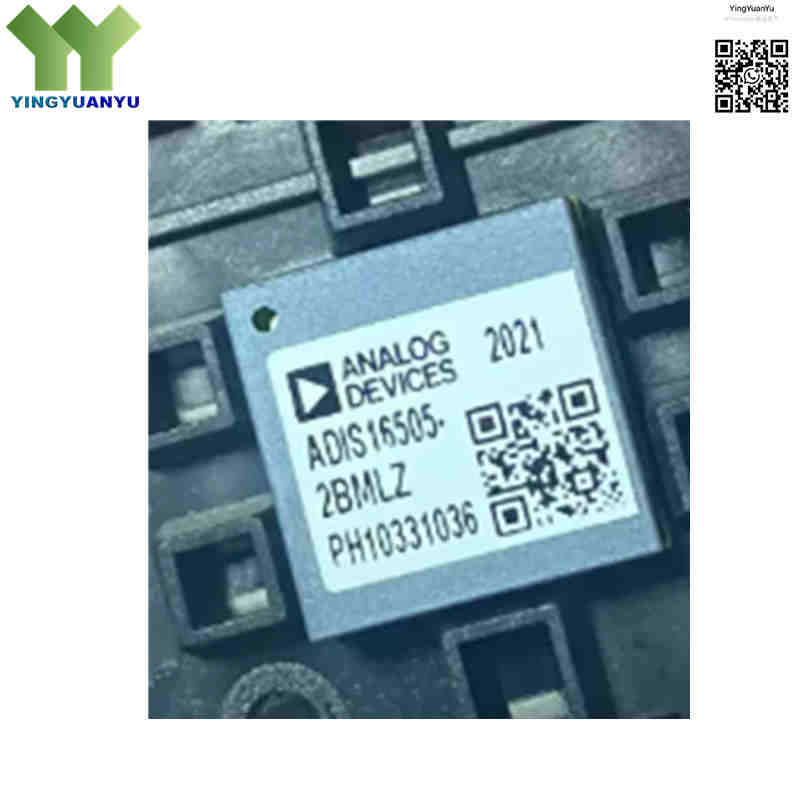

ADIS16505‑2BMLZ
| Part Number | ADIS16505-2BMLZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Sensors, Transducers > Inertial Measurement Units (IMUs) |
| Description | Precision 6‑DoF MEMS Inertial Measurement Unit (IMU), ±500°/sec Gyro, ±8g Accel, SPI Interface, 100‑Ball BGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADIS16505‑2BMLZ is a compact high‑precision 6‑DoF MEMS IMU from ADI, integrating tri‑axis gyroscope and tri‑axis accelerometer for angular‑rate and acceleration measurement. Factory‑calibrated for bias, sensitivity and axis‑alignment, it guarantees calibrated accuracy from ‑40℃ to +85℃ (operating range ‑40℃~+105℃). Fully compensated motion data is output over SPI, ideal for unmanned systems, robotics and precision navigation.
Core Advantages
Factory‑Calibrated Performance
Individually factory‑calibrated, eliminating complex system‑level calibration for end‑application.
Low‑Drift Sensing Performance
Typical gyro bias instability 2.3°/hr and low angular random walk, delivering reliable dead‑reckoning and attitude solution.
Harsh‑Environment Resilience
Built‑in digital filtering, self‑test and linear‑g compensation, performs well under high‑vibration conditions.
Miniaturized BGA Module
100‑ball BGA module (15 mm × 15 mm × 5.72 mm), saves PCB space for compact embedded devices.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free (“Z” designation) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 100‑Ball BGA (15 mm × 15 mm × 5.72 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | ADIS16505‑2BMLZ / ADI Logo |
| Sensor Type | 6‑DoF Inertial Measurement Unit (IMU) |
| Gyroscope Dynamic Range | ±500 °/sec |
| Accelerometer Dynamic Range | ±8 g |
| Gyroscope In‑Run Bias Instability | 2.3 °/hr (Typical) |
| Angular Random Walk | 0.13 °/√hr (Typical) |
| Axis Misalignment Error | ±0.25° (Typical) |
| Accelerometer Bias Instability | 26.5 μg (x/y‑axis, Typical) |
| Digital Interface | SPI (Serial Peripheral Interface) |
| Data Resolution | 16‑bit / 32‑bit configurable (Burst mode) |
| Operating Voltage | 3.0 V to 3.6 V (3.3 V Nominal) |
| Typical Supply Current | 44 mA |
| Operating Temperature | -40°C to +105°C (Extended Industrial Grade) |
| Calibrated Temperature Range | -40°C ~ +85°C |
| Shock Resistance | 14700 m/s² (1500 g) |
Typical Applications
- Precision Antenna, Camera, and Platform Stabilization Systems
- Unmanned Aerial Vehicles (UAVs), Drones, and Autonomous Underwater Vehicles (AUVs)
- Robotic Navigation, AGVs, and Automated Farm Machinery
- GPS/GNSS Aided Navigation and Dead‑Reckoning Systems
- Structural Health Monitoring, Vibration Analysis, and Heavy Machinery Control
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “-2” suffix mean for ADIS16505‑2BMLZ?
A: “-2” = gyro range ±500°/sec. Series variants:‑1(±125°/sec),‑3(±2000°/sec).
Q2: Is extra calibration required before using?
A: No. Factory‑calibrated ‑40℃~+85℃. Device works up to +105℃, but calibration accuracy is not guaranteed above +85℃.
Q3: What communication interface does this IMU use?
A: Standard SPI (CPOL=1, CPHA=1). Supports burst‑mode data read and register configuration.
Q4: What are compatible or alternative part numbers?
A: Pin‑to‑pin alternatives: ADIS16505‑1BMLZ、ADIS16505‑3BMLZ. Performance upgrade: ADIS16507 series. Cost‑effective option: ADIS16477 series (not pin‑compatible).
Q5: What do suffix letters BMLZ stand for?
A: B=revision; ML=100‑Ball BGA module; Z=RoHS lead‑free finish. No other package options for ADIS16505 series.
Q6: Is ADIS16505‑2BMLZ pin‑compatible with ADIS16477?
A: Not pin‑to‑pin compatible. Similar footprint, but pin definition & register mapping differ. Hardware and firmware modification are needed for replacement.
Q7: How to get datasheet, CAD files and bulk quotation?
A: Submit Quick Inquiry for datasheet, CAD footprint, stock status and volume pricing.
