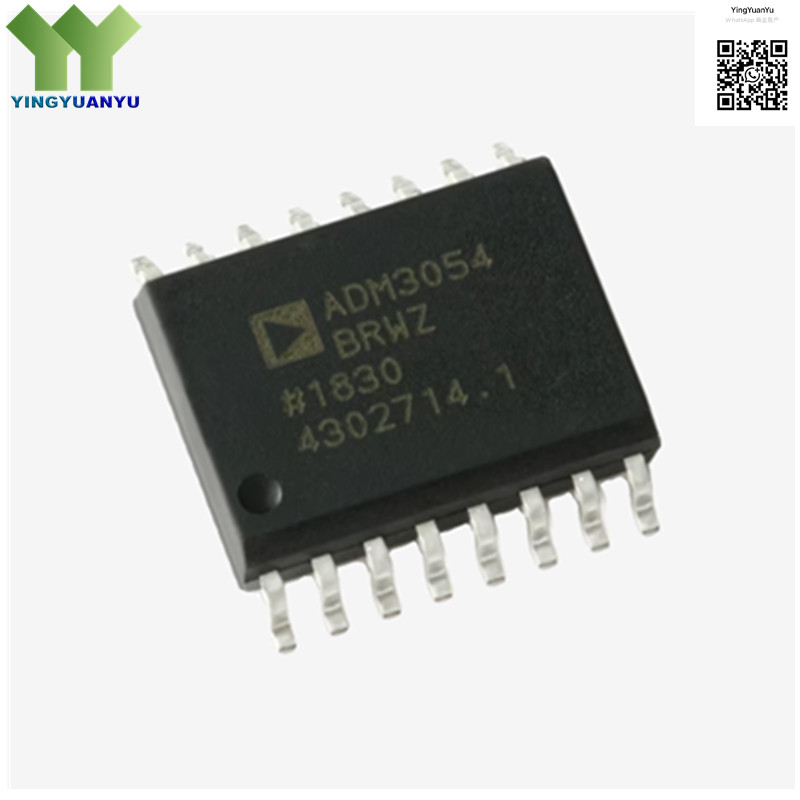

ADM3054BRWZ-RL7
ADM3054BRWZ-RL7
| Part Number | ADM3054BRWZ-RL7 |
|---|---|
| Manufacturer | Analog Devices |
| Category | CAN Transceivers; Isolated CAN Bus Transceiver |
| Description | 5kV Isolated CAN Bus Transceiver, 3.3V, CAN 2.0B, IEC 61000-4-2 ESD Protected, SOIC-16 Wide Package |
Product Overview
The ADM3054BRWZ-RL7 is a fully integrated, isolated CAN bus transceiver with built-in galvanic isolation (5kV rms) and 3.3V operation. It combines a CAN protocol controller interface, isolated signal path, and CAN bus driver in a single device, eliminating external isolation components. The transceiver supports CAN 2.0B data rates up to 1Mbps, offers high ESD protection, thermal shutdown, and bus fault protection, ensuring reliable communication in noisy industrial and automotive environments. Housed in a wide-body SOIC-16 surface-mount package, it provides compact, robust isolated CAN connectivity for safety-critical and high-voltage systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Analog Devices |
| Isolation Voltage | 5kV RMS |
| Data Rate | Up to 1 Mbps |
| Supply Voltage | 3.3V Single Supply |
| Package Type | SOIC-16 Wide Body (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Industrial Automation CAN Bus Networks
- Automotive Isolated CAN Communication
- Motor Drives & Inverter Control Systems
- High-Voltage Industrial Sensor Interfaces
- Power Electronics & Battery Management Systems
- Robotics & Factory Automation
- Medical Equipment CAN Bus Isolation
- Fieldbus & Harsh-Environment Communication
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
