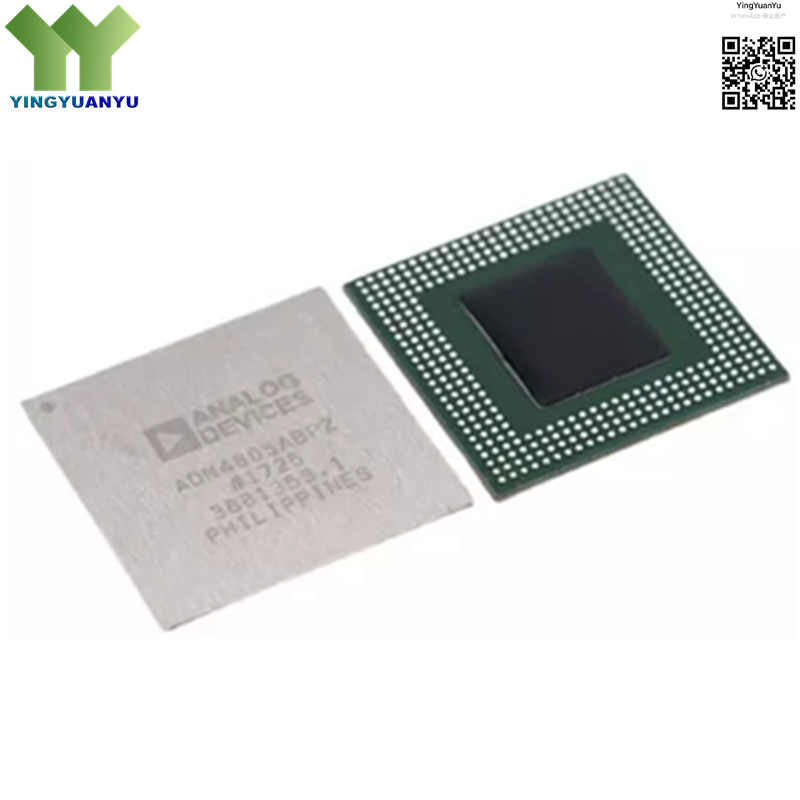

ADN4605ABPZ
ADN4605ABPZ
| Part Number | ADN4605ABPZ |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Interface – Analog Switches, Multiplexers, Demultiplexers |
| Description | 4.25 Gbps, 40 × 40 Asynchronous Crosspoint Switch with programmable input equalization, output pre-emphasis, and nonblocking routing architecture. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADN4605ABPZ is a high-performance 40 × 40 asynchronous, nonblocking digital crosspoint switch from Analog Devices Inc. It supports data rates up to 4.25 Gbps per channel, ideal for high-speed protocol-agnostic backplane routing, multi-lane network and optical transport systems. Featuring a fully nonblocking matrix, it routes any input to any output via unicast or broadcast with low crosstalk and signal skew. Integrated programmable input equalization and output pre-emphasis compensate for signal loss on long PCB traces and copper links. Controlled via I2C and SPI interfaces, this low-jitter switch is widely used in digital video broadcast, radar telemetry, high-bandwidth server systems and automated test equipment.
Core Advantages
Massive 40 × 40 High-Speed Routing Array
Provides an expansive, entirely nonblocking physical crossbar topology capable of routing 40 distinct input streams up to 4.25 Gbps to 40 output channels concurrently, simplifying large backplane interconnect topologies.
Advanced High-Frequency Signal Conditioning
Houses sophisticated input equalization and adjustable output pre-emphasis engines that effectively reconstruct distorted eye diagrams over long, lossy FR4 printed circuit layouts or external copper cabling links.
Ultra-Low Deterministic and Random Jitter
Engineered with highly precise core differential routing lanes that maintain exceptional signal fidelity and minimal additive jitter, guaranteeing error-free data compliance across high-volume networking backbones.
Highly Flexible Programming & Diagnostic Peripherals
Integrates dual multi-master control paths alongside built-in diagnostic test pattern generators and signal loss detection monitors, allowing software firmware to actively supervise real-time physical-layer performance.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Suffix Packaging) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | BGA-352 (27×27 mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | ADN4605ABPZ Marking |
| Switch Architecture Type | Asynchronous, Nonblocking Digital Crosspoint Matrix |
| Channel Array Scale | 40 Input Channels to 40 Output Channels (40 × 40 Layout) |
| Maximum Data Throughput Rate | 4.25 Gbps per channel NRZ encoding compliance |
| Signal Control Parameters | Programmable Input Equalization & Transmit Pre-Emphasis (Multi-Step adjustments) |
| System Control Interface | I²C and SPI Serial Control Interfaces |
| Differential Signal Type | Current Mode Logic (CML) Differential Input/Output |
| Typical Supply Rails Required | 1.2V Core Supply, 2.5V I/O Supply |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Thermal Specification Window) |
Typical Applications
- Digital Video Broadcast Control Rooms, SDI Matrix Switchers, and High-Definition Studio Routers
- High-Speed Telecommunications Fiber Transport Networks and Multi-Lane Data Aggregators
- Enterprise-Grade Cloud Data Center Server Backplane Extensions and Storage Area Networks (SAN)
- Automated Electronic Testing Platforms, High-Frequency Logic Emulators, and Protocol Analyzers
- Military Phased Array Radar Communication Channels, Sonar Interfaces, and Remote Guidance Nodes
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock inventory of the ADN4605ABPZ completely original and authentic?
A: Yes, we guarantee that all ADN4605ABPZ components in our inventory are 100% brand-new, factory-original products from Analog Devices Inc., stored and handled under strict anti-static ESD shielding guidelines.
Q2: What performance advantages does an asynchronous crosspoint design offer over a synchronous layout?
A: An asynchronous switch architecture executes purely physical-layer data re-routing without buffering data packets or utilizing a centralized global system clock tracking domain. This provides near-zero propagation delay, eliminates clock-domain distribution mismatches, and allows the chip to run completely protocol-agnostically with different signal rates on adjacent ports.
Q3: How does programmable input equalization enhance signal reliability inside dense server racks?
A: High-frequency digital signals fade significantly when moving through lengthy copper cables or multi-layer PCB boards. The ADN4605ABPZ input equalization filters boost high-frequency components, smoothing inter-symbol interference (ISI) and expanding the open signal eye for the internal logic receiver matrix.
Q4: How can our development group obtain specific register programming software files, signal integration guidelines, or volume wholesale quotations?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
