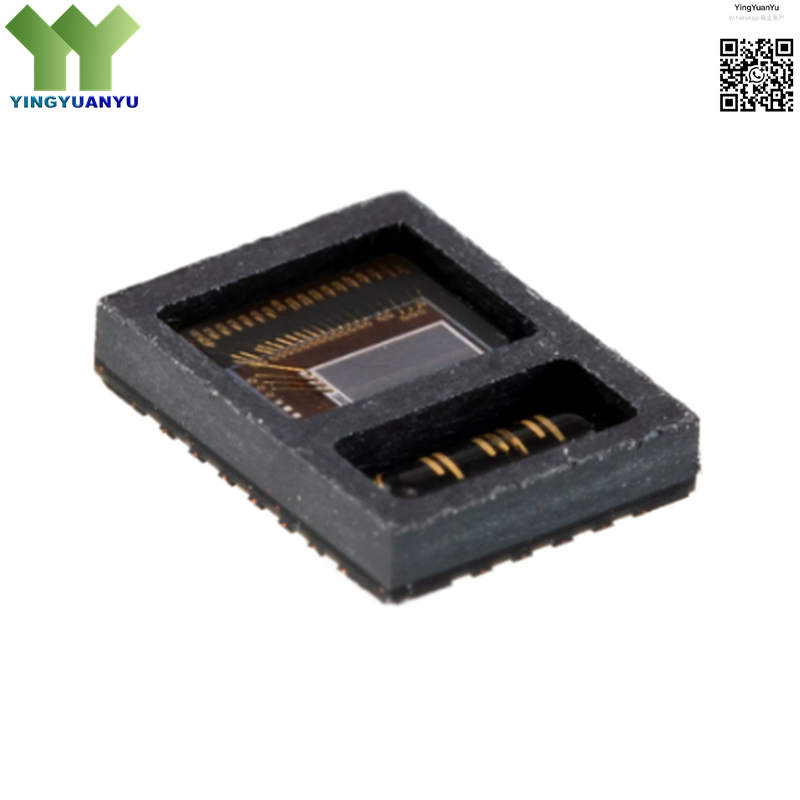

ADPD188BI-ACEZR7
ADPD188BI-ACEZR7
| Part Number | ADPD188BI-ACEZR7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Category | Optical Sensors; Smoke & Dust Detector Modules; Optical Measurement Sensors |
| Description | Integrated Optical Module for Smoke Detection, Dual Wavelength, Low Power,Photosensitive ability 13klx, LGA-24-CAV(3.8×5) Package |
Product Overview
The ADPD188BI-ACEZR7 is a fully integrated optical sensor module from Analog Devices, specifically designed for high-performance smoke and dust detection applications. It integrates a photometric front end, dual-wavelength LEDs, photodiodes, and signal processing circuitry in a single compact package. The module delivers ultra-low power consumption, high sensitivity, excellent ambient light rejection, and reliable detection performance, making it ideal for smart smoke detectors, fire alarms, air quality monitors, and industrial safety systems.
| Key Specifications | |
|---|---|
| Brand | Analog Devices Inc. |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LGA-24-CAV(3.8x5mm) Package |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | ADPD188BI-ACEZR7 Marking |
| Sensor Type | Integrated Optical Smoke Detection Module |
| Operating Voltage | 1.7V to 3.6V |
| Interface | I2C Serial Interface |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Smart Smoke Detectors & Fire Alarm Systems
- Indoor Air Quality Monitoring Devices
- Home Safety & Security Systems
- Industrial Dust & Particle Detection
- HVAC Air Quality Sensors
- IoT Environmental Monitoring Modules
Professional Safety & Detection Equipment
- Battery-Powered Portable Detectors
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
