ADS7864Y/2K
ADS7864Y/2K
| Part Number | ADS7864Y/2K |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits (ICs) > Data Acquisition > Analog to Digital Converters (ADC) |
| Description | 12‑Bit 500kSPS, 3‑Pair Simultaneous Sampling ADC, Parallel Interface, 48‑TQFP, Tape & Reel 2000pcs. |
| Stock Status | In Stock |
| Origin | Original Factory |
| Lifecycle Status | Active |
Product Overview
The ADS7864Y/2K is a 12‑bit SAR simultaneous‑sampling ADC from TI. It features 6 fully‑differential inputs in 3 sampling pairs, 500 kSPS per‑channel parallel output, built‑in 2.5V reference. Suitable for 3‑phase motor control, UPS and power monitoring. “/2K” stands for 2000‑piece tape‑and‑reel package.
Core Advantages
Three‑Pair Simultaneous Differential Sampling
Six differential inputs for synchronous multi‑phase measurement with zero phase skew.
500kSPS & 12‑Bit No‑Missing‑Codes
500 kSPS per‑channel rate, reliable for industrial dynamic signal acquisition.
High On‑Chip Integration
Integrated 2.5V reference reduces external components and PCB footprint.
Parallel Interface & Wide IO Compatibility
True parallel interface (not SPI). 2.7V‑5.25V IO, works with 3.3V / 5V MCU, DSP and FPGA.
Key Specifications
| Brand | Texas Instruments (TI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 48‑TQFP (7×7 mm, 0.5 mm pitch) |
| Packaging Type | Tape & Reel (TR) ‑ 2,000 units (/2K suffix) |
| Mounting Type | Surface Mount (SMD / SMT) |

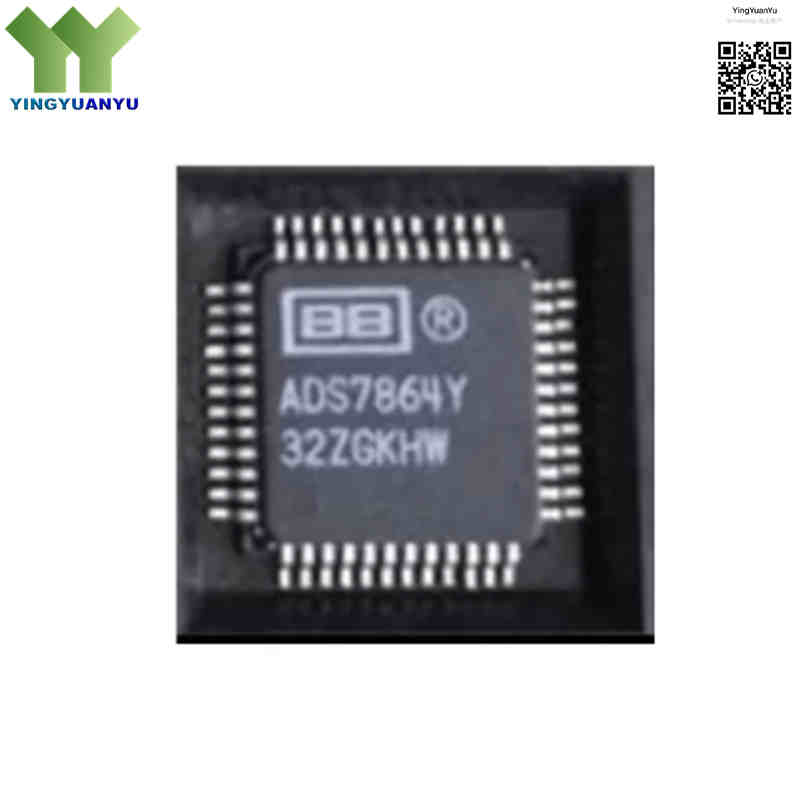

| Surface Marking / Silkscreen | ADS7864Y / BB Logo |
| Architecture | SAR (Successive Approximation Register) |
| Resolution | 12 Bits, no missing codes |
| Sampling Rate | 500 kSPS (per channel) |
| Number of Input Channels | 6 fully differential inputs, 3 pairs simultaneous sampling |
| Analog Supply Voltage (AVDD) | 4.75 V ~ 5.25 V, Nominal 5.0 V |
| Digital Supply Voltage (BVDD) | 2.7 V to 5.25 V |
| Internal Reference | 2.5 V on‑chip reference, external reference 1.2‑2.6 V optional |
| Power Consumption | Typical 50 mW |
| Data Interface | Parallel (Not SPI) |
| Operating Temperature | -40°C to +85°C (Industrial Grade) |
Typical Applications
- 3‑Phase AC Motor Control and Inverter Systems
- Uninterruptible Power Supplies (UPS) and Power Quality Monitoring
- Multi‑Axis Industrial Automation and Motion Control
- Data Acquisition Systems (DAQ) Requiring Simultaneous Channel Sampling
- Grid Protection Relays and Smart Energy Distribution Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “/2K” suffix mean for ADS7864Y/2K?
A: “/2K” is 2000‑piece tape‑and‑reel. The /250 suffix is 250‑piece reel. Same chip, only reel quantity differs.
Q2: Difference between ADS7864Y and ADS7864B?
A: ADS7864Y: industrial grade ‑40℃~+85℃. ADS7864B: commercial grade 0℃~+70℃. Pin‑compatible, cannot cross‑grade replace for low‑temp industrial applications.
Q3: Is ADS7864Y/2K SPI interface?
A: No, it uses true parallel interface. Some platforms mislabel as SPI, signal pins include /CS, /RD, /HOLDX, BUSY and 12‑bit data bus.
Q4: Why simultaneous sampling matters for motor control?
A: Captures multi‑phase voltage and current at the same instant, eliminates channel phase skew for accurate motor vector control.
Q5: What are pin‑to‑pin compatible alternatives?
A: ADS7864I shares identical pinout. ADS7865 is higher‑speed version with same package and parallel interface for power acquisition.
Q6: How to get datasheet, CAD files or bulk price?
A: Submit via Quick Inquiry for original datasheet, PCB footprint, real‑time stock and volume quotation.
