ADSP-TS101SAB1Z000
ADSP-TS101SAB1Z000
| Part Number | ADSP-TS101SAB1Z000 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Embedded – DSP (Digital Signal Processors) |
| Description | TigerSHARC High-Performance Static Superscalar (SISD/SIMD) Digital Signal Processor, 6Mbit (768KB) On-Chip SRAM, 300MHz Clock Speed, 625-Ball PBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADSP-TS101SAB1Z000 is a high-performance 32-bit floating-point DSP under ADI TigerSHARC series. It adopts static superscalar architecture supporting SISD & SIMD parallel execution, running at 300MHz core frequency for high-speed FFT and matrix operation. Equipped with 6Mbit independent block SRAM to eliminate memory access bottlenecks, this lead-free 625-ball PBGA chip acts as core computing unit for radar, medical imaging and telecom base station signal processing systems.
Core Advantages
TigerSHARC Floating-Point Computing
Supports 32/40-bit floating-point and 8/16/32-bit fixed-point operation, suitable for high-precision signal measurement algorithms.
6Mbit On-Chip SRAM Storage
Multi-group independent wide-bit memory buses reduce external memory access delay during real-time continuous calculation.
4 High-Speed Link Ports for Multi-DSP Cluster
Dedicated point-to-point inter-core communication ports, realizing multi-processor parallel expansion without extra peripheral logic.
Dual Parallel Compute Blocks for SIMD Acceleration
Two independent arithmetic units execute dual groups of data per clock cycle, greatly improving vector processing throughput with balanced power consumption.
Key Specifications
| Part Number | ADSP-TS101SAB1Z000 |
|---|---|
| Brand | Analog Devices (ADI) TigerSHARC Processor Family |
| Category | Integrated Circuits > Digital Signal Processors (DSP/DSC) |
| RoHS Status | RoHS Compliant, Lead-Free 625-ball PBGA (Z suffix lead-free marking) |
| EDA/CAD Model | Pin mapping libraries, BGA landing templates, thermal simulation models available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 625-PBGA (27mm × 27mm × 2.4mm) |
| Mounting Type | Surface Mount SMT |

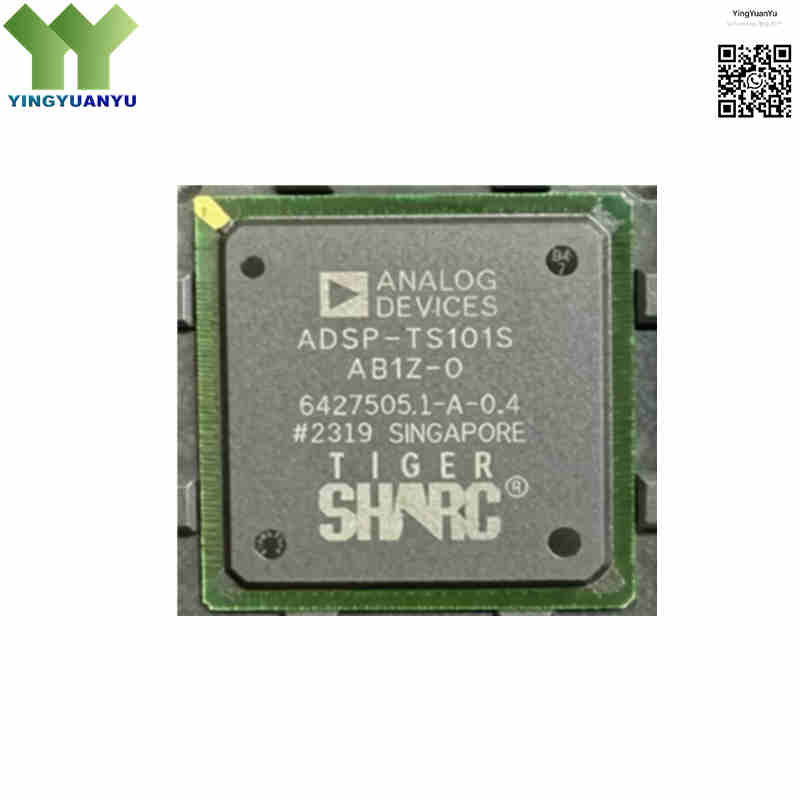

| Surface Marking / Silkscreen | ADSP-TS101SAB1Z-0 Marking |
| Core Architecture | Static Superscalar, Dual Independent Compute Block TigerSHARC Engine |
| Clock Frequency | 300MHz Core Operating Frequency |
| On-Chip SRAM | 6Mbit (768KB) High-Speed Independent Memory Banks |
| Core Supply Voltage (VDD) | 1.2V Nominal Operating Voltage |
| I/O Supply Voltage (VDDIO) | 3.3V External Interface Voltage |
| External System Bus Width | 64-bit Wide Memory Bus |
| Inter-Processor Interface | 4 Bidirectional High-Speed Link Ports with Independent DMA Engines |
| Data Processing Type | 32-bit Floating Point + Fixed Point Arithmetic |
| DMA Channels | 8 Independent Internal DMA Controllers |
| Operating Temperature Range | -40°C to +85°C Industrial Grade |
| Storage Temperature Range | -65°C to +150°C |
| Application Field | Radar, Medical Imaging, Telecom Base Station, Military Communication |
Typical Applications
- Defense phased array radar, sonar signal processing and military communication equipment
- Medical imaging: MRI scanner, 3D ultrasound diagnostic signal processing module
- 4G/5G telecom base station, large-capacity communication switching system
- High-speed optical inspection, automated test equipment (ATE) real-time vision processing
- Seismic geological data analysis, scientific high-precision vector computing equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Ship within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit inquiries for datasheets, free samples, stock check and bulk pricing via our quick inquiry form, we reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix “Z” stand for in ADSP-TS101SAB1Z000?
A1: Z means fully lead-free packaging, compliant with global RoHS standards, shipped in standard trays.
Q2: How do 4 link ports build multi-DSP parallel computing networks?
A2: 4 bidirectional ports support chip-to-chip direct transmission without occupying the 64-bit bus, ideal for multi-processor high-speed computing clusters.
Q3: What benefits come with dual compute block architecture?
A3: Dual arithmetic units run synchronously under SIMD mode, processing double data per cycle and accelerating matrix & vector operations.
Q4: PCB layout tips for 1.2V core power decoupling?
A4: Place 0.01μF & 0.1μF low-ESR ceramic capacitors near BGA pads with short vias to suppress power noise and stabilize signals.
Q5: Is ADSP-TS101SAB1Z000 industrial temperature grade?
A5: Yes, operating temperature range is -40℃ ~ +85℃, suitable for industrial, military and medical equipment.
Q6: Can you provide free samples of this DSP chip?
A6: Free samples are available, submit sample demand via our inquiry form to confirm quantity and lead time.
Q7: What’s the storage temperature limit for this PBGA chip?
A7: Storage temperature ranges from -65℃ to +150℃, avoid high humidity storage to prevent pad oxidation.
Q8: Does this DSP support floating-point calculation?
A8: It supports both 32-bit fixed-point and floating-point arithmetic for complex signal processing tasks.
