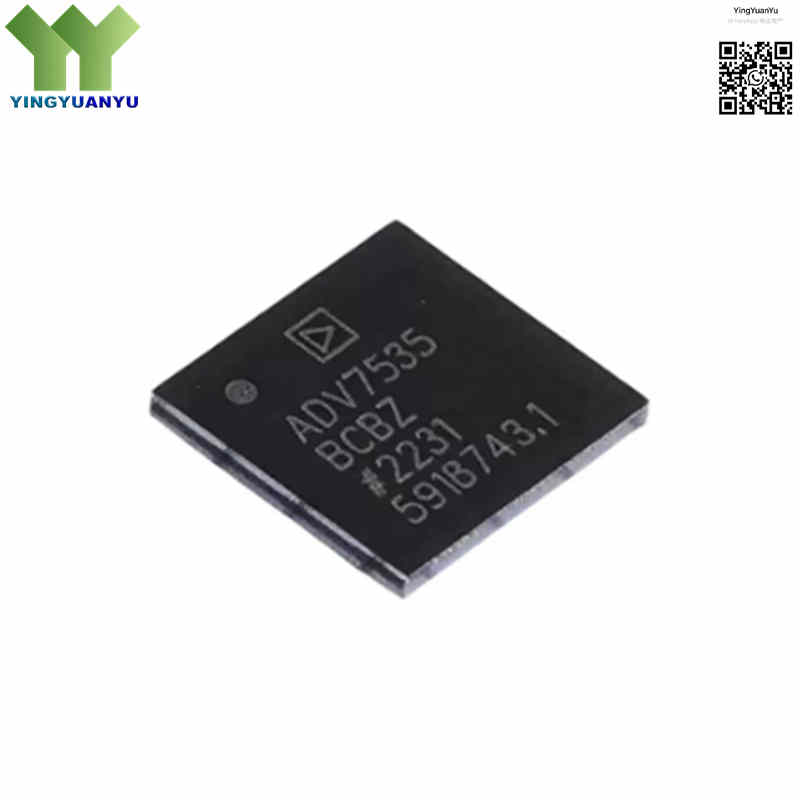

ADV7535BCBZ-RL7
ADV7535BCBZ-RL7
| Part Number | ADV7535BCBZ-RL7 |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Video Interface ICs > MIPI DSI to HDMI Transmitters |
| Description | Low-power high-performance MIPI D-PHY to HDMI transmitter bridge IC, supporting up to 1080p60 resolution, integrated CEC & HDCP 1.3, built-in audio embedding, compact 49-WLCSP (3.46×3.46mm) package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADV7535BCBZ-RL7 is a low-power MIPI DSI to HDMI transmitter IC from Analog Devices. It converts multi-lane MIPI DSI signals (max 4 data lanes, 891Mbps per lane, non-burst mode only) to HDMI 1.4b/DVI 1.0 video output, supporting up to 1080p@60Hz with a 148.5MHz TMDS clock. Integrated HDCP 1.3, CEC engine, multi-channel I²S/SPDIF audio embedding and RGB/YCbCr color conversion circuits simplify peripheral design. Housed in compact 49-ball WLCSP (3.46mm × 3.46mm), it suits mobile, wearable and compact embedded display systems with low thermal dissipation.
Core Advantages
Seamless MIPI DSI to HDMI/DVI Bridging
Natively bridges ultra-fast MIPI DSI outputs standard on modern applications processors directly into standard HDMI v1.4b / DVI v1.0 outputs, bypassing complex FPGA implementations.
Ultra-Compact Form Factor
Utilizes a tiny 49-ball WLCSP 3.46×3.46mm footprint, making it ideal for extremely space-constrained electronics such as smart glasses, portable medical displays, and compact drone modules.
Advanced Integrated Audio Handling
Supports multi-channel $I^2S$ and high-bandwidth S/PDIF digital audio interfaces on dedicated hardware pins, embedding pristine audio into the primary HDMI stream with precise sync tracking.
Low Power Dual-Voltage Architecture
Works with 1.8V core and 3.3V I/O supplies, features aggressive internal clock gating and dynamic sleep-mode management schemes, preventing battery drain in mobile gadgets and ensuring minimal ambient heat signatures.
Built-In HDCP & CEC Functionality
Onboard HDCP 1.3 encryption keys and expanded 3-message CEC buffer eliminate external peripheral chips, reducing overall BOM count for media playback hardware.
Key Specifications
| Brand | Analog Devices Inc. (ADI) Video Interface Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green Manufacturing Standards Qualified |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and WLCSP Footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 49-WLCSP (3.46mm × 3.46mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Ball Reflow) |
| Surface Marking / Silkscreen | ADV7535BCBZ Marking |
| Supply Voltage | Dual 1.8V Core (±5%) / 3.3V I/O (±5%) Single Standard Supply Rail |
| MIPI DSI Lane Count | 1 Clock Lane + Up to 4 Data Lanes |
| Input Bus Protocol | MIPI DSI (Display Serial Interface), max 4 Data Lanes + 1 Clock Lane, only Non-Burst Video Mode Supported, per lane 891Mbps |
| Output Interface Protocol | HDMI v1.4b Transmitter Core, Compatible with DVI v1.0, Embedded HDCP 1.3 Encryption Keys |
| Max TMDS Clock Frequency | 148.5MHz |
| Max Video Resolution | Up to Full HD 1080p @ 60Hz (148.5MHz TMDS Clock) and 3D Video Formatting Modes |
| Integrated Audio Support | Up to 4-Channel I²S Stereo, S/PDIF Linear PCM, or Compressed Audio Bitstreams |
| Control Interface Link | I²C (Two-Wire Serial Bus) for register configuration up to 400 kHz |
| Packaging Presentation | Tape and Reel (RL7 suffix denotes 7-inch reel format holding exactly 1,500 pieces) |
| Operating Temperature Range | -10°C to +85°C (Commercial-Grade Standard Operation Boundaries) |
| Storage Temperature Range | -55°C ~ +125°C |
Typical Applications
- Virtual Reality (VR) Headsets, Augmented Reality (AR) Smart Glasses, and Head-Mounted Displays
- Handheld Medical Diagnostic Equipment, Portable Patient Monitors, and Surgical Cameras
- Action Cameras, Professional Drone Telemetry Monitors, and Gimbal Control Video Feeds
- Compact Single Board Computers (SBCs), Mobile Internet Devices (MIDs)
- Smart Home Security Control Panels, Video Conferencing Endpoints, and Digital Media Streaming Dongles
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is the stocked ADV7535BCBZ-RL7 100% original genuine?
A: All in-stock ADV7535BCBZ-RL7 are brand-new original ADI chips. Each batch passes strict QC and packed with factory ESD moisture-proof tape & reel packaging.
Q2: What’s the core function of ADV7535BCBZ-RL7 in embedded design?
A: It acts as a dedicated hardware bridge, converting MIPI DSI signals from main processors into standard HDMI/DVI output without extra CPU or encryption chips.
Q3: What does the “RL7” suffix stand for?
A: RL7 means 7-inch tape & reel packing, 1500pcs per reel, compatible with automatic SMT pick-and-place machines and protects tiny WLCSP solder balls.
Q4: What operating temperature does this MIPI-HDMI bridge support?
A: Commercial grade range -10°C ~ +85°C; it cannot work under -40°C industrial wide-temperature conditions.
Q5: How to get datasheet and bulk quotation?
A: Fill out the Quick Inquiry form on this page with your project specs and order quantity. Our technical sales team will send full datasheets & custom bulk prices within 24 hours.
