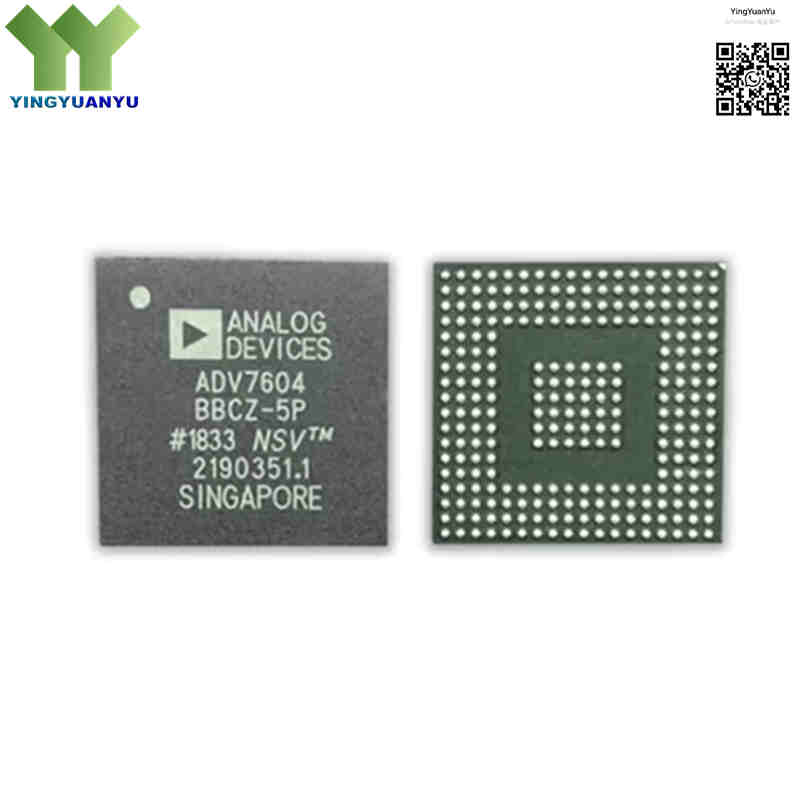

ADV7604BBCZ-5P
ADV7604BBCZ-5P
| Part Number | ADV7604BBCZ-5P |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) |
| Category | Integrated Circuits (ICs) > Interface – Encoders, Decoders, Converters |
| Description | High-performance 4:1 multiplexed HDMI receiver with integrated multi-format video decoder, 12-bit graphics digitizer and pixel processing, designed for commercial AV routing and high-definition display systems. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The ADV7604BBCZ-5P is a highly integrated monolithic video processing IC from Analog Devices. It integrates a 4-port multiplexed HDMI receiver, multi-standard analog video decoder and 4-channel 12-bit graphics ADC on a single chip. The device supports HDMI 1.3a with HDCP 1.4, Audio Return Channel (ARC) and high-bit-rate audio extraction. Its 170MHz 12-bit analog ADC captures composite, S-Video, RGB and YPbPr component signals with high fidelity, paired with adaptive comb filters and multi-format color space converters. Packaged in 260-ball 15mm×15mm CSP-BGA with -40℃~+70℃ commercial temperature range, it serves AV matrix switches, broadcast equipment, home theater receivers, medical display terminals and industrial video surveillance hardware.
Core Advantages
All-In-One Single-Chip Video Input Processing
Integrates quad HDMI receiver, analog graphics digitizer and multi-standard video decoder into one chip, reducing BOM count and PCB layout complexity for multi-source AV equipment.
12-Bit High-Speed Analog Signal Digitization
Four 12-bit 170MHz ADCs deliver high signal-to-noise ratio and clear image output for legacy analog composite, S-Video and high-resolution component video inputs.
Built-In HDCP Decryption Engine
Comes factory pre-programmed with secure HDCP keys, supporting compliant transmission of encrypted premium HD audio and video streams without external crypto circuits.
Configurable Multi-Mode Digital Video Output
Programmable 8/10/12-bit interleaved SDR/DDR pixel bus outputs (RGB/YCbCr), compatible directly with downstream FPGAs, video processors and display controllers.
Key Specifications
| Brand | Analog Devices Inc. (ADI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Assembly Package) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | CSPBGA-260 (15mm x 15mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | ADV7604BBCZ-5P Marking |
| Control Communication Interface | I2C & SPI Serial Control Bus |
| Single Channel HDMI Data Rate | Up to 2.25 Gbps per HDMI Lane |
| Maximum Supported Resolution | UXGA 1600 × 1200 @ 60Hz, 1080p Full HD |
| Analog Input Channel Count | 4 Composite / S-Video / Component Analog Inputs |
| HDMI Configuration Type | 4-Port Multiplexed HDMI® Receiver with HDCP 1.4 Support |
| Analog Capture Architecture | 4x 12-Bit, 170 MHz High-Precision Analog-to-Digital Converters (ADCs) |
| Video Decoding Support | NTSC, PAL, SECAM, Component YPbPr/RGB, Graphics UXGA up to 1600×1200 at 60Hz |
| Digital Pixel Bus Formats | Up to 24-Bit TTL, 8-/10-/12-bit Component interleaved, YCbCr, RGB outputs |
| Integrated Audio Support | S/PDIF, I2S (Up to 8 Channels), Audio Return Channel (ARC), and High-Bit-Rate (HBR) Audio Extraction |
| Nominal Supply Voltage Core | Dual Rails: +1.8V Core Supply and +3.3V Analog/IO Supply Architecture |
| Operating Temperature Range | -40°C to +70°C (Commercial Reliability Grade Envelope) |
Typical Applications
- Advanced Commercial AV Matrix Switched Routers, Projector Display Systems, and Digital Signage Hubs
- Professional Broadcast Video Production Equipment, Video Encoders, and Stream Multiplexers
- Premium Home Theater Systems, AV Receivers, and Multi-Source Media Hubs
- High-Definition Medical Imaging Monitored Terminals and Surgical Video Recording Systems
- Automotive Rear-Seat Infotainment Controllers and Industrial Video Surveillance Control Units
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the ADV7604BBCZ-5P component fully original and genuine?
A: Yes, we guarantee that all ADV7604BBCZ-5P video receiver ICs in our stock are 100% brand-new, factory-original products from Analog Devices Inc., kept inside temperature-controlled and anti-static ESD shielding pipelines.
Q2: What specific parameter tier is indicated by the “-5P” suffix inside the ordering code?
A: The “-5P” suffix marks commercial temperature grade (-40℃ ~ +70℃), factory pre-programmed HDCP secure keys, and supports a maximum 170 MHz analog ADC pixel clock; this variant is not rated for +85℃ industrial operating conditions.
Q3: Can the ADV7604 extract embedded digital audio data streams from the incoming HDMI transmission line?
A: Yes, the chip features an integrated audio extraction unit. It seamlessly splits incoming digital multi-channel audio from the video carrier, outputting it independently across dedicated I2S, S/PDIF, or high-bit-rate audio interface pins.
Q4: How can our technical division request reference layout schematics, driver initialization scripts, or ask for volume wholesale pricing structures?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
