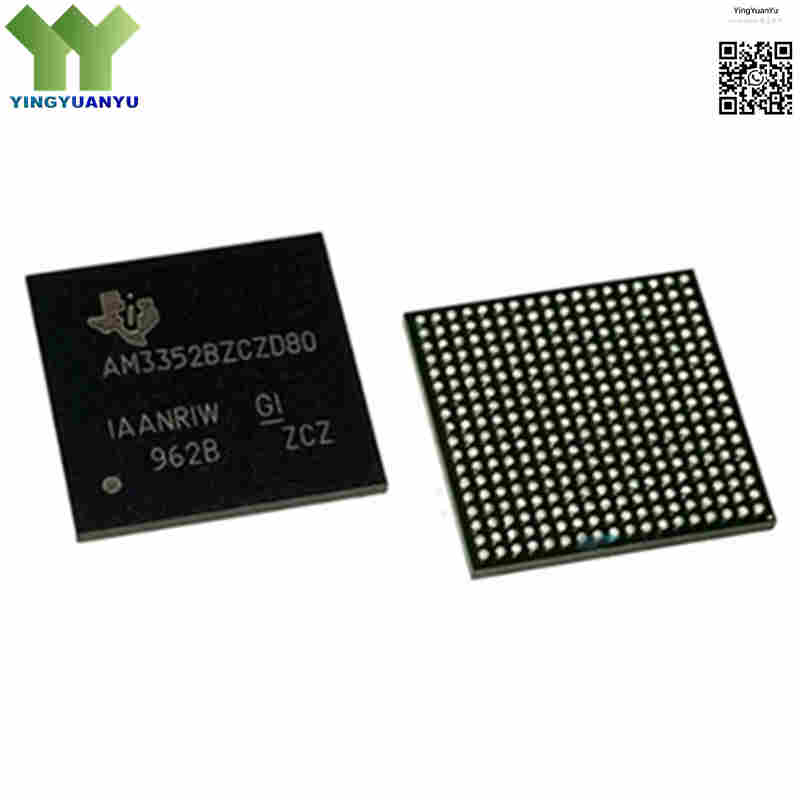

AM3352BZCZD80
AM3352BZCZD80
| Part Number | AM3352BZCZD80 |
|---|---|
| Manufacturer | Texas Instruments (TI) |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors (MPU) |
| Description | Sitara high-performance ARM Cortex-A8 microprocessor operating up to 800 MHz, featuring dual-port Gigabit Ethernet with internal switch logic, flexible industrial communication interfaces, and extended temperature rating for rugged automation and IoT edge devices. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The AM3352BZCZD80 is TI’s industrial Sitara Cortex-A8 MPU running at 800 MHz, designed for industrial gateways, HMI kiosks, smart grid hardware and medical telemetry stations. It integrates LPDDR1/DDR2/DDR3 memory interface, dual Gigabit Ethernet MAC with internal switch logic, hardware crypto accelerators and PRU-ICSS real-time subsystem, which offloads deterministic I/O and custom industrial protocols from the main core. Packaged in thermally robust 324-NFBGA with extended industrial temperature tolerance, this MPU delivers a stable, scalable platform for embedded Linux and Android software development.
Core Advantages
Power-Efficient ARM Cortex-A8 Core
Provides robust computational capabilities up to 800 MHz alongside an integrated NEON SIMD coprocessor, speeding up multimedia workloads, mathematical vectors, and complex signal filtering routines.
Programmable Real-Time Unit (PRU-ICSS)
Features an independent dual-core 32-bit PRU subsystem that runs deterministically at 200 MHz, permitting custom hardware interfacing, ultra-low latency pin manipulation, and custom industrial bus creation.
Integrated Enterprise-Class Connectivity
Equipped with dual Gigabit Ethernet ports featuring native IEEE 1588 time-stamping hardware and built-in internal switch, enabling high-speed deterministic networking arrays and direct daisy-chained communications without external switch chips.
Ruggedized Extended Temperature Performance
Engineered and fully verified to sustain peak operational workloads under extreme ambient thermal spreads ranging from -40°C to +90°C, ensuring unmatched reliability inside harsh industrial control cabinets.
Key Specifications
| Brand | Texas Instruments (TI) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | 324-NFBGA (15.00mm x 15.00mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | AM3352BZCZD80 Marking |
| Core Architecture | ARM Cortex-A8 32-Bit Monolithic Risc Engine |
| Maximum Clock Speed | 800 MHz |
| Co-Processors / DSP Subsystems | NEON Media Acceleration Engine and Vector Floating-Point unit (VFPv3) |
| External Memory Controller | Supports LPDDR1, DDR2, DDR3, and DDR3L up to 16-bit Bus Widths |
| Ethernet Communications | 2x 10/100/1000 Mbps Gigabit Ethernet Ports with Integrated RGMII / RMII Interfaces & On-Chip Ethernet Switch, IEEE 1588v2 Hardware Timestamp Support |
| USB Interfaces | 2x USB 2.0 High-Speed OTG Controllers with On-Chip PHY transceivers |
| On-Chip Peripheral IOs | 6x UART, 2x CAN Bus (DCAN), 3x SPI, 3x I2C, Multi-Channel McASP Audio, 12-Bit ADC |
| Operating Voltage Supply | Core: Nominal 1.26V (800MHz Operation) / Interface IO: 1.8V or 3.3V Multi-Rail Configurations |
| Operating Temperature Range | -40°C to +90°C (Extended Industrial/Junction Grade Profile) |
Typical Applications
- Industrial Automation Human-Machine Interfaces (HMI), Programmable Logic Controllers (PLC), and CNC Machinery Boards
- Smart Grid Infrastructures, Intelligent Power Meters, Data Concentrators, and Renewable Energy Gateways
- IoT Edge Communication Nodes, Enterprise Routers, Network Bridges, and Commercial Facility Control Hubs
- Handheld Medical Diagnostic Instruments, Clinical Patient Monitors, and Portable Lab Analyzers
- Point-of-Sale (POS) Terminals, Self-Service Kiosks, Intelligent Vending Systems, and Connected Digital Signage
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your listed inventory of the AM3352BZCZD80 processor fully original and factory-authentic?
A: Yes, we guarantee that all AM3352BZCZD80 Sitara microprocessors in our warehouse inventory are 100% brand-new, factory-original products from Texas Instruments, strictly handled under specialized ESD-safe anti-static shield packing and dry-storage moisture regulations.
Q2: What unique architectural benefit does the integrated PRU-ICSS subsystem provide?
A: The Programmable Real-Time Unit Subsystem (PRU-ICSS) consists of dual 32-bit RISC cores independent of the main Cortex-A8 core. It provides low-latency control over the physical I/O pins, allowing developers to implement real-time industrial protocols like EtherCAT, PROFINET, or custom sensor readouts without loading down the main OS kernel.
Q3: How does the AM3352 processor model differ from other devices within the TI Sitara AM335x series family?
A: The AM3352 is optimized as a cost-effective, high-efficiency data-routing and computing core. It includes comprehensive connectivity features like dual Gigabit Ethernet with internal switch and dual USB controllers, but omits the SGX530 3D graphics hardware accelerator found on the higher-end AM3354 and AM3358 variants.
Q4: How can our engineering layout team access IBIS simulation models, reference schematics, or request bulk wholesale pricing tiers?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
