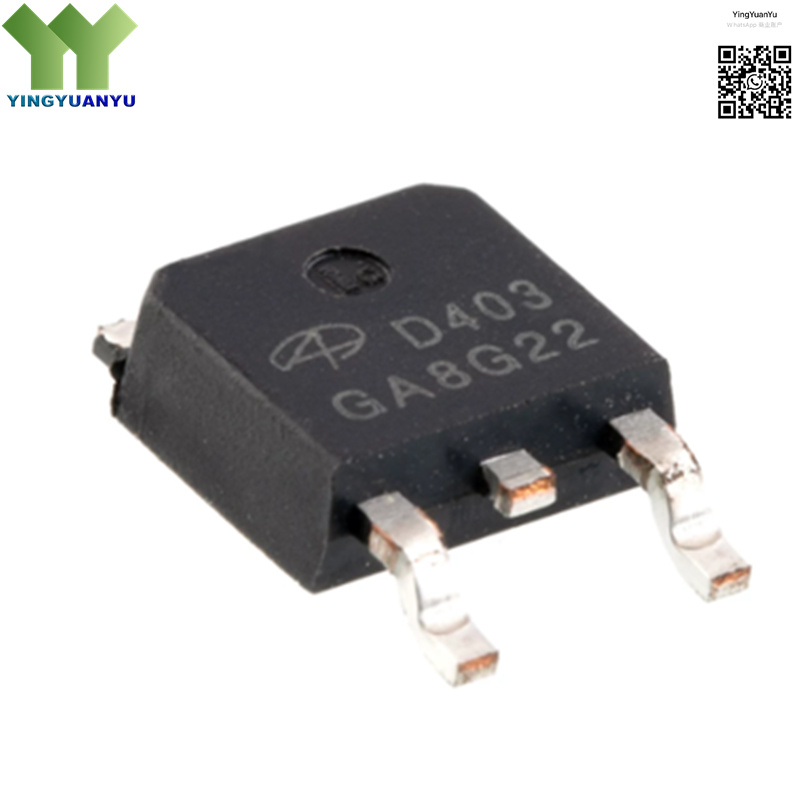

AOD403
AOD403
| Part Number | AOD403 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -30V, -70A,8 mΩ, Low Rds(on), TO-252 Package |
Product Overview
The AOD403 is a P-channel enhancement mode power MOSFET from Alpha & Omega Semiconductors, designed for high-efficiency power switching and load control applications. It features advanced trench technology, ultra-low on-resistance, fast switching speed, and excellent thermal performance. The device provides reliable operation, high current capability, and low power dissipation, ideal for use in battery-powered systems, power management, and motor control circuits.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | D403 |
| Drain-Source Voltage (Vdss) | -30 V |
| Continuous Drain Current (Id) | -70 A |
| On-State Resistance (Rds(on)) | 8 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Power Distribution and Load Switching
- Battery Management and Protection Circuits
- DC-DC Converters and Voltage Regulators
- Motor Drive and Control Systems
- Portable Electronic Devices
- Industrial Power Control Modules
- LED Lighting and Driver Circuits
- Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
