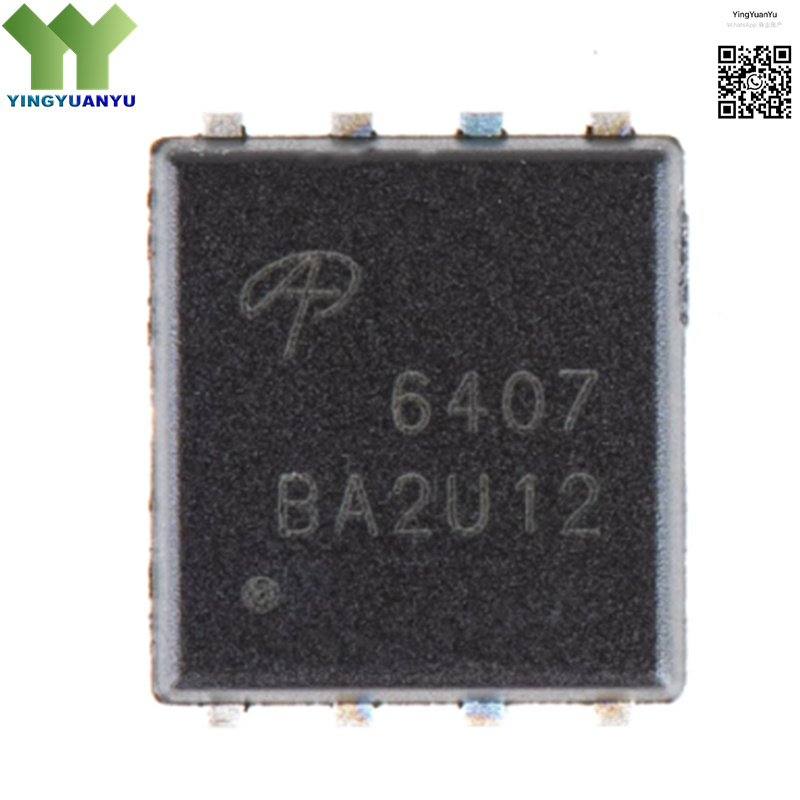

AON6407
AON6407
| Part Number | AON6407 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -30V, -85A,4.5 mΩ, Low Rds(on), PDFN-8(5.8×4.9) Package |
Product Overview
The AON6407 is a compact high-performance P-channel enhancement mode power MOSFET from Alpha & Omega Semiconductors. Built with advanced trench technology and a thermally efficient PDFN-8(5.8×4.9) package, it delivers low on-resistance, high current handling, fast switching speed, and excellent thermal performance. This miniaturized device offers high power density, low power loss, and reliable operation, ideal for space-constrained power management, DC-DC conversion, and load switching applications.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | PDFN-8(5.8×4.9) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | 6407 |
| Drain-Source Voltage (Vdss) | -30 V |
| Continuous Drain Current (Id) | -85 A |
| On-State Resistance (Rds(on)) | 4.5 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Compact DC-DC Converters
- Battery Management & Protection Circuits
- Portable Electronic Power Systems
- Load Switches & Power Distribution
- IoT & Wearable Device Power Modules
- Consumer Electronics Power Control
- Small Motor Drive Circuits
- High-Density PCB Power Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
