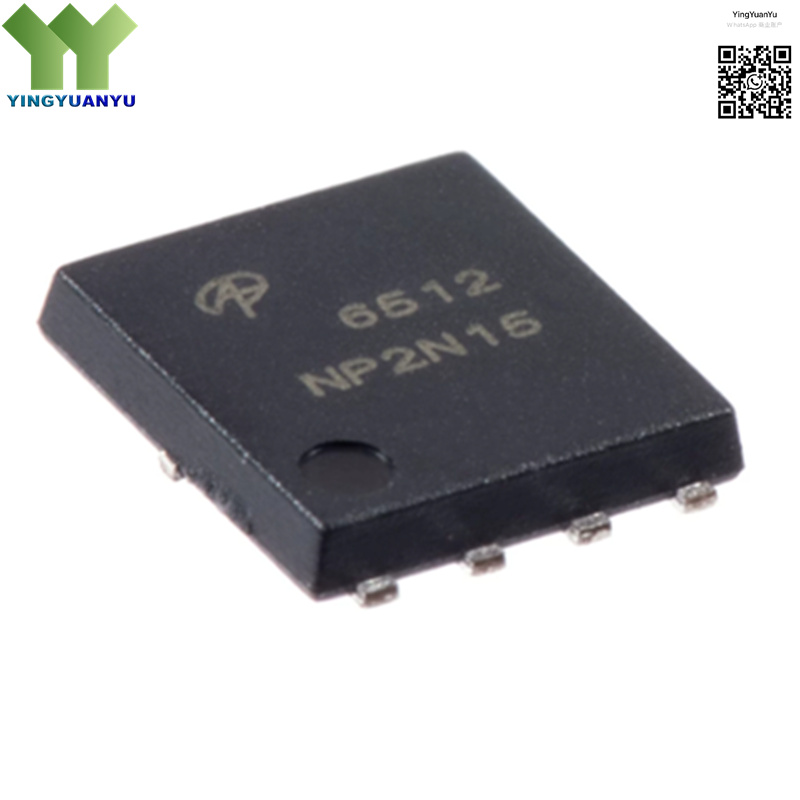

AON6512
AON6512
| Part Number | AON6512 |
|---|---|
| Manufacturer | Alpha & Omega Semiconductors (AOS) |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 30V, 150A,1.7 mΩ, Low Rds(on), PDFN-8(5.2×5.6) Package |
Product Overview
The AON6512 is a high-performance N-channel enhancement mode power MOSFET from Alpha & Omega Semiconductors, designed for compact and high-efficiency power applications. Utilizing advanced trench technology and a thermally enhanced PDFN-8(5.2×5.6) package, it provides low on-state resistance, high current capability, fast switching speed, and excellent thermal performance. This miniaturized device delivers high power density, low power loss, and stable operation, ideal for space-constrained power management, DC-DC conversion, and load switching systems.
| Key Specifications | |
|---|---|
| Brand | Alpha & Omega Semiconductors (AOS) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | PDFN-8(5.2×5.6) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | 6512 |
| Drain-Source Voltage (Vdss) | 30 V |
| Continuous Drain Current (Id) | 150 A |
| On-State Resistance (Rds(on)) | 1.7 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Compact DC-DC Converters
- Battery Management & Protection Circuits
- Portable & Wearable Electronics
- Load Switches & Power Distribution
- IoT Device Power Modules
- Consumer Electronic Power Control
- Small Motor Drive Systems
- High-Density PCB Power Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
