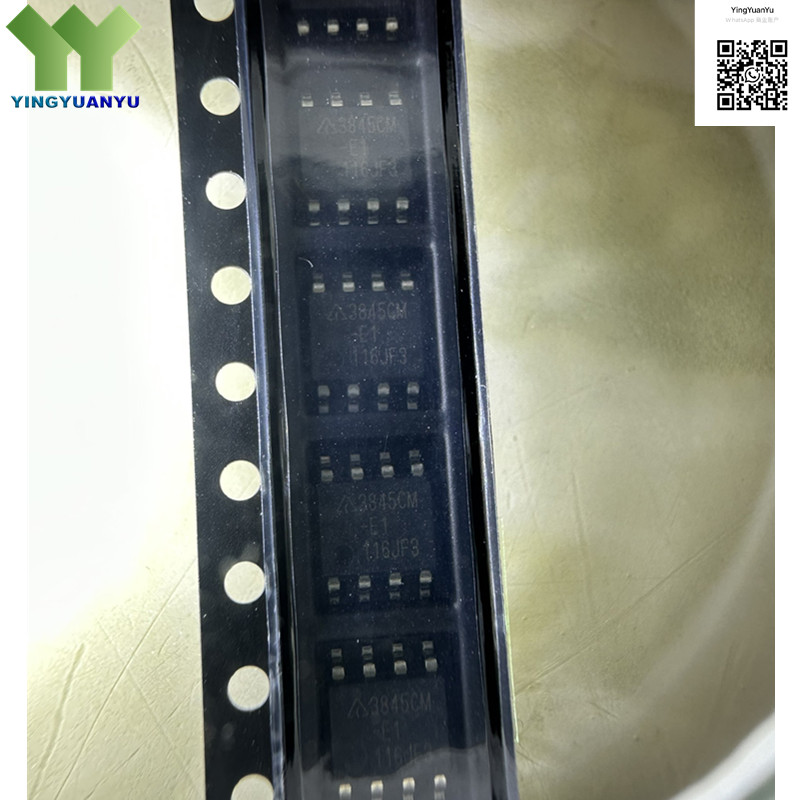

AP3845CMTR-E1
AP3845CMTR-E1
| Part Number | AP3845CMTR-E1 |
|---|---|
| Manufacturer | DIODES Incorporated |
| Category | Power Management ICs; Current Mode PWM Controller |
| Description | High-Performance Current Mode PWM Controller, 300mA Sink/Source, SOIC-8 Package |
Product Overview
The AP3845CMTR-E1 is a high-performance current-mode pulse width modulation (PWM) controller optimized for off-line and DC-to-DC switching power supply applications. It integrates a precision oscillator, error amplifier, current sensing circuit, and push-pull output stage with 300mA sink/source capability. The device offers low startup current, wide operating voltage range, cycle-by-cycle current limiting, and internal thermal shutdown protection for enhanced reliability. Designed for high efficiency and stable performance, it is ideal for switch-mode power supplies, adapters, chargers, and industrial power systems in a compact SOIC-8 surface-mount package.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | DIODES Incorporated |
| Control Type | Current Mode PWM Controller |
| Output Drive | 300mA Sink / Source |
| Operating Voltage | 8.0V ~ 35V |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Off-Line Switching Power Supplies
- AC-DC Adapters & Battery Chargers
- DC-DC Converter Modules
- Industrial Power Supply Systems
- Set-Top Box & Consumer Electronics Power
- High-Efficiency Switch Mode Power Supplies
- LED Driver Power Systems
- Server & Communication Equipment Power
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
