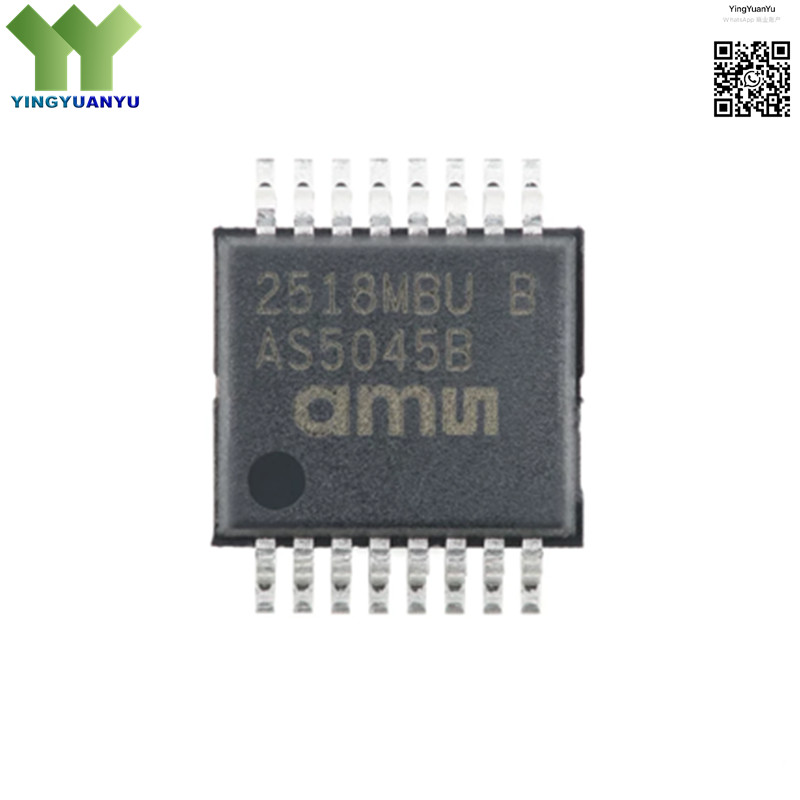

AS5045B-ASST
AS5045B-ASST
| Part Number | AS5045B-ASST |
|---|---|
| Manufacturer | ams OSRAM |
| Category | Position Sensors; Magnetic Rotary Encoder |
| Description | 12-Bit High-Resolution Magnetic Rotary Position Sensor, SSI Interface, SSOP-16 Package |
Product Overview
The AS5045B-ASST is a high-resolution, non-contact magnetic rotary encoder designed for precise 360° angle measurement and position sensing. It utilizes contactless magnetic technology to deliver reliable performance in harsh environments with dust, moisture, and vibration. The device offers 12-bit absolute angle measurement, ultra-low power consumption, fast response time, and a standard SPI digital interface for seamless system integration. It includes built-in diagnostics, error detection, and wide voltage operation for industrial and automotive robustness. Housed in a SSOP-16-208mil surface-mount package, it is ideal for high-precision motion control and position monitoring applications.
| Key Specifications | |
|---|---|
| Brand | ams OSRAM |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SSOP-16-208mil |
| Mounting Type | Surface Mount (SMD) |
| Resolution | 12-Bit (0.087°) |
| Measurement Range | 0° ~ 360° Full Rotation |
| Interface | SSI Digital Interface |
| Supply Voltage | 3.0V ~ 5.5V |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Industrial Servo Motors & Drives
- Robotic Arm Position Control
- Automotive Steering & Actuators
- Camera & Pan-Tilt Systems
- Precision Medical Devices
- Angle Measurement & Feedback Systems
- HVAC Valves & Damper Controls
- High-Precision Motion Control Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
