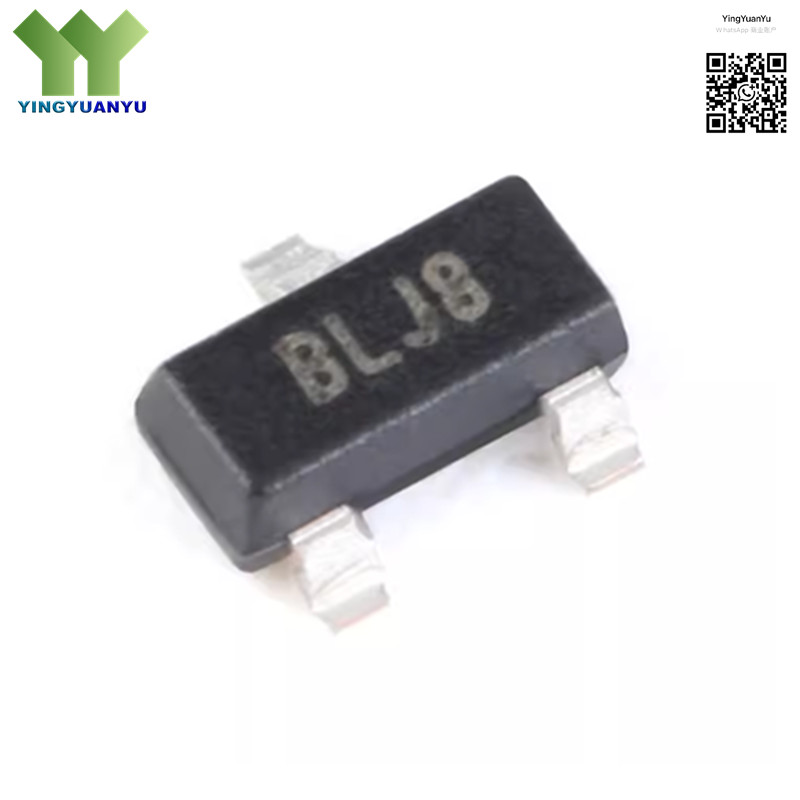

TC1047AVNBTR
TC1047AVNBTR
| Part Number | TC1047AVNBTR |
|---|---|
| Manufacturer | Microchip Technology Inc. |
| Category | Integrated Circuits (ICs) > Sensors > Temperature Sensors > Analog Output |
| Description | ANALOG OUTPUT TEMPERATURE SENSOR, -40 TO 125 DEG C, 2.7V TO 5.5V, SOT-23-3 |
Product Overview
The TC1047AVNBTR is a high-precision, low-power analog output temperature sensor from Microchip Technology, designed for accurate temperature monitoring in compact, battery-powered systems. This device provides a linear voltage output directly proportional to the measured Celsius temperature, eliminating the need for external signal conditioning or analog-to-digital conversion in basic applications. Operating over a wide supply voltage range of 2.7V to 5.5V with ultra-low quiescent current, it is optimized for portable and energy-efficient designs. The sensor offers excellent accuracy, fast response time, and stable performance across the full industrial and automotive temperature range. Packaged in an ultra-small SOT-23-3 form factor, the TC1047AVNBTR is ideal for space-constrained applications requiring reliable, cost-effective temperature sensing.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Microchip Technology |
| Sensor Type | Analog Output, Celsius |
| Temperature Range | -40°C to +125°C |
| Supply Voltage | 2.7V to 5.5V |
| Output Scale | 10 mV/°C |
| Accuracy | ±2°C (Max) at 25°C |
| Quiescent Current | 5 µA (Typ) |
| Package Type | SOT-23-3 |
| Response Time | 500 ms (Typ) |
Typical Applications
- Battery-Powered Portable Electronics
- Industrial Temperature Monitoring & Control
- Automotive Cabin & Component Sensing
- HVAC and Building Automation Systems
- Medical Diagnostic Devices
- Consumer Electronics Thermal Protection
- IoT Sensor Nodes & Wireless Devices
- Power Supply & Battery Management Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
