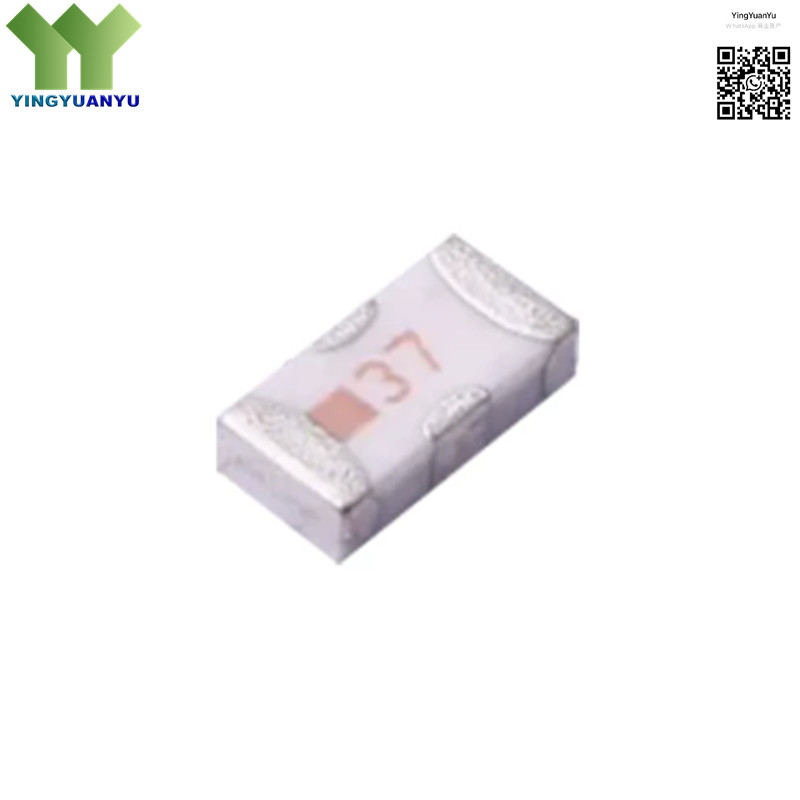

BFCN-2275+
BFCN-2275+
| Part Number | BFCN-2275+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Filters; Bandpass Filter |
| Description | 2275 MHz Ceramic Bandpass Filter, 50Ω, 75 MHz Bandwidth, RoHS Compliant, SMD-4P,3.2×1.6mm Package |
Product Overview
The BFCN-2275+ is a high-performance 50-ohm ceramic bandpass filter centered at 2275 MHz, designed for RF and wireless communication systems requiring precise frequency selection. It offers excellent insertion loss, high out-of-band rejection, stable performance, and consistent temperature characteristics for reliable signal filtering. The device features a compact surface-mount package, low profile design, and high reliability for industrial, communication, and wireless applications. Fully RoHS-compliant and optimized for high-frequency PCB integration, it ensures accurate and stable RF signal filtering for professional wireless and communication systems.
| Key Specifications | |
|---|---|
| Brand | Mini-Circuits |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-4P,3.2×1.6mm |
| Mounting Type | Surface Mount (SMD) |
| Center Frequency | 2275 MHz |
| Bandwidth | 75 MHz |
| Impedance | 50 Ω |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Wireless Communication Systems
- RF Signal Filtering & Conditioning
- 2.4 GHz ISM Band Applications
- RF Transmitter & Receiver Modules
- Test & Measurement Instrumentation
- IoT & Wireless Sensor Nodes
- High-Frequency RF Front-Ends
- PCB Frequency Selection Circuits
