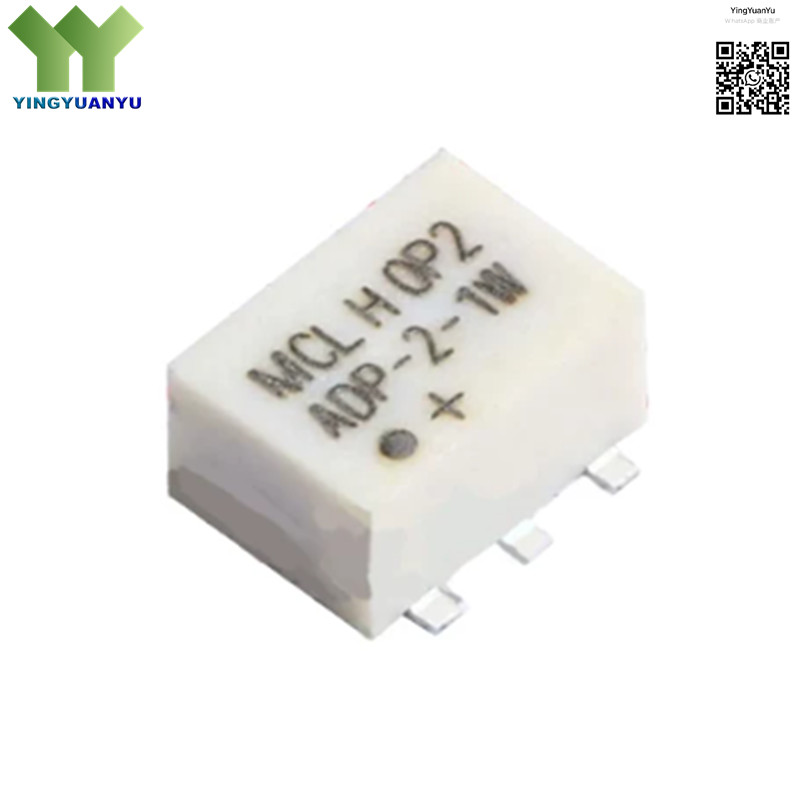

ADP-2-1W+
ADP-2-1W+
| Part Number | ADP-2-1W+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Power Splitters / Combiners; 2-Way Resistive Power Splitter |
| Description | 2-Way Resistive Power Splitter/Combiner, DC to 3000 MHz, 50Ω, SMD-6P,7.9×5.6mm Package |
Product Overview
The ADP-2-1W+ is a high-performance broadband 2-way resistive power splitter/combiner designed for RF, microwave, wireless communication, and test & measurement applications. It operates seamlessly from DC to 3000 MHz with 50Ω impedance matching, low insertion loss, excellent amplitude balance, and high port-to-port isolation. Utilizing advanced thin-film technology and compact surface-mount construction, this device delivers stable performance, consistent electrical characteristics, and high reliability across wide temperature ranges. Its small SMD form factor enables easy integration into high-density RF circuits and modern communication systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Configuration | 2-Way Resistive Splitter / Combiner |
| Frequency Range | DC to 3000 MHz |
| Impedance | 50Ω |
| Package Type | SMD-6P,7.9×5.6mm |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF Signal Distribution and Combining
- Test & Measurement Equipment
- Broadband Wireless Communication Systems
- RF Receiver and Transmitter Modules
- 2.4GHz ISM Band Applications
- High-Density RF PCB Designs
- Industrial and Commercial RF Systems
- Laboratory and R&D Signal Testing
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
