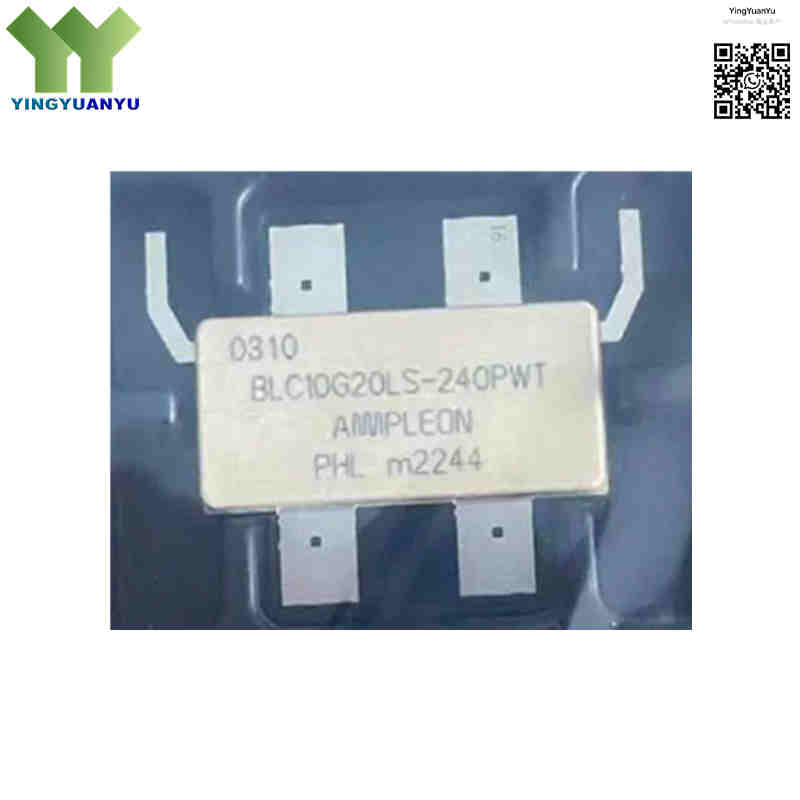

BLC10G20LS-240PWT
BLC10G20LS-240PWT
| Part Number | BLC10G20LS-240PWT |
|---|---|
| Manufacturer | Ampleon |
| Category | Discrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFETs / Power Transistors |
| Description | 28V LDMOS Power Transistor, Internal Matched, Designed for 1805 MHz – 1995 MHz Base Station Applications, SOT1275-3 Earless Flange Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The BLC10G20LS-240PWT is a 28V LDMOS RF power transistor launched by Ampleon, specially designed for 1805 MHz~1995 MHz cellular base station RF power amplifier. Under dual-carrier W-CDMA test condition, it achieves average output power of 60W, typical power gain 19.3 dB. This device adopts built-in input and output matching circuit, packaged in SOT-1275-3 flange package. It owns low memory effect, integrated ESD protection, and supports VSWR 10:1 full-phase load mismatch, widely used for multi-carrier communication power amplifier systems.
Core Advantages
Excellent Linearity for Communication System
Optimized for W-CDMA multi-carrier signal, stable ACPR performance, suitable for cellular base station transmit amplifier.
Low Memory Effect & Wide Video Bandwidth
Enhanced video decoupling design, reduce signal distortion under dynamic modulation, improve signal stability.
Strong Anti-Mismatch Capability
Able to withstand VSWR 10:1 full-phase mismatch under 120W input power, improve equipment reliability in complex working environment.
Simplified Circuit Design
Internal matched structure, reduce external matching components, shorten product development cycle, RoHS compliant with built-in ESD protection.
Key Specifications
| Brand | Ampleon |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | SOT1275-3 Earless Flange Plastic Package |
| Mounting Type | Flangeless Surface Mount / Direct Heat-Sink Mounting |
| Surface Marking / Silkscreen | BLC10G20LS-240PWT Marking |
| Operating Frequency | 1805 MHz ~ 1995 MHz |
| Drain Supply Voltage (Vds) | 28V (Typical Operation), Maximum Rated 65V |
| Quiescent Drain Current (Idq) | 1600 mA (Test Condition) |
| Average Output Power (Pl(av)) | 60 W (Dual-carrier W-CDMA Signal) |
| Power Gain (Gp) | 19.3 dB (Typical Value) |
| Drain Efficiency (ηd) | 30% (Typical) |
| ACPR @5MHz Offset | -32 dBc |
| Thermal Resistance (Rth(j-c)) | 0.34 K/W (Tc=80°C, Pl=60W) |
| Maximum Vgs | ±6 V |
| Maximum Junction Temperature (Tj) | +150°C |
| Storage Temperature Range | -65°C ~ +150°C |
| Package | SOT1275-1 (6 Pin, Earless Flange Plastic Package) |
| Load Mismatch Tolerance | VSWR 10:1 Full Phase (Pl=120W) |
Typical Applications
- 2G / 3G Cellular Base Station RF Power Amplifier
- Multi-carrier W-CDMA Transmitter Power Amplifier
- Wireless Communication Infrastructure Power Amplifier Module
- Broadband RF Power Amplifier within 1805~1995MHz frequency range
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Processing Time | Ship within 1-2 working days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Options | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T Wire Transfer, PayPal, Credit Card, Western Union |
Technical Support
If you need official datasheet, pin definition, impedance curve, reference circuit diagram or technical parameter support, please submit your demand via inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What frequency band does BLC10G20LS-240PWT support?
A: The operating frequency range is 1805 MHz ~ 1995 MHz, designed for DCS / 3G cellular communication base station amplifier.
Q2: What is the difference between different suffix variants of this series?
A: BLC10G20LS-240PWT uses SOT1275-3 earless flange package. Different tail suffix mainly distinguish packaging form, tape & reel / tray packing, industrial screening grade. Electrical core parameters keep consistent, but cannot directly drop-in replacement if package outline differs.
Q3: Can BLC10G20LS-240PWT be replaced with similar LDMOS transistors from other brands?
A: Partial equivalent alternatives are available, but full verification is required. Different brands have discrepancy on internal matching, memory effect and linearity. Do not directly substitute without re-tuning matching circuit and linearity test.
Q4: What is the maximum junction temperature of this transistor?
A: The maximum allowable junction temperature Tj is 150°C. Good heat sink design must be adopted to prevent overheating damage under continuous operation.
Q5: Is this device resistant to antenna load mismatch?
A: Yes, it can withstand VSWR 10:1 full-phase load mismatch under input power 120W condition, greatly improve field equipment stability.
Q6: What is the pin assignment for SOT1275-3 package?
A: Pin1: Drain1, Pin2: Drain2, Pin3: Gate1, Pin4: Gate2, Pin5: Video Decoupling, Pin6: Video Decoupling (Source connected flange). Reasonable video decoupling circuit helps reduce memory effect.
Q7: What is the typical average output power of BLC10G20LS-240PWT?
A: Under dual-carrier W-CDMA signal test, average output power reaches 60W, typical gain 19.3dB, suitable for medium power base station transmit chain.
