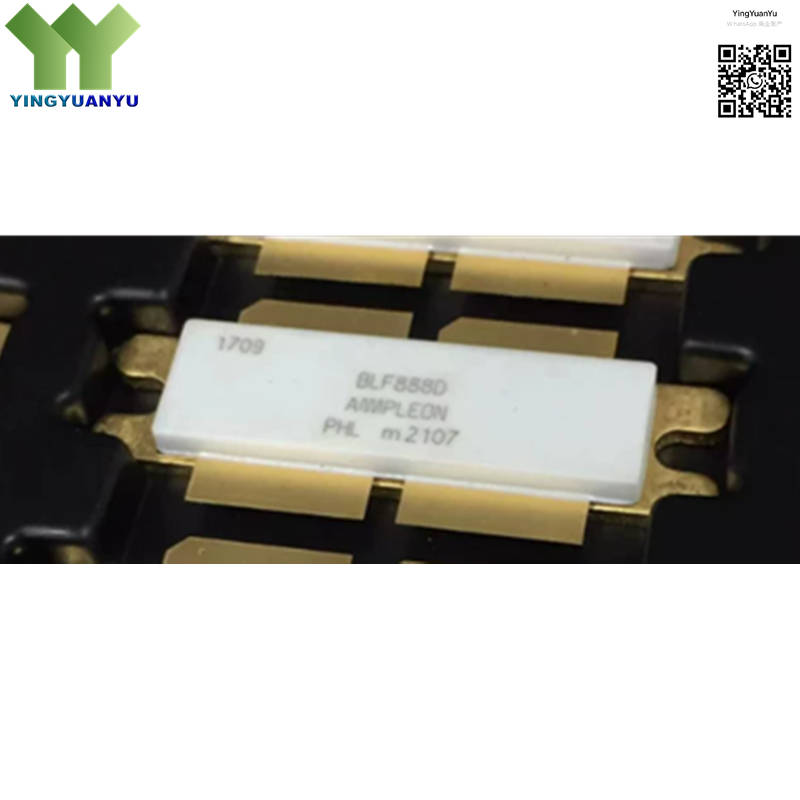

BLF888D
BLF888D
| Part Number | BLF888D |
| Manufacturer | AMPLEON |
| Category | RF Semiconductors > LDMOS RF Power Transistor > UHF Broadcast Power FET |
| Description | Dual-sided LDMOS RF Power Transistor, 470MHz~860MHz, UHF Digital TV High Power Amplifier,SOT-539A Package |
Product Overview
The BLF888D is high-efficiency dual die LDMOS RF power transistor developed by NXP, specially optimized for UHF digital television broadcast equipment operating across 470MHz to 860MHz frequency band. Based on advanced silicon LDMOS process technology, this device delivers high continuous output power, excellent power added efficiency and superior VSWR ruggedness against unexpected antenna load mismatch. Its industry-standard ceramic flanged package enables reliable screw mounting and efficient heat dissipation matched with external heatsink, supporting long-term continuous CW working condition. It is widely used as core power component for high-power digital TV transmitters, UHF signal transposers, industrial RF heating equipment and high-power RF laboratory test amplifiers.
Key Specifications
| Brand | AMPLEON |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SOT-539A Package |
| Mounting Type | Screw Fixed with External Heatsink |
| Surface Marking / Silkscreen | BLF888D Marking |
| Frequency Range | 470MHz ~ 860MHz |
| Typical CW Output Power | 230W |
| Operating Drain Voltage | 28V DC |
| Typical Power Gain | 16dB |
| Operating Temperature | -40°C ~ 150°C |
Typical Applications
- DVB-T UHF Digital TV High Power Transmitter Final Amplifier Stage
- UHF Terrestrial TV Signal Repeater & Transposer Power Modules
- Industrial UHF Dielectric & Induction RF Heating Power Source
- Laboratory High Power UHF RF Signal Source Test Amplifier
- Large Power UHF Broadcast Signal Booster Amplifier Unit
- UHF Plasma Generation High Frequency Excitation Power Supplies
- Analog & Digital Hybrid TV Transmitter Output Power Stage
- Industrial High Frequency RF Drying Equipment Drive Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is BLF888D RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SOT-539A package and screw fixed installation with external heatsink.
Q4: What’s BLF888D standard operating frequency range?
A: It covers 470MHz to 860MHz for UHF TV broadcast amplification.
