BNO055
BNO055
| Part Number | BNO055 |
|---|---|
| Manufacturer | Bosch |
| Category | Sensors; 9-Axis Absolute Orientation IMU |
| Description | Integrated 9-axis sensor with 14-bit accelerometer, 16-bit gyroscope and 13-bit magnetometer,32-bit microcontroller，LGA-28(3.8×5.2×1.1mm) surface mount package |
Product Overview
The BNO055 is a high-performance 9-axis inertial measurement unit developed by Bosch. It integrates a 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer with an embedded microcontroller, delivering accurate absolute orientation data directly. Featuring built-in sensor fusion algorithm, low power consumption and multiple digital interfaces, this all-in-one sensor simplifies circuit design and ensures stable motion tracking performance. It is widely applied in wearable devices, robotics, VR/AR equipment and industrial motion monitoring systems.
| Key Specifications | |
|---|---|
| Brand | Bosch |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | LGA-28(3.8×5.2×1.1mm) |
| Mounting Type | Surface Mount (SMD) |

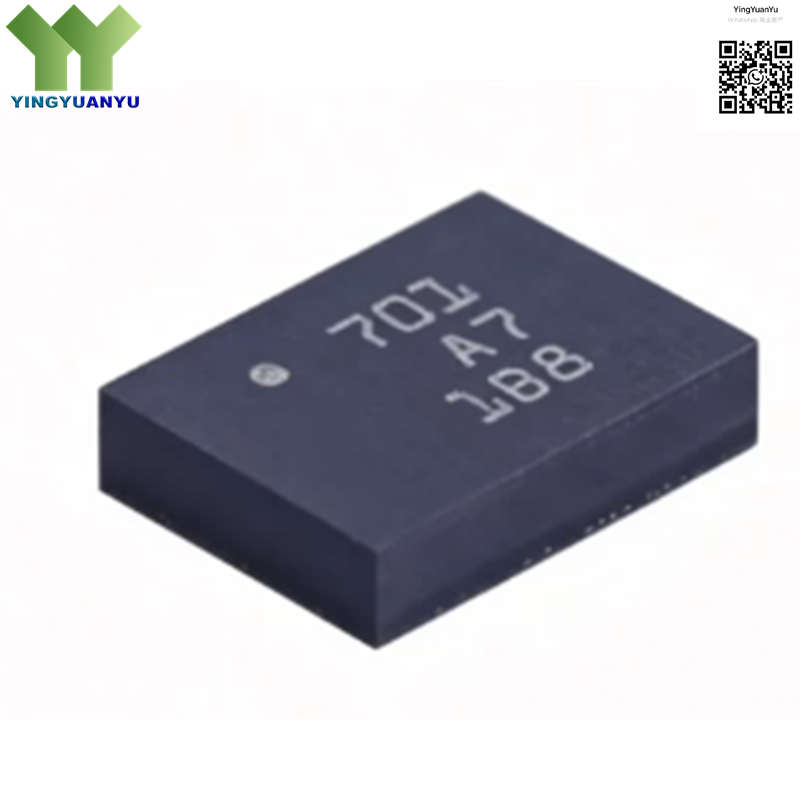

| Surface Marking / Silkscreen | 701 Marking |
| Integrated Modules | Accelerometer(X,Y,Z), Gyroscope(X,Y,Z), Magnetometer |
| Interface | I2C, UART |
| Supply Voltage | 2.4V to 3.6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Virtual and Augmented Reality Devices
- Robotics Motion Control
- Wearable Fitness and Smart Devices
- Drone Attitude Detection
- Human Motion Tracking
- Industrial Position Monitoring
- Game and Interactive Controllers
- Navigation and Orientation Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
