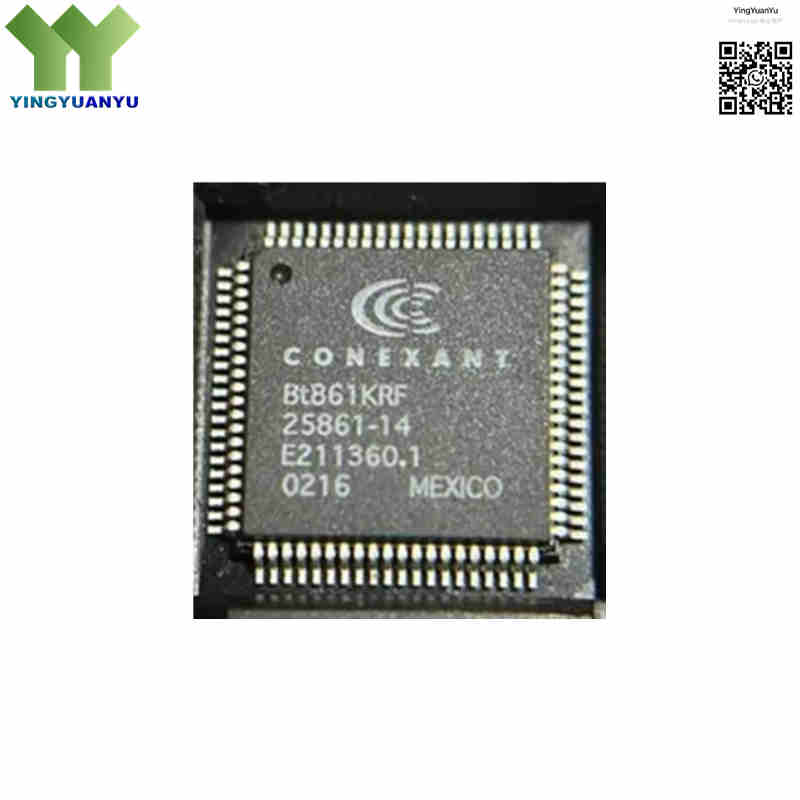

BT861KRF
BT861KRF
| Part Number | BT861KRF |
|---|---|
| Manufacturer | Conexant (Acquired by Synaptics, Formerly Rockwell Semiconductor) |
| Category | Integrated Circuits (ICs) > Interface – Encoders, Decoders, Converters / Video ICs |
| Description | High-performance digital-to-analog video encoder IC, optimizing digital YCrCb data streams into premium composite, S-video, and component analog television outputs supporting NTSC/PAL/SECAM for broadcast and consumer multimedia. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The BT861KRF is an integrated digital video encoder originally developed by Rockwell/Conexant, now owned by Synaptics. Designed for set-top boxes, video editing gear and industrial monitoring systems, it converts CCIR 601/656 standard 8-bit YCrCb digital signals into composite, S-Video and analog component outputs supporting NTSC, PAL and SECAM. Equipped with 10-bit internal DACs and anti-imaging filters to eliminate dot crawl and sync skew, this IC is packaged in an 80-Pin PQFP, delivering stable analog video conversion for legacy broadcast and multimedia equipment globally.
Core Advantages
Multi-Format Analog Rendering Output
Natively formats incoming digital data into composite, S-video, and component analog feeds simultaneously, providing extensive interface flexibility for video mixing equipment.
Advanced Digital Anti-Imaging Filtration
Incorporates specialized on-chip digital luma and chroma interpolation filters that filter out processing clock harmonics, yielding crisp outlines and clean color definition.
Universal Broadcast Standards Integration
Supports NTSC, PAL and SECAM global broadcast encoding standards, switchable via simple hardware control pin states or internal memory registers to match regional specifications.
Robust Synchronous Clock Controls
Utilizes precision line-locked clock configurations and digital timing generators to secure unwavering horizontal and vertical sync fields over long coaxial connection lines.
Key Specifications
| Brand | Conexant / Synaptics (Rockwell Bt Video Semiconductor Series) |
|---|---|
| RoHS Status | RoHS Compliant, Lead-Free Green Manufacturing Standard |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 80-PQFP (14mm × 14mm × 0.65mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Solder Reflow) |
| Surface Marking / Silkscreen | Bt861KRF Marking |
| Digital Input Signal Support | Three Independent 8-bit 4:2:2 YCrCb Digital Input Ports compliant with CCIR 601 / CCIR 656 |
| Analog Output Configuration | 3 Integrated High-Speed 10-bit Video Digital-to-Analog Converters (DACs) |
| Broadcast Formats Covered | Full NTSC (M/J), PAL (B/D/G/H/I/M/N) & SECAM global encoding structures |
| Signal-to-Noise Ratio (SNR) | 68dB Typical Luma SNR, 62dB Typical Chroma SNR Broadcast-Grade Performance |
| Control Protocol Interface | 100kHz Standard I²C Serial Control Bus |
| Power Supply Parameters | Single 3.3V Core Supply, 5V Tolerant Digital Inputs, Integrated Internal Voltage Reference |
| Typical Power Consumption | 120mW Normal Operating Power Draw |
| Pixel Clock Frequency | 27MHz Standard SD Video Pixel Clock Input |
| Video Output Level | 1Vpp Composite Analog Video Output under 75Ω Load Impedance |
| Sync Generation Circuit | Built-in H/V Sync Generator + Color Subcarrier Burst Generator |
| Operating Temperature Range | 0°C to +70°C Commercial Operating Temperature Range |
Typical Applications
- Digital Cable/Satellite Set-Top Boxes, Over-The-Air Media Tuners, and Smart TV Box Outlets
- Professional Studio Video Switchers, Analog-to-Digital Processing Consoles, and Frame Grabbers
- Multimedia PC Display Adapters, Legacy VGA-to-TV Scan Converters, and Video Editing Hardware
- CCTV Security Monitoring Stations, Hard Disk Video Recorders, and Multi-Channel Baseband Encoders
- In-Flight Commercial Entertainment Systems, Maritime Navigation Displays, and Casino Arcade Consoles
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the BT861KRF 100% original and genuine?
A: Yes, we guarantee that all BT861KRF video encoders in our inventory are 100% brand-new, factory-original products from Conexant / Synaptics (Formerly Rockwell Semiconductor). Every single component lot passes strict incoming inspection checks and is packed in original anti-static trays or tubes to keep the package leads flat and pristine.
Q2: Can the BT861KRF chip convert digital RGB signals directly into analog television outputs?
A: The primary input format for the BT861KRF is component digital YCrCb data streams matching CCIR 601/656 standards. If your main host controller outputs raw RGB signals, they must first pass through a digital matrix color space conversion block before interfacing with this encoder’s digital input bus lines.
Q3: How does this encoder IC handle switching between international NTSC, PAL and SECAM television formats?
A: Switching between NTSC, PAL and SECAM formats is managed dynamically. Hardware engineers can configure the change by adjusting specific logic voltage levels on external hardware configuration pins, or software developers can modify internal control registers via the I2C serial microprocessor interface during system setup.
Q4: How can our physical engineering group secure the full schematic layout or request tiered volume quotes?
A: Please complete our Quick Inquiry web form found directly on this product page, noting your target quantities and specific project metrics. Our specialized video interface technical support desk will review your submission and reply with full data assets and custom commercial pricing tables within 24 hours.
