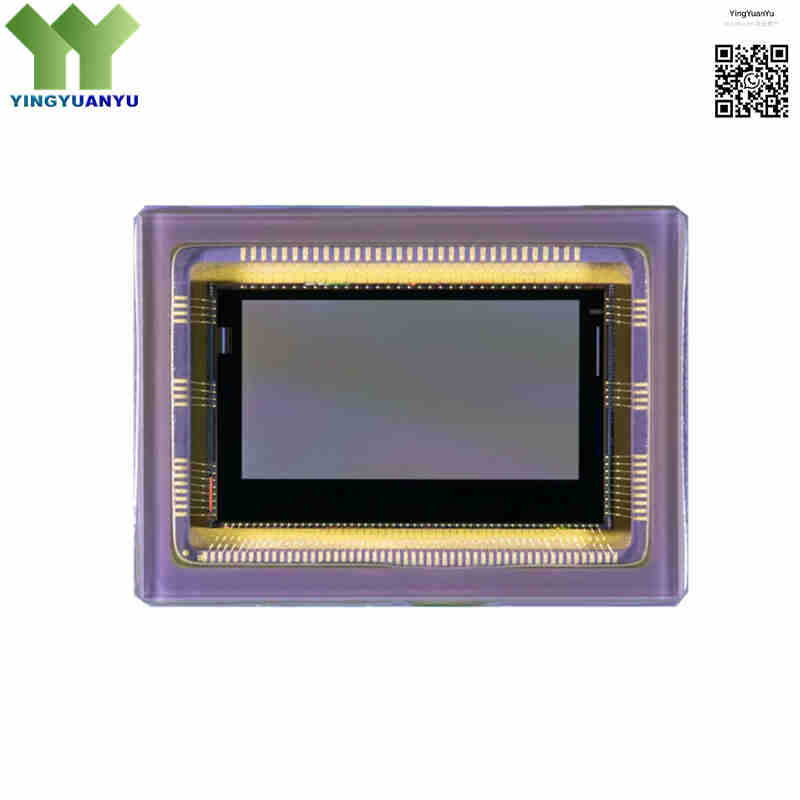

CMV2000-3E5C1PP
CMV2000-3E5C1PP
| Part Number | CMV2000-3E5C1PP |
|---|---|
| Manufacturer | ams OSRAM (ams / CMOSIS) |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 2.2 Megapixel 2/3‑Inch Color CMOS Image Sensor with Pipelined Global Shutter, High Frame Rate, 95‑Pin PGA Ceramic Package with Plain Glass. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
CMV2000‑3E5C1PP is ams OSRAM 2.2MP color CMOS global shutter image sensor with 2/3‑inch optical format. It delivers up to 340fps full‑resolution via 16‑channel LVDS output, supports selectable 10‑bit/12‑bit ADC, HDR modes, CDS, programmable gain and SPI external trigger. Housed in 95‑pin PGA ceramic package with plain glass, suitable for high‑speed industrial machine vision, AOI, traffic and scientific imaging.
Core Advantages
Pipelined Global Shutter
Full‑pixel simultaneous exposure, eliminate motion blur, parasitic light sensitivity 1/50000 for high‑speed capture.
High‑Speed LVDS Output
16 LVDS channels, max [email protected](10‑bit). Support windowing and sub‑sampling for higher frame‑rate.
High‑Dynamic‑Range Image Performance
5.5μm pixel, 60dB standard dynamic range, over 90dB with piecewise‑linear HDR, switchable 10‑bit/12‑bit ADC.
Industrial‑Grade Design
On‑chip gain & offset adjustment, SPI control,‑30℃~+70℃ operating temperature, PGA package supports SMT or socket mounting.
Key Specifications
| Brand | ams OSRAM / CMOSIS |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 95‑Pin PGA (Ceramic μLGA) with Plain Glass |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | CMV2000 |
| Optical Format | 2/3‑Inch |
| Active Array Resolution | 2048 (H) × 1088 (V) (2.2 Megapixels) |
| Pixel Size | 5.5 µm × 5.5 µm |
| Shutter Type | Pipelined Global Shutter |
| Chroma / Output Type | Color (RGB Bayer Filter with Micro‑Lenses) |
| Maximum Frame Rate | 340 fps @ 2048 × 1088 (10‑bit ADC); reduced fps at 12‑bit mode |
| Dynamic Range | 60 dB (Standard) / >90 dB (Piecewise Linear HDR) |
| Output Interface | 16 Low‑Voltage Differential Signaling (LVDS) Channels + Clock; 480Mbps per channel |
| Supply Voltage | 1.8V (Digital Core) / 3.3V (Analog / Pixels) |
| Operating Temperature Range | -30°C to +70°C (Industrial Operating Range) |
| Interface Control | SPI serial interface; supports external exposure trigger |
| Parasitic Light Sensitivity | 1/50000 |
| ADC Resolution | Selectable 10‑bit / 12‑bit |
Typical Applications
- High‑Speed Machine Vision Systems and Industrial Automation
- Automated Optical Inspection (AOI) and Surface Defect Detection
- Intelligent Transportation Systems (ITS), License Plate Recognition, High‑Speed Speed Enforcement
- Scientific Imaging, Motion Analysis, and High‑Definition Metrology
- Barcode & 2D Code Scanning, Biometrics, Broadcast Video Equipment, Robotics Vision
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is CMV2000‑3E5C1PP color or monochrome?
A: It is a color sensor with RGB Bayer filter and micro‑lenses. Suffix “C” = color; “M” = monochrome.
Q2: What is the full‑resolution max frame rate?
A: 340fps @2048×1088 (10‑bit). 12‑bit reduces frame rate. Windowing/sub‑sampling enables higher speeds.
Q3: What package does CMV2000‑3E5C1PP use?
A: 95‑pin ceramic PGA (μLGA) with plain glass. CMV2000 family offers LGA(L), LCC(C) packages; glass options: Plain(P), AR‑coated(A).
Q4: Is CMV2000 pin‑compatible with CMV4000?
A: Yes, pin‑to‑pin compatible. CMV4000 is 4MP (2048×2048), max 180fps full‑resolution, same 5.5µm pixel and hardware interface.
Q5: How to decode CMV2000 part‑number suffix?
A:
• Revision: 3E; E5=standard EPI, E12=NIR‑enhanced EPI
• Color: M=mono, C=color
• Microlenses: 1=with micro‑lenses
• Package: P=PGA, L=LGA, C=LCC
• Glass: P=Plain, A=AR‑coated
Example: CMV2000‑3E5C1PP = 3E revision, E5 EPI, color, micro‑lenses, PGA, plain glass.
Q6: What are key CMV2000 variants?
A:
• CMV2000‑3E5M1PP: Mono, PGA, plain glass
• CMV2000‑3E5C1CA: Color, LCC, AR‑coated glass
• CMV2000‑3E5M1CA: Mono, LCC, AR‑coated glass
• CMV2000‑2E12M1PP: NIR‑enhanced mono, PGA, plain glass
AR‑coated glass improves optical performance; plain glass is cost‑effective.
Q7: What’s difference between PGA / LGA / LCC packages?
A:
• PGA(P): Ceramic pin‑grid array, supports SMT soldering or socket mounting
• LGA(L): Land‑grid array, SMT‑only, no pins, smaller footprint
• LCC(C): Leadless ceramic carrier, SMT‑only, compact size
Same die & electrical specs; only mechanical mounting differs.
Q8: What is E5 vs E12 EPI‑layer difference?
A: E5 for visible‑light applications. E12 is NIR‑enhanced, optimized for near‑infrared machine vision.
Q9: How to get datasheets or bulk quotation?
A: Request datasheets, pinout, register maps and volume pricing via our Quick Inquiry form.
