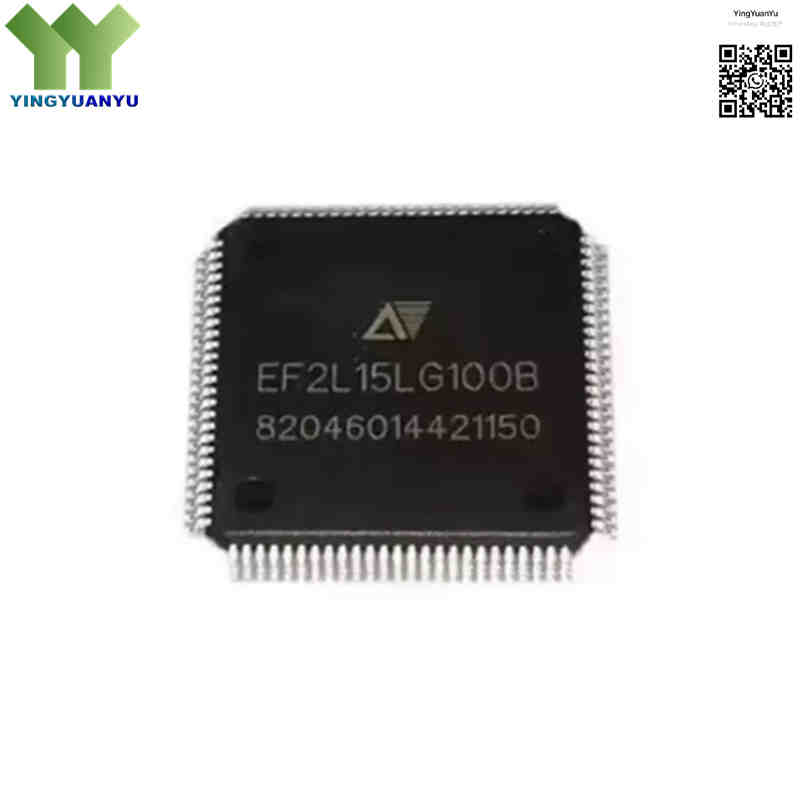

EF2L15LG100B
EF2L15LG100B
| Part Number | EF2L15LG100B |
|---|---|
| Manufacturer | Anlogic Infotech (Anlogic) |
| Category | Integrated Circuits (ICs) > Embedded – FPGAs (Field Programmable Gate Array) |
| Description | ELF2 Series Non-Volatile Instant-On FPGA, 1.5K Logic Elements, Integrated Configuration Flash, 100-LQFP Package, 55nm low power process. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The EF2L15LG100B is a compact non-volatile FPGA from Anlogic ELF2 series, built on 55nm low-power CMOS process. It integrates 1,500 LEs and on-chip configuration Flash to eliminate external boot chips for instant startup. Equipped with BRAM, DSP slices, multi-voltage I/O, LVDS, temperature sensor and hardware encryption, this 100-LQFP chip fits industrial control, power management and display signal conversion applications.
Core Advantages
Non-Volatile Instant-On Single-Chip Design
Built-in Flash enables fast power-on without external ROMs, saving PCB space and BOM cost.
Low-Power 55nm Manufacturing Process
Optimized low-power architecture works well for heat-limited and battery-powered embedded equipment.
Multi-Voltage I/O with LVDS Support
Independent I/O banks support 1.5V/1.8V/2.5V/3.3V LVCMOS/LVTTL and LVDS for flexible signal level conversion.
On-Board Temperature Sensor & Multi-Function PLL
Real-time temperature monitoring plus hardware PLLs deliver stable, configurable high-speed clock signals.
Hardware Bitstream Encryption Protection
Built-in encryption prevents unauthorized reading, cloning and tampering of your design files.
Key Specifications
| Brand & Series | Anlogic ELF2 Series 2nd Gen Compact FPGA |
|---|---|
| Device Type | Non-Volatile Single-Chip FPGA |
| Process Technology | 55nm Low Power CMOS Process |
| RoHS Status | RoHS Compliant / Lead-Free / Green Package |
| EDA/CAD Model | Schematic symbol models, 3D CAD step profiles, and 100-LQFP footprint land patterns are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 100-LQFP (14.00 mm × 14.00 mm × 1.40 mm) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Surface Marking / Silkscreen | EF2L15LG100B / Anlogic logo Marking |
| Logic Elements (LEs) | Approximately 1,500 Logic Elements |
| Embedded Block RAM (BRAM) | Integrated High-Speed Block RAM Blocks |
| DSP Resources | Embedded Hardware DSP Multiplier Slices |
| User I/O Count | Up to 78 Programmable I/O Pins |
| Supported I/O Voltage | 1.5V / 1.8V / 2.5V / 3.3V LVCMOS, LVTTL |
| Differential Interface | LVDS Signal Interface Supported |
| Phase-Locked Loops (PLLs) | Multi-Function On-Chip Hardware PLLs |
| On-Chip Sensor | Built-in Internal Temperature Sensor |
| Non-Volatile Flash | On-Chip Configuration Flash Memory Included |
| Configuration Mode | JTAG & SPI Dual Configuration Modes |
| Bitstream Security | Hardware Bitstream Encryption & Anti-Cloning Protection |
| Core Voltage (VCCINT) | 1.2V Core Logic Supply Rail |
| Operating Temperature Range | -40°C to +85°C (Industrial Grade Specification) |
Typical Applications
- Power supply sequencing, system reset generation, and hardware board management controllers
- Display signal bridging, panel interface conversion (RGB, SPI, MCU interfaces), and LED control
- Industrial programmable logic control (PLC) expansion modules, sensor hubs, and motor drive glue logic
- Communication equipment status monitoring, I/O pin expansion, and protocol conversion
- Smart metering, handheld instrumentation, and portable medical diagnostic devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What’s the biggest advantage of EF2L15LG100B?
A: It adopts single-chip non-volatile Flash architecture, no external boot flash needed. It powers on instantly and reduces peripheral components vs SRAM FPGAs.
Q2: What design software supports this FPGA?
A: Anlogic official Tang Dynasty (TD) suite, supporting Verilog/VHDL compilation, layout routing, timing simulation and JTAG programming.
Q3: How many usable I/O pins on 100-LQFP?
A: Up to 78 programmable I/Os, grouped into independent voltage banks for multi-level signal connection.
Q4: Can I re-program the chip after soldering?
A: Yes. On-chip Flash supports thousands of erase/write cycles via JTAG/SPI for field firmware upgrade.
Q5: What’s the correct operating temperature range?
A: Standard industrial range -40℃ ~ +85℃. The 100℃ data on third-party sites is inaccurate, follow official datasheet for design.
Q6: What I/O voltage standards does EF2L15LG100B support?
A: I/O banks support 1.5V/1.8V/2.5V/3.3V LVCMOS/LVTTL, plus differential LVDS signal transmission.
Q7: Does this chip protect my design IP from copying?
A: Built-in hardware bitstream encryption locks internal Flash, preventing unauthorized reading, cloning and reverse engineering.
Q8: Is EF2L15LG100B lead-free and RoHS compliant?
A: Fully RoHS green lead-free packaging, meets global environmental standards for industrial and consumer devices.
Q9: Can you provide free samples for testing?
A: We offer small quantity samples for prototype verification. Submit the inquiry form to apply for sample quotation and stock lead time.
Q10: What’s the package dimension of 100-LQFP?
A: Package size 14mm × 14mm × 1.4mm, standard SMT surface mount for mass PCB production.
