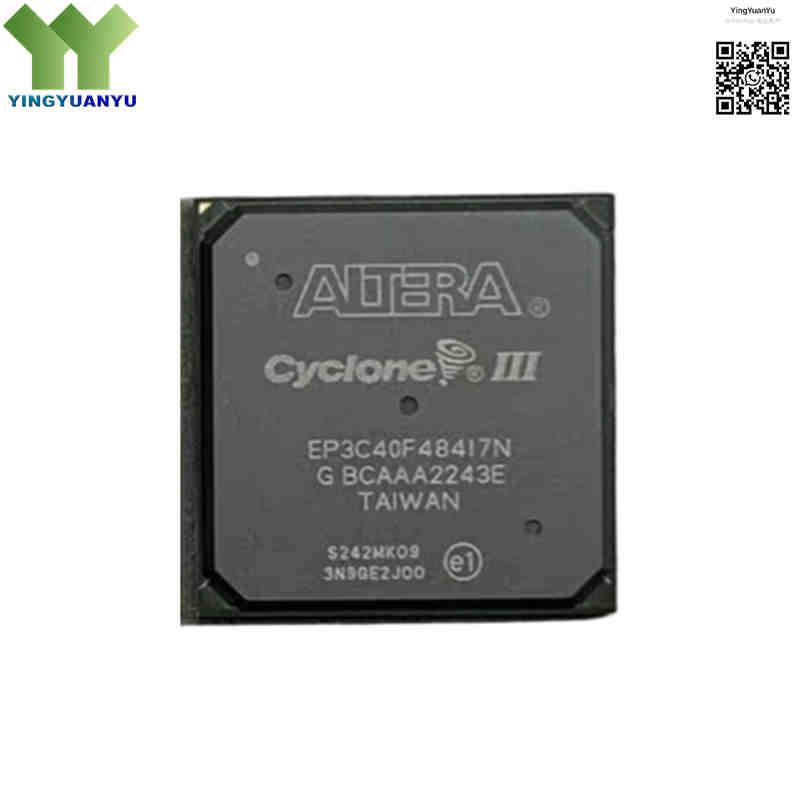

EP3C40F484I7N
EP3C40F484I7N
| Part Number | EP3C40F484I7N |
|---|---|
| Manufacturer | Intel (Formerly Altera) |
| Category | Integrated Circuits (ICs) > FPGAs (Field Programmable Gate Array) |
| Description | Cyclone III FPGA, 39600 Logic Elements, 1161216 RAM Bits, 329 User I/Os, Industrial Grade, 484-FBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The EP3C40F484I7N is a low-power high-performance FPGA of Intel Cyclone III family, built on 65nm cost-effective process. It integrates 39,600 logic elements, 1,161,216-bit embedded memory and 126 hardware multipliers, suitable for digital signal processing, protocol conversion and logic control. This industrial-grade chip works stably at -40℃~+100℃, packaged in 484-FBGA with 329 configurable I/Os, widely used in industrial control, aerospace signal processing, automotive equipment and video processing hardware.
Core Advantages
Optimized Power-to-Performance Footprint
Adopts 65nm low-power process with built-in power management function, achieving high logic density while reducing static and dynamic power consumption.
Abundant Embedded Digital Signal Processing
Equipped with 126 independent 18×18-bit multipliers to accelerate low-latency video filtering, signal modulation and DSP computing.
Robust Industrial Thermal Range Tolerance
Industrial temperature certification ensures stable timing and reliable operation under wide temperature fluctuation environments.
Highly Adaptable Multi-Voltage I/O Flexibility
Multiple independent I/O banks support diverse single-ended and differential signal standards, easy to connect with processors, memories and high-speed sensors.
Key Specifications
| Brand | Intel® Cyclone® III Series (Formerly Altera) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Halogen-Free |
| EDA/CAD Model | Schematic symbol libraries, 3D CAD step footprints, and standard layout constraint parameters are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 484-FBGA (23.00 mm × 23.00 mm) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Surface Marking / Silkscreen | EP3C40F484I7N Marking |
| Number of Logic Elements (LEs) | 39,600 LEs |
| Total Embedded Memory | 1,161,216 Bits (M4K Memory Blocks) |
| Single RAM Block Capacity | 4,096 Bits per M4K RAM block |
| Embedded Multipliers | 126 (18 × 18 Bit Multipliers) |
| Number of User I/Os | 331 Programmable Input/Output Pins |
| Differential I/O Pairs | Up to 136 differential signal pairs |
| Phase-Locked Loops (PLLs) | 4 Internal Hardware PLLs |
| PLL Max Output Clock Frequency | Up to 315 MHz internal clock |
| Core Supply Voltage (VCCINT) | 1.2V typical core voltage infrastructure |
| I/O Supply Voltage Range (VCCIO) | 1.2V / 1.5V / 1.8V / 2.5V / 3.3V multi-standard support |
| Configuration Storage Type | Volatile SRAM, compatible with EPCS serial flash config chips |
| Power Consumption Grade | Low-power 65nm process, low static leakage current |
| Operating Temperature Range | -40°C to +100°C (Industrial-Grade Specification) |
Typical Applications
- Industrial automation controllers, multi-axis motor drives, real-time PLC programmable logic equipment
- Aerospace signal processing boards, radar data acquisition and communication link equipment
- Automotive infotainment, signal gateway and auxiliary vision processing hardware
- Medical ultrasonic imaging equipment and high-precision patient monitoring devices
- Professional video switching matrix, image scaling and high-speed frame capture peripherals
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit inquiry form to apply for datasheets, samples, stock inquiry and bulk quotation, we will reply within 24 hours.
Frequently Asked Questions
Q1: What do the “I7N” suffixes of EP3C40F484I7N stand for?
A: “I” = Industrial temperature range (-40℃ ~ +100℃); “7” = high speed grade in Cyclone III series; “N” = lead-free RoHS compliant package.
Q2: Can the FBGA484 I/O pins support multiple different voltage standards at the same time?
A: Yes. Total 331 I/Os are split into independent power banks, each bank supports 1.2V~3.3V VCCIO, works as multi-chip voltage level shifter.
Q3: What’s the function of the built-in 4 PLLs?
A: PLLs multiply/divide/shift external clock signals, generate stable high-frequency internal clocks from low-cost crystal oscillators.
Q4: Will the FPGA lose program after power off?
A: Cyclone III uses volatile SRAM, so external EPCS serial flash chip is required to reload bitstream when powering on.
Q5: Can I get free test samples of EP3C40F484I7N?
A: Yes, small quantity free samples are available for lab testing, submit your demand via inquiry form.
Q6: What alternative FPGA models can replace EP3C40F484I7N?
A: EP3C40F484C7N (commercial temp version) and EP3C50 series are common substitutes with larger logic resources.
Q7: What tools do I need to program this Cyclone III FPGA?
A: Intel Quartus II software + USB Blaster download cable, compatible with EPCS4/EPCS16 flash storage chips.
Q8: What’s the difference between industrial I grade and commercial C grade?
A: C grade only supports 0℃~85℃, while I grade covers -40℃~+100℃ for harsh industrial/automotive environments.
