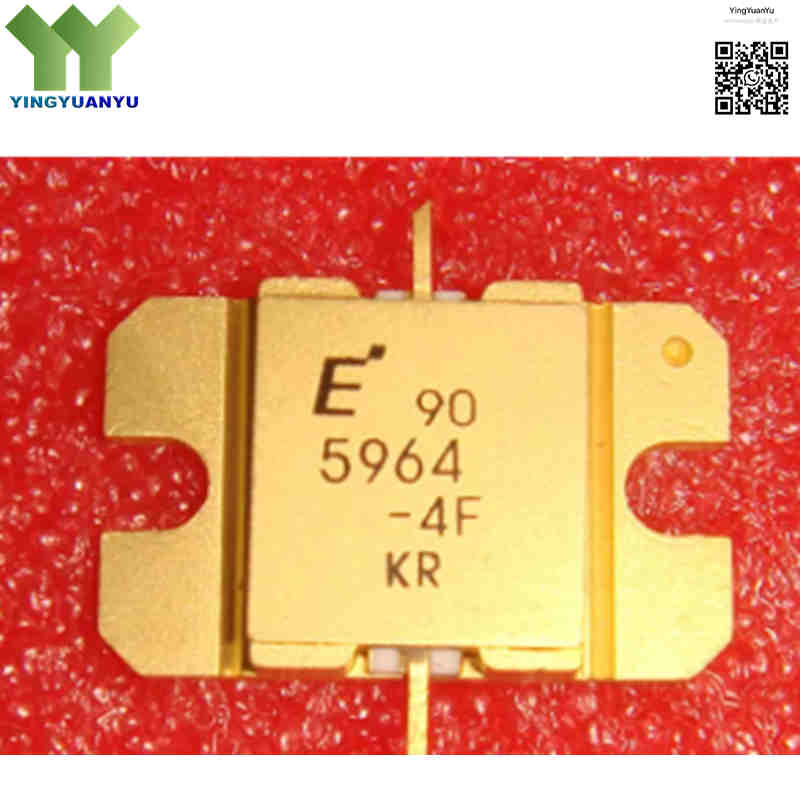

FLM5964-4F
FLM5964-4F
| Part Number | FLM5964-4F |
|---|---|
| Manufacturer | Eudyna Devices / Sumitomo Electric |
| Category | Discrete Semiconductor Products / RF & Microwave Components > GaAs Power FETs |
| Description | 4‑Watt C‑Band Internally Matched GaAs Power FET, 5.9 GHz‑6.4 GHz, Hermetically Sealed IK‑Flange Package, Obsolete for legacy‑system maintenance only. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The FLM5964‑4F is an internally‑matched C‑Band GaAs power FET operating at 5.9‑6.4 GHz for SATCOM uplink and microwave point‑to‑point radio. Typical P1dB 36.5 dBm, gain 10.0 dB, PAE 37%, IM3 ‑46 dBc. Built‑in 50‑Ohm I/O matching simplifies RF layout. Hermetic IK metal‑ceramic flange package delivers good thermal performance. Obsolete device, only for legacy‑equipment repair, not recommended for new designs.
Core Advantages
Built‑in 50‑Ohm Matching
Integrated 50‑Ohm impedance network across full frequency band, no external tuning required and reduces PCB footprint.
High Power & Linear Gain
36.5 dBm typical output power with 10 dB gain, suitable for C‑band satellite transmitter chains.
Low Third‑Order Distortion
‑46 dBc typical IM3 performance, ensures clean output for multi‑carrier satellite communication.
Hermetic Flange Package
IK metal‑ceramic hermetic flange‑mount housing, low thermal resistance and high reliability for legacy RF hardware.
Key Specifications
| Brand | Eudyna Devices / Sumitomo Electric |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Hermetic Metal‑Ceramic Flange Mount |
| Mounting Type | Flange Mount (Bolt Down) / Chassis Mount |
| Surface Marking / Silkscreen | 5964‑4F |
| Operating Frequency Range | 5.9 GHz to 6.4 GHz (C‑Band) |
| Output Power at 1dB Compression (P1dB) | 36.5 dBm / 4.47 W (Typical) |
| Power Gain at 1dB Compression (G1dB) | Typical 10.0 dB |
| Power‑Added Efficiency (PAE) | Typical 37% |
| Third‑Order Intermodulation (IM3) | ‑46 dBc @ Po=25.5 dBm (Typical) |
| Total Power Dissipation | 25 W (Tc=25℃) |
| Drain‑Source Voltage (VDS) | 10 V (Operating), 15 V (Absolute Max Rating) |
| Gate‑Source Voltage (VGS) | ‑0.5 V ~ ‑3.0 V (Operating Bias); Absolute Maximum Rating: ‑5 V |
| Storage / Channel Temperature | ‑65°C to +175°C (Channel Temp Maximum +175°C) |
| Lifecycle Status | Obsolete / Not Recommended for New Designs |
Typical Applications
- C‑Band Satellite Earth Station Transmitter Systems and High Power Amplifiers (HPA)
- SATCOM Uplink Power Amplifiers and Very Small Aperture Terminals (VSAT) Legacy Repair
- Point‑to‑Point Microwave Radio Backhaul Systems
- Radar Systems and Electronic Warfare (EW) Subsystems (Legacy Hardware)
- Test & Measurement Equipment and RF Power Generators
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What operating frequency band is supported by FLM5964‑4F?
A: 5.9 GHz‑6.4 GHz, standard C‑band satellite uplink frequency band.
Q2: Does FLM5964‑4F need external 50‑Ohm matching network?
A: No. Internal 50‑Ohm input/output matching, connect directly to 50‑Ohm microstrip lines.
Q3: How to mount FLM5964‑4F for reliable thermal performance?
A: Bolt the metal‑ceramic flange firmly to heat sink with thermal compound. Keep channel temperature ≤ +175°C.
Q4: Can FLM5964‑4F be adopted for new‑product design?
A: Obsolete / NRND. Stock is only for legacy‑equipment repair. Select modern RF power FET for new projects.
Q5: What pin‑compatible alternatives are available in FLM5964 series?
A: FLM5964‑8F, FLM5964‑12F share same IK‑flange package and frequency band with higher output power. Not direct drop‑in replacement, verify P1dB, gain and DC bias before use.
Q6: What does ‑46 dBc IM3 performance stand for?
A: Typical ‑46 dBc third‑order intermodulation @ Po=25.5 dBm, delivers clean signal for multi‑carrier SATCOM uplink.
Q7: What is absolute maximum gate‑source voltage?
A: Operating VGS bias: ‑0.5V ~ ‑3.0V; max rating ‑5V. Do not exceed ‑5V negative gate voltage to avoid permanent device damage.
Q8: Are there other package options for FLM5964 series?
A: No SMD variant available. All series use identical IK hermetic bolt‑down flange package.
Q9: How to get datasheet, S‑parameter and volume quotation?
A: Submit Quick Inquiry form for datasheet, S‑parameter file, stock check and bulk price.
