| Part Number | FPD1000AS |
|---|---|
| Manufacturer | Filtronic |
| Category | Discrete Semiconductor Products > Transistors > FETs > RF FETs |
| Description | High Linearity Medium Power GaAs pHEMT Transistor, DC to 5 GHz, 1.26W P1dB, SOT‑89 Surface Mount Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The FPD1000AS is a Filtronic AlGaAs/InGaAs GaAs pHEMT transistor, covering DC‑5 GHz. It delivers +31 dBm (1.26 W) P1dB output power and 50% PAE at 1.8 GHz. Housed in SOT‑89 SMT package, it suits high‑linearity driver/output stages for cellular base stations, microwave backhaul and wireless communication systems.
Core Advantages
High Linearity & Power
Delivers +31 dBm P1dB and +43 dBm OIP3, ideal for high‑linearity wireless transmitter driver and power stages.
Wide Bandwidth
Operates from DC to 5 GHz, supporting multi‑band cellular and microwave communication applications.
Good Efficiency
50% power‑added efficiency reduces power consumption and simplifies thermal design.
Standard SOT‑89 Package
3‑pin SOT‑89 surface‑mount package with exposed tab, supports automated SMT assembly and good heat dissipation.
Key Specifications
| Brand | Filtronic |
|---|---|
| RoHS Status | RoHS Compliant / Green (Lead‑Free) |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | SOT‑89 |
| Mounting Type | Surface Mount (SMT) |

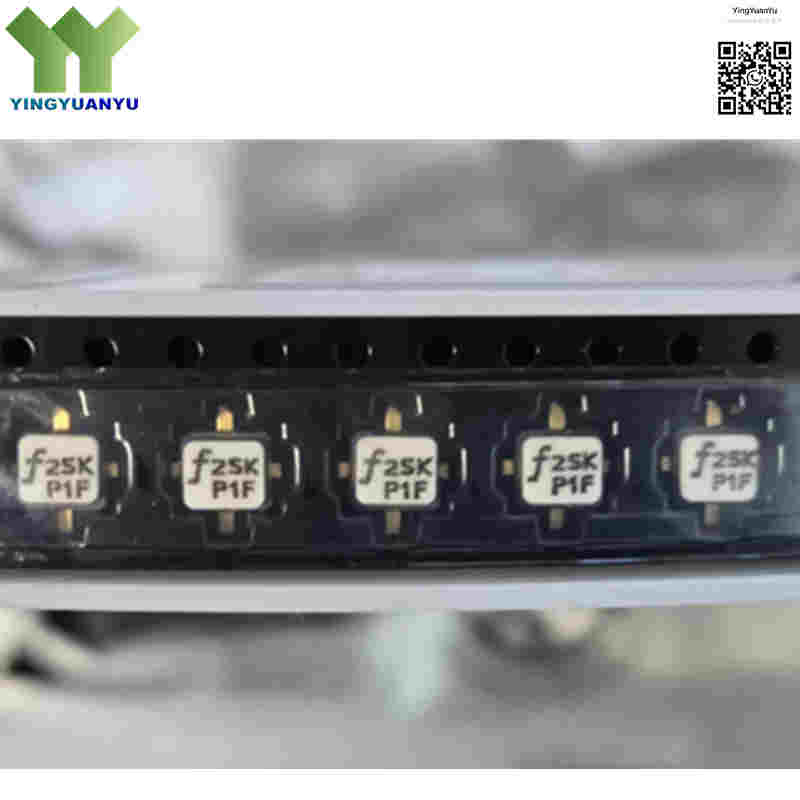

| Surface Marking / Silkscreen | P1F Marking |
| Transistor Technology | AlGaAs/InGaAs GaAs pHEMT |
| Frequency Range | DC to 5.0 GHz |
| Output Power at P1dB | +31 dBm (1.26 W Typ. @ 1.8 GHz) |
| Power‑Added Efficiency (PAE) | 50% (Typ. @ 1.8 GHz) |
| Power Gain | 15 dB (Typ. @ 1.8 GHz) |
| Output IP3 (OIP3) | +43 dBm (Typ. @ 1.8 GHz) |
| Drain‑Source Voltage (Vds) | 8.0 V DC Max |
| Gate‑Source Voltage (Vgs) | -3.0 V to +0.5 V DC |
| Operating Junction Temperature | Up to +175°C |
| Recommended Vds Operating Range | 5 V ~ 8 V DC (Reference upper limit 10V) |
| Quiescent Drain Current (Idq) | 200 mA Typical (Class‑AB Bias) |
| Total Power Dissipation (PTOT) | 6 W (Derating Required) |
| Storage Temperature | -40°C ~ +150°C |
Typical Applications
- Cellular Base Station Infrastructure (GSM, CDMA, W‑CDMA, LTE Driver Stages)
- Point‑to‑Point and Point‑to‑Multipoint Microwave Backhaul Radios
- VSAT Ground Terminals and Satellite Communications Systems
- Wireless Local Loop (WLL) and WiMAX Power Amplifiers
- RF Test & Measurement Equipment and Signal Sources
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the main function of FPD1000AS?
A: It is a medium‑power GaAs pHEMT RF transistor, used as high‑linearity driver or power amplifier for wireless systems up to 5 GHz.
Q2: What output power can FPD1000AS deliver?
A: Typical P1dB output power is +31 dBm (1.26 W), with 15 dB gain at 1.8 GHz.
Q3: What package is FPD1000AS?
A: 3‑pin SOT‑89 SMT package with exposed metal tab for PCB thermal grounding.
Q4: How to get datasheets, S‑parameters or volume quotes?
A: Documents, stock check and bulk pricing are available via our Quick Inquiry form. We will reply within 24 hours.
Q5: Are there direct drop‑in alternatives for FPD1000AS?
A: No pin‑to‑pin direct replacement. Similar performance can be found in other Filtronic SOT‑89 pHEMTs. Contact our team for substitution suggestions based on your frequency and power requirements.
Q6: What does suffix “AS” mean in FPD1000AS?
A: “AS” denotes SOT‑89 surface‑mount package for FPD1000 series. Different suffixes mean different packages; always verify full part number before ordering.
Q7: Why do search results show TO‑59 package for FPD1000AS?
A: FPD1000AS is SOT‑89 only. TO‑59 belongs to other suffix variants (FPD1000AQ / FPD1000ASSQ). They are not pin‑compatible and cannot be swapped directly.
Q8: What are key operating precautions?
A: This is depletion‑mode pHEMT. Apply negative gate‑source bias before drain voltage. Do not exceed maximum Vds rating of 8 V DC.
Q9: What’s the difference between FPD1000AS and other FPD1000 variants?
A: FPD1000AS is SOT‑89 SMT version. Other variants use different packages or gate widths, with different power and thermal performance. Refer to official datasheet for each model.
Q10: Can FPD1000AS work above 5 GHz?
A: Specified for DC‑5 GHz. Performance degrades sharply beyond 5 GHz; operation above 5 GHz is not recommended.
