HD64F2364VTE34V
HD64F2364VTE34V
| Part Number | HD64F2364VTE34V |
|---|---|
| Manufacturer | Renesas Electronics (Formerly Hitachi) |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers |
| Description | H8S/2300 group H8S/2364 subseries 16-bit CISC microcontroller running at 34 MHz, integrating 384 KB Flash memory, TQFP-120 package. |
| Stock Status | In Stock |
| Origin | Original Factory New |
Product Overview
The HD64F2364VTE34V is a reliable high-density 16-bit microcontroller from Renesas H8S/2300 series, originally developed by Hitachi. It adopts optimized H8S/2000 CISC core with max 34 MHz operating clock, delivering efficient real-time computing and fast interrupt response. Equipped with 384 KB on-chip flash and 32 KB SRAM, it supports large firmware programs and real-time data buffer without external memory. Integrated peripherals include 10-channel 10-bit ADC, dual 8-bit DAC, multi-channel programmable TPU timers and multiple SCI serial communication ports. Packaged in 120-pin thin TQFP SMD housing, it is widely applied for automotive auxiliary modules, factory automation equipment, medical diagnostic instruments and legacy industrial control hardware.
Core Advantages
High-Efficiency H8S/2000 CISC Core Architecture
Register-based optimized instruction set completes complex operations within fewer clock cycles, achieving fast real-time interrupt processing performance.
Large On-Chip Memory Resources
384 KB flash memory and 32 KB built-in SRAM provide sufficient storage for complex control logic and multi-channel real-time data recording, eliminating extra external memory chips.
Full Set of Multi-Function Timing Peripherals
Integrated multi-channel 16-bit Timer Pulse Unit (TPU) can generate precise PWM signals and capture complex input waveform signals for motor and power control.
Mature Stable Industrial Legacy Design
Long-life mature chip architecture with stable anti-interference performance, suitable for long-cycle critical equipment and legacy system maintenance projects.
Key Specifications
| Brand | Renesas Electronics H8S / 2364 Advanced Microcontroller Series (Former Hitachi) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free, meets global environmental standards |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and TQFP-120 PCB footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | TQFP-120 (14mm × 14mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead Reflow Soldering) |

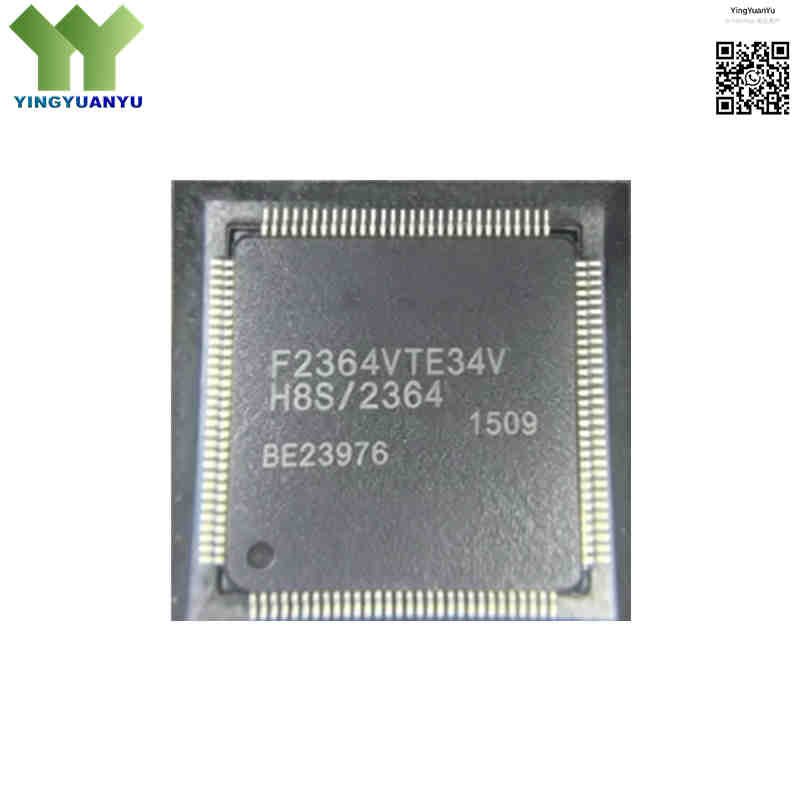

| Surface Marking / Silkscreen | F2364VTE34V Marking |
| Core Architecture Processor | 16-Bit H8S/2000 CISC Processing Core |
| Maximum Clock Frequency Rate | Up to 34 MHz core operating frequency |
| Flash Program Memory Size | 384 KB Embedded Flash Memory |
| Internal Data RAM Capacity | 32 KB High-Speed Static SRAM |
| General GPIO Pins | 92 programmable general-purpose I/O pins |
| Analog Processing Block | 10-Channel 10-bit ADC, 2-Channel 8-bit DAC analog peripherals |
| Communication Interfaces | 4 × SCI serial communication interfaces, support synchronous & asynchronous UART mode |
| Timer Peripherals | TPU Timer Pulse Unit, 16-bit multi-channel PWM generator, Watchdog Timer |
| Debug Interface | On-Chip Debug Interface (OCD) for program download & real-time debugging |
| Programming Method | In-System Programming (ISP) via SCI serial port |
| Low Power Modes | Active Mode, Sleep Mode, Stop Mode power saving options |
| Operating Core Voltage (VCC) | 3.0V to 3.6V standard operating supply voltage |
| Operating Temperature Range | -20°C to +75°C (Commercial extended temperature grade) |
Typical Applications
- Automotive Engine Auxiliary ECUs, Vehicle Body Control Electronics, Dashboard Driver Modules
- Industrial PLC Controllers, Factory Automation Equipment, Servo Motor Drive Regulators
- Grid Power Monitoring Equipment, Power Inverter Control and Energy Telemetry Nodes
- Professional Medical Diagnostic Devices, Fluid Analyzers and Patient Monitoring Hardware
- Legacy Telecom Equipment, Industrial Printing Machinery and Long-Term Embedded Control Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Request datasheets, free samples, stock verification or bulk quotation via our inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your stock HD64F2364VTE34V 100% genuine original chip?
A: All HD64F2364VTE34V microcontrollers we supply are 100% brand new original Renesas / Hitachi factory parts. Each batch passes strict incoming quality inspection and is packed in factory anti-static trays to protect TQFP-120 pins from damage.
Q2: What does the suffix “34V” stand for in HD64F2364VTE34V?
A: The “34” marks maximum 34 MHz operating clock speed, while “V” represents standard 3.0~3.6V low voltage supply specification for this TQFP package variant.
Q3: Does HD64F2364VTE34V support in-circuit flash programming?
A: Yes, it supports full In-System Programming (ISP) through SCI serial ports. Engineers can update firmware, calibrate sensor parameters and patch program codes directly on assembled PCBs without desoldering the chip.
Q4: How to get complete register datasheets and bulk volume pricing?
A: Fill out the inquiry form on this page, note your target order quantity and project requirements. Our embedded MCU technical sales team will send full official datasheet resources and customized quotation within 24 hours.
