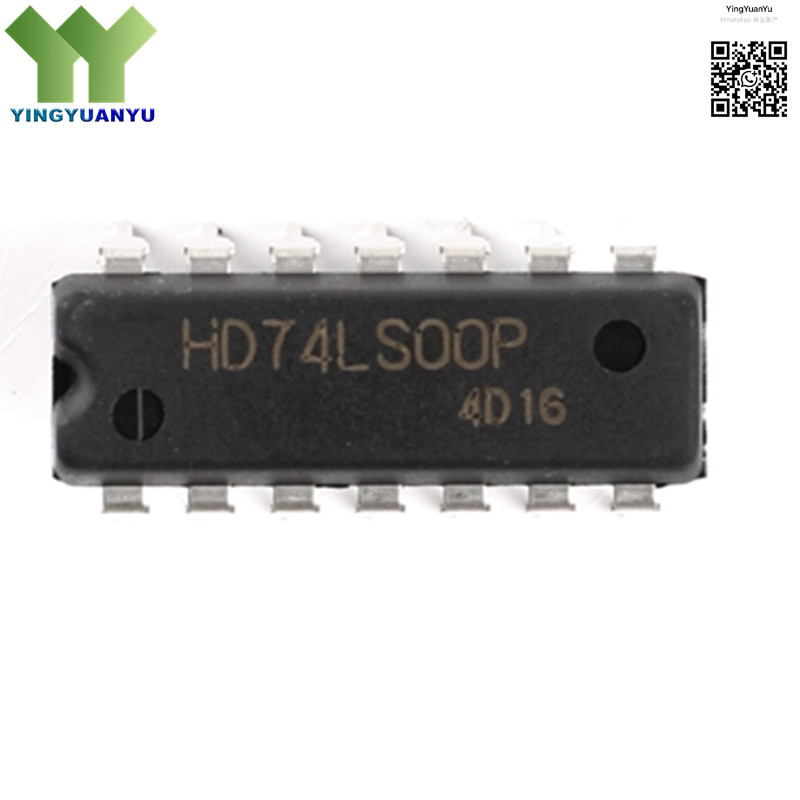

HD74LS00P
HD74LS00P
| Part Number | HD74LS00P |
|---|---|
| Manufacturer | Hitachi / Renesas Electronics |
| Category | Logic Gates; Quad 2-Input NAND Gates |
| Description | Quad 2-Input NAND Gate, LS-TTL Logic, 4.5V-5.5V, DIP-14 Through-Hole Package |
Product Overview
The HD74LS00P is a high-performance LS-TTL integrated circuit featuring four independent 2-input NAND gates. It is designed for general-purpose digital logic applications, offering fast switching speed, low power consumption, and excellent noise immunity. Operating at a standard 5V supply voltage, this device provides reliable logic operation and compatibility with a wide range of TTL and CMOS systems. Housed in a rugged DIP-14 through-hole package, it is ideal for prototyping, educational use, industrial control systems, and legacy digital circuit designs requiring robust through-hole mounting.
| Key Specifications | |
|---|---|
| RoHS Status | Non-RoHS (Legacy Through-Hole Device) |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Hitachi / Renesas Electronics |
| Logic Type | LS-TTL (Low-Power Schottky) |
| Gate Configuration | Quad 2-Input NAND Gates |
| Supply Voltage | 4.5V ~ 5.5V (5V Nominal) |
| Package Type | DIP-14 (Through-Hole) |
| Operating Temperature | 0°C to +70°C |
Typical Applications
- General-Purpose Digital Logic Circuits
- Industrial Control Systems
- Educational Electronics & Prototyping
- Legacy Digital System Replacement
- Timer & Oscillator Circuits
- Data Processing & Control Logic
- Consumer Electronics Digital Modules
- Test & Measurement Equipment Logic
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
