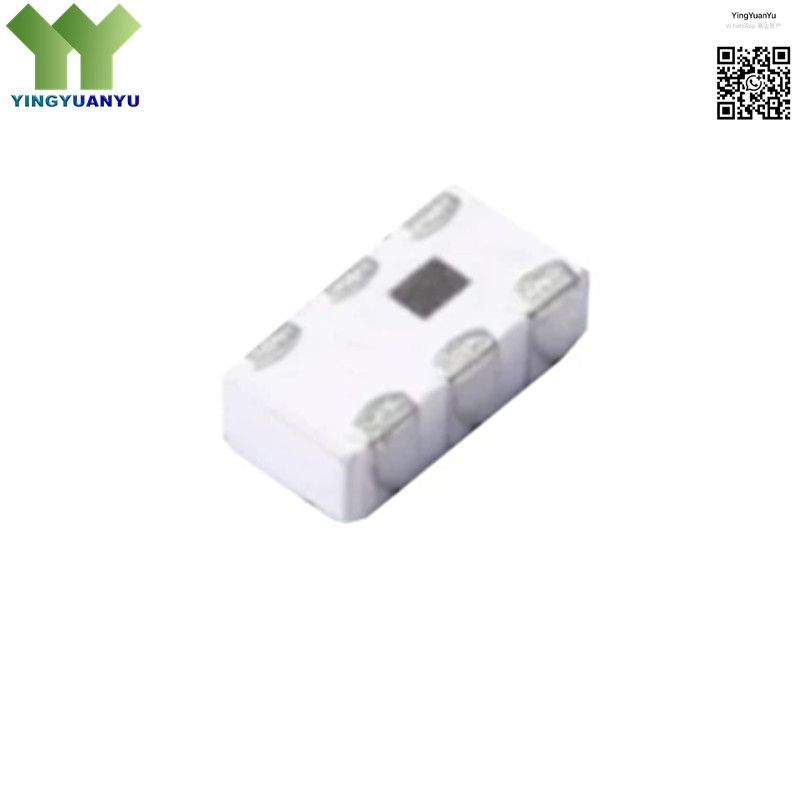

HFCN-3100+
HFCN-3100+
| Part Number | HFCN-3100+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Filters; High Pass Filter |
| Description | 50Ω High Pass Filter, Cutoff Frequency 3100 MHz, RoHS Compliant, SMD-6P,3.2×1.6mm Package |
Product Overview
The HFCN-3100+ is a high-performance 50-ohm surface mount high pass filter designed for RF and microwave signal conditioning systems. It features a precise cutoff frequency at 3100 MHz, low insertion loss in the pass band, excellent out-of-band rejection, and consistent performance across wide operating conditions. The device delivers superior electrical characteristics, high reliability, and compact form factor for seamless integration into high-frequency communication, test equipment, and wireless systems. Fully RoHS-compliant, it supports reliable high-frequency signal filtering for professional RF applications.
| Key Specifications | |
|---|---|
| Brand | Mini-Circuits |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | SMD-6P,3.2×1.6mm Package |
| Mounting Type | Surface Mount (SMD) |
| Cutoff Frequency | 3100 MHz |
| Impedance | 50 Ω |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- RF & Microwave Signal Conditioning
- High-Frequency Communication Systems
- Wireless Transceiver Front-Ends
- Test & Measurement Instrumentation
- Signal Harmonic Suppression
- RF Receiver & Transmitter Modules
- High Frequency PCB Filtering
- Industrial RF Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
