HMC511LP5ETR
HMC511LP5ETR
| Part Number | HMC511LP5ETR |
|---|---|
| Manufacturer | Analog Devices Inc. (ADI) / Hittite |
| Category | RF/IF and RFID > RF Mixers / MMIC VCOs with Half-Frequency Output |
| Description | MMIC Voltage Controlled Oscillator (VCO) with Divide-by-2, Dual Band:4.525 GHz~5.075 GHz / 9.05 GHz~10.15 GHz, 32-Lead QFN (5×5 mm) Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HMC511LP5ETR is a high-performance GaAs HBT MMIC VCO from Analog Devices (formerly Hittite). This dual-band oscillator covers 9.05–10.15 GHz fundamental frequency, with built-in divide-by-2 circuit offering 4.525–5.075 GHz half-frequency output. It operates at nominal 5V supply (4.75V~5.25V) and features low phase noise of -115 dBc/Hz @100 kHz offset. Housed in a compact 5×5 mm 32-VFQFN package with exposed thermal pad, no external resonator needed, suitable as local oscillator for microwave radio, VSAT, test instruments and radar systems.
Core Advantages
Integrated Divide-by-2 Half-Frequency Output
Built-in frequency divider generates 4.525~5.075 GHz signal, simplifying PLL design and lowering requirements for high-frequency prescalers.
Excellent Low SSB Phase Noise
GaAs HBT process achieves -115 dBc/Hz @100 kHz offset, reducing signal jitter and improving system signal-to-noise performance.
Fully Integrated Single-Chip VCO
Onboard resonator, varactor diode and buffer amplifier, removes extra resonant components and saves PCB layout space.
Compact Thermal Enhanced Package
5×5 mm SMD 32-VFQFN with exposed ground pad, delivering superior high-frequency grounding and heat dissipation.
Key Specifications
| Brand | Analog Devices Inc. (ADI) / Hittite |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 32-VFQFN(5mm x5mm x 1mm ) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

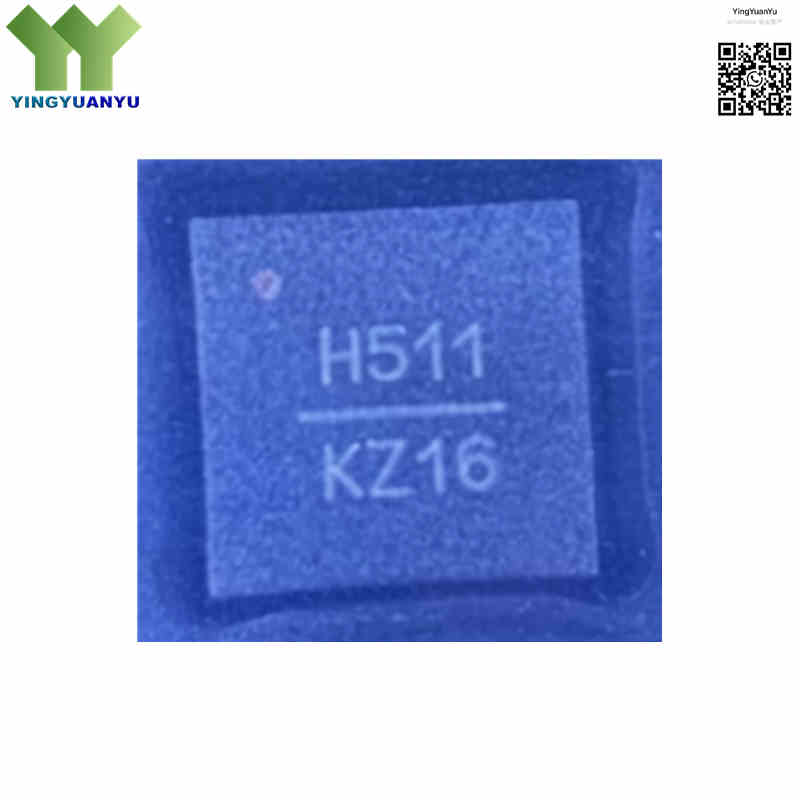

| Surface Marking / Silkscreen | H511 Marking |
| Frequency Range (Fundamental) | 9.05 GHz to 10.15 GHz |
| Frequency Range (Half Frequency) | 4.525 GHz to 5.075 GHz |
| Output Power | Low band: 8±3 dBm, High band: 12.5±3.5 dBm |
| SSB Phase Noise | -115 dBc/Hz (Typical at 100 kHz offset, Vtune=5V) |
| Tuning Voltage Range | 2.0 V to 13.0 V |
| Tuning Sensitivity | 15 MHz/V (Typical) |
| 2nd Harmonic Suppression | 15 dBc (Typical) |
| Supply Voltage (Vcc) | +5 V (Nominal), Operating Range: 4.75 V ~ 5.25 V |
| Supply Current (Icc) | 265 mA (Typical), Maximum 300 mA |
| Operating Temperature Range | -40°C to +85°C |
| Moisture Sensitivity Level | MSL 3 (168 Hours) |
| Packaging Format | Tape & Reel (“ETR” designation = 7-inch reel / 500 pcs) |
Typical Applications
- Point-to-point and point-to-multipoint microwave radios
- VSAT satellite communication systems and ground earth stations
- Test and measurement equipment, spectrum analyzers, signal generators
- Military radar, electronic warfare (EW), avionics systems
- Local Oscillator (LO) for high-frequency RF mixer circuits
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix “ETR” mean in HMC511LP5ETR?
A: LP5 = 5×5mm QFN package; E = RoHS lead-free; TR stands for tape & reel packaging (7-inch reel, 500 pcs/reel).
Q2: What is the function of the built-in divide-by-2 circuit?
A: It outputs 4.525~5.075 GHz low-frequency signal, allowing designers to adopt low-cost PLL chips instead of expensive high-frequency prescalers.
Q3: What tuning voltage covers the full frequency range?
A: 2.0V ~ 13.0V tuning voltage is required to sweep complete 9.05–10.15 GHz fundamental band.
Q4: Must the exposed thermal pad be fully soldered?
A: Yes. The exposed pad serves as RF ground and heat sink. Complete soldering with thermal vias is required for stable RF performance and heat dissipation.
Q5: Are there pin-to-pin compatible replacement models?
A: No official direct drop-in replacement from ADI. Alternative option: HMC510LP5E (X-band VCO, verify frequency range). Qorvo / Skyworks equivalent VCOs need PCB redesign and circuit tuning.
Q6: Can this VCO work under 3V power supply?
A: Not supported. Nominal supply voltage is 5V (4.75V~5.25V). Low voltage causes unstable oscillation, insufficient output power and frequency drift.
Q7: Difference between HMC511LP5E and HMC511LP5ETR?
A: Same die and electrical parameters. LP5E is tray packing; LP5ETR is tape & reel for automated SMT assembly.
Q8: What storage rules should be followed?
A: This device is MSL 3 moisture-sensitive. Bake process is mandatory once the dry bag is opened over 168 hours before soldering.
Q9: Can I use only part of the frequency tuning range?
A: Yes. You can limit Vtune voltage to lock partial frequency band, but keep voltage within 2V~13V to avoid device damage.
