HTL7G06S009P
HTL7G06S009P
| Part Number | HTL7G06S009P |
|---|---|
| Manufacturer | WATECH |
| Description | N-Channel LDMOS RF Power Transistor, 8W, 1.8MHz-1000MHz, For Intercom & Private Network Radio |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
HTL7G06S009P is WATECH N-channel enhancement mode LDMOS RF power transistor. Designed for 1.8MHz–1000MHz VHF/UHF radio equipment. It delivers saturated output power up to 8W under 7.2V supply, featuring high linearity, stable gain and excellent PAE. Widely adopted in handheld radios, vehicle intercom, repeater and shortwave transmitting front-end.
Core Advantages
High Efficiency & Good Linearity
Maximum power added efficiency reaches 60%, low distortion, suitable for analog & digital communication modulation.
Wide Operating Frequency Band
Covers 1.8MHz to 1000MHz, fully compatible with VHF and UHF private network communication frequency bands.
Stable Performance Under Low Voltage
Designed for 3.6V~7.2V low voltage power supply, perfect for battery-powered portable wireless devices.
Compact SMD Packaging
SOT-89-3L surface-mount package, saves PCB space and supports automated SMT assembly.
Key Specifications
| Brand | WATECH |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD Resource | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | SOT-89-3L (Surface Mount) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

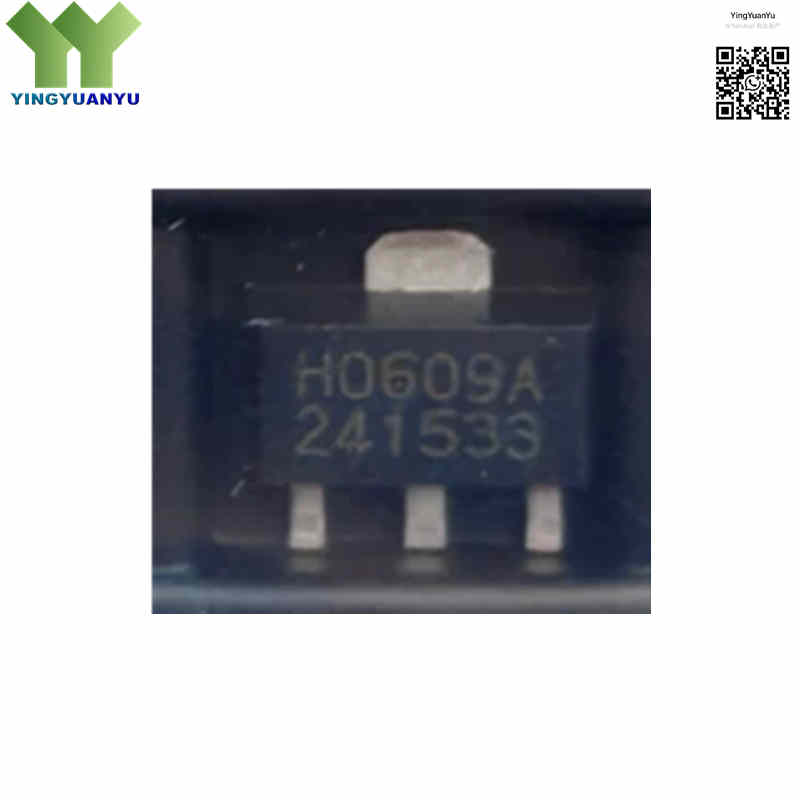

| Surface Marking / Silkscreen | H0609A Marking |
| Transistor Technology | N-Channel Enhancement Mode LDMOS |
| Operating Frequency Range | 1.8 MHz – 1000 MHz (VHF/UHF Coverage) |
| Saturated RF Output Power | 8 W (39.03 dBm) |
| Operating Drain Voltage | 3.6 V – 7.2 V DC (Typical:7.2V) |
| Quiescent Drain Current | 200 mA |
| Typical Power Gain | 16.0 dB |
| Max Power Added Efficiency (PAE) | Up to 60% |
| Operating Junction Temperature | -40°C to +150°C |
| Packaging Format | Tape & Reel / Anti-Static Tray Packaging |
Typical Applications
- Handheld & Vehicle-mounted walkie talkies
- Radio repeaters and private network communication equipment
- VHF / UHF broadcast transmitting front modules
- Short range wireless data transmission devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipment Lead Time | Ship within 1-2 working days |
| Available Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Options | T/T, PayPal, Credit Card, Western Union |
Technical Support
Please submit inquiries via contact form if you need datasheets, sample requests, BOM quotation or matching circuit reference. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the primary application for the WATECH HTL7G06S009P?
A: HTL7G06S009P is an N-channel LDMOS RF transistor for VHF/UHF portable equipment, applied to walkie-talkies, vehicle radios and private network transmitting front-end.
Q2: What are the RF output power and operating voltage specifications?
A: It delivers 8W saturated RF output power at 7.2V typical drain voltage, operating voltage range: 3.6V ~ 7.2V DC.
Q3: How to handle thermal dissipation for HTL7G06S009P?
A: It adopts SOT-89-3L package. Sufficient PCB copper area layout is required for heat dissipation for stable continuous operation.
Q4: Can HTL7G06S009P be used for cellular base stations?
A: Not recommended. It is low-voltage portable radio device below 1GHz. 28V base station RF transistors cannot be interchanged with it.
Q5: What alternatives can replace HTL7G06S009P?
A: Other SOT-89 packaged 7V 8W LDMOS transistors are optional. Input and output circuits need re-matching. Send your schematic to check compatibility.
Q6: Can this transistor work above 7.2V?
A: No. Long-term operation exceeding the rated voltage will lead to permanent chip damage.
Q7: How to obtain datasheets and bulk quotations?
A: Fill out and submit the Quick Inquiry form with your project demands. Our sales team will reply within 24 hours.
