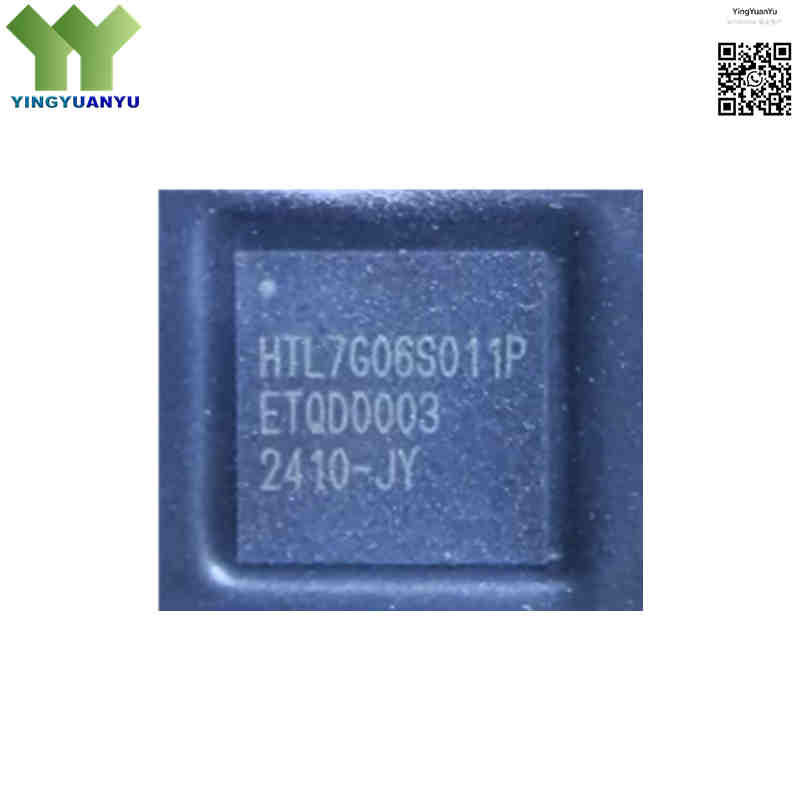

HTL7G06S011P
HTL7G06S011P
| Part Number | HTL7G06S011P |
|---|---|
| Manufacturer | WATECH (Watech Electronics) |
| Category | Discrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFETs |
| Description | 11W LDMOS RF Power Transistor, 1.8MHz-600MHz VHF/UHF Broadband Operation, DFN/QFN 5×5mm Surface Mount Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The HTL7G06S011P is an LDMOS RF power transistor from Watech Electronics, designed for high-efficiency RF amplification for VHF/UHF communication equipment. Operating at 1.8MHz–600MHz, it delivers 11W saturated output power under a typical 7.2V supply. Suitable for CW and pulse operation, it features high power-added efficiency and low leakage current. Housed in compact DFN/QFN 5×5mm SMD package with exposed thermal pad, it supports automatic assembly and offers stable performance for land mobile radio, broadcast driver stages and industrial RF devices.
Core Advantages
VHF/UHF Wideband Performance
Consistent gain and power output across 1.8MHz~600MHz band, ideal for two-way radio and shortwave communication.
High Power Added Efficiency
Adopts mature LDMOS technology with typical PAE ≥60%, lowering power consumption and heat emission during continuous operation.
Compact SMD Packaging
DFN/QFN 5×5mm package with exposed thermal pad, compatible with automatic PCB mounting and simplifies thermal layout design.
Excellent Stability & Low Leakage
Drain leakage current ≤10μA, supports CW & pulse mode, ensuring long-term reliability for outdoor communication hardware.
Key Specifications
| Brand | WATECH (Watech Electronics) |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | DFN/QFN 5×5mm |
| Mounting Type | Surface Mount Device (SMD/SMT) |
| Surface Marking / Silkscreen | HTL7G06S011P Marking |
| Transistor Technology | LDMOS (Lateral Diffused Metal Oxide Semiconductor) |
| Frequency Band | 1.8 MHz ~ 600 MHz (VHF / UHF) |
| Saturated Output Power | 11 W (Typ. @7.2V, approx. 40.4dBm) |
| Input Power | 0.4 W (26.02 dBm) |
| Nominal Drain Voltage ($V_{\text{DS}}$) | 7.2 V (Typical) |
| Quiescent Drain Current | 300 mA (Typical) |
| Power Added Efficiency (PAE) | ≥60% (Typical) |
| Drain Leakage Current | ≤ 10 μA |
| Operation Mode | CW (Continuous Wave) / Pulse |
| Operating Temperature Range | -10°C to +130°C |
| Storage Temperature Range | -55°C to +150°C |
| Packaging Format | Tape & Reel |
Typical Applications
- Land Mobile Radio (LMR) equipment
- VHF/UHF two-way communication systems
- Broadcast transmitter driver amplifier stages
- Shortwave and wireless data transmission devices
- Industrial RF power amplifiers for ISM band
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What frequency band is HTL7G06S011P designed for?
A: Optimized for VHF/UHF 1.8MHz~600MHz, widely used for land mobile radio and broadcast driver circuits.
Q2: What is the recommended operating voltage for this RF transistor?
A: Typical drain voltage is 7.2V. Do not exceed maximum rating to prevent permanent damage.
Q3: What package does HTL7G06S011P adopt?
A: DFN/QFN 5×5mm SMD package with exposed thermal pad. PDFN5×5 is the equivalent package marking.
Q4: Does this transistor support continuous wave (CW) operation?
A: Yes, it works for both CW and pulse operation modes.
Q5: Are there compatible alternative LDMOS transistors for replacement?
A: Alternatives need to match frequency, power, voltage and package. Most devices cannot be pin-to-pin swapped. Send your circuit specs for suitable recommendations.
Q6: What thermal design tips for this component?
A: Fully solder exposed pad to PCB GND plane and use thermal vias to lower thermal resistance, keep junction temperature within rated range.
Q7: Can I replace other brand RF transistors directly without circuit adjustment?
A: Direct plug-and-play replacement is not guaranteed. Impedance and gain differ between brands, re-tuning matching network is usually required.
