HTN7G38S007P

Add to quote

HTN7G38S007P

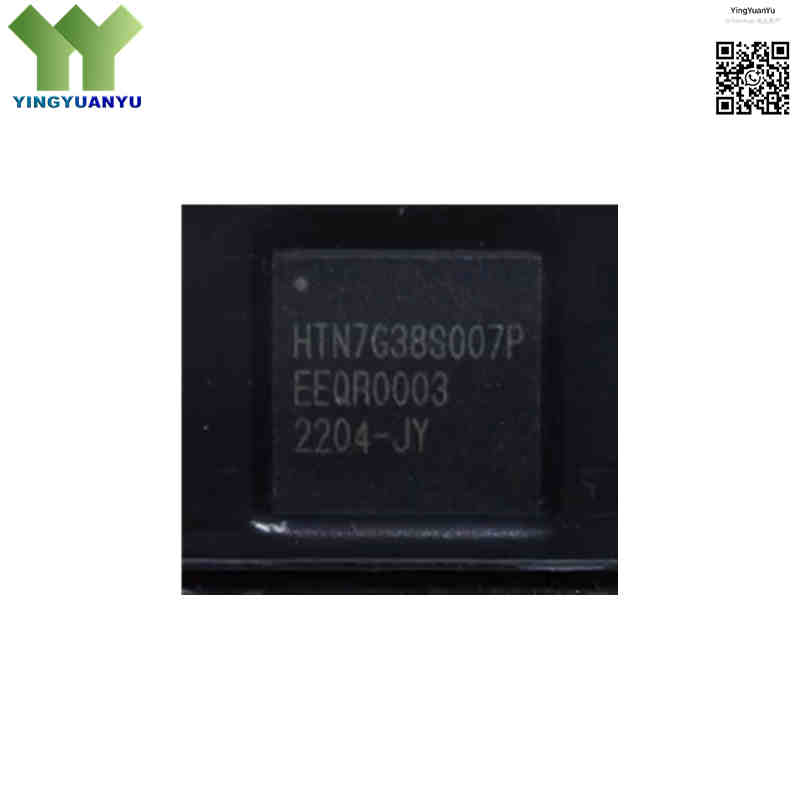

Part NumberHTN7G38S007P
ManufacturerWATECH (Huatai Electronics)
CategoryDiscrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFETs
Description7W LDMOS RF Power Transistor, 700MHz-3800MHz Wide Frequency Band, 28V Operation, PDFN 5×5mm Flangeless Surface Mount Package.
Stock StatusIn Stock
OriginOriginal Factory

Product Overview

The HTN7G38S007P is a wideband LDMOS RF power transistor manufactured by WATECH. Operating from 700MHz to 3800MHz, it delivers 7W typical saturated output power at 28V supply. Suitable for 2G/3G/4G/Sub-6G 5G communication infrastructure, signal repeaters and wireless driver amplifiers. It adopts PDFN 5×5mm flangeless SMD package with exposed thermal pad. No internal RF matching; external input and output matching circuits are required.

Core Advantages

700MHz~3800MHz Ultra-Wideband Coverage

Supports 2G,3G,4G and Sub-6GHz 5G, compatible with multiple wireless communication projects.

Stable 7W Output @ 28V Supply

Reliable saturated power, ideal for pre-driver and driver amplifier stages.

Compact PDFN 5×5mm Flangeless Package

Small SMD footprint with exposed pad, convenient automatic SMT assembly and excellent heat dissipation.

High Load Mismatch Ruggedness

Built-in enhanced ESD protection, stable operation under 10:1 unbalanced load mismatch.

Key Specifications

BrandWATECH
RoHS StatusRoHS Compliant / Lead-Free / Green
EDA/CADSymbol, Footprint & 3D Model Available
Warranty1-Year Standard Quality Warranty
Package / CasePDFN (5×5mm Flangeless)
Mounting TypeSurface Mount Device (SMD/SMT)
Surface Marking / SilkscreenHTN7G38S007P Marking
Transistor TechnologyLDMOS (Lateral Diffused Metal Oxide Semiconductor)
Frequency Band700 MHz ~ 3800 MHz
Saturated Output Power (Psat)7 W (Typical at 28V)
Operating Drain Voltage (VDS)28 V DC (Operating Range: 0~28V)
Drain-Source Breakdown Voltage (Vdss)Min. 65V
Gate-Source Voltage (Vgs)-5 V ~ +10 V
Quiescent Drain Current (Idq)70mA ~ 100mA (Adjustable)
Thermal Resistance (RθJC)2.9 °C/W
Operating Case Temperature (Tc)-40°C ~ +150°C
Storage Temperature-55°C ~ +150°C
ESD ProtectionEnhanced built-in ESD protection circuit
Operation ModeContinuous Wave (CW) / Pulsed
Packaging FormatTape & Reel

Typical Applications

  • 2G/3G/4G/5G Sub-6GHz cellular base station driver amplifier
  • Mobile communication signal repeater & signal enhancement equipment
  • Wireless intercom system & RF transmit module power stage
  • Broadband wireless access and private network radio equipment
  • Wideband general-purpose RF power amplification projects

Order & Shipping Info

Minimum Order Quantity (MOQ)1 Piece
Shipping TimeShipped within 1-2 business days
Delivery Time3-7 working days worldwide
Shipping MethodsDHL, UPS, FedEx, EMS
Payment MethodsT/T (Bank Transfer), PayPal, Credit Card, Western Union

Technical Support

For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours. S-parameters and thermal characteristic data can be provided upon formal request.

Frequently Asked Questions

Q1: What frequency band does HTN7G38S007P support?

A: It is wideband LDMOS transistor covering 700MHz to 3800MHz, compatible with 2G,3G,4G and sub-6GHz 5G communication systems.

Q2: What is the standard operating supply voltage of HTN7G38S007P?

A: Nominal drain operating voltage is 28V DC, allowable working voltage range 0~28V.

Q3: Does HTN7G38S007P come with built-in RF input and output matching?

A: No internal RF matching. External input and output matching circuits need to be designed according to target frequency.

Q4: What are available compatible alternative models for HTN7G38S007P?

A: Alternatives: HTN7G38S010P (10W wideband, same package), HTN7G27S007P (7W, narrower band 700-2700MHz). Foreign equivalent: AFT27S010NT1.

Q5: Can HTN7G38S007P directly replace HTN7G27S007P?

A: Package pinout is consistent, but frequency coverage differs. HTN7G38S007P supports up to 3800MHz, extra matching tuning is required for frequencies above 2700MHz.

Q6: How to handle thermal design for PDFN 5×5mm package?

A: Solder exposed thermal pad fully on PCB copper plane, add multiple thermal vias to reduce junction temperature.

Q7: What is the difference between flangeless PDFN package and flanged TO package?

A: PDFN flangeless is small SMD type for low-medium power; flanged TO packages are mostly for high-power devices requiring independent radiator locking. They cannot be pin-to-pin replaced.

Q8: What quiescent current range should I set during debugging?

A: Recommended Idq range:70mA ~100mA, adjustable based on linearity and power consumption requirements.

Q9: Is this device suitable for continuous long-time CW operation?

A: Yes. Ensure proper PCB thermal design to keep case temperature below 150°C under continuous wave working status.

Q10: Can this transistor withstand antenna open / short circuit mismatch?

A: Supports up to 10:1 VSWR unbalanced load mismatch. Still recommend adding external protection circuit for harsh industrial environments.
