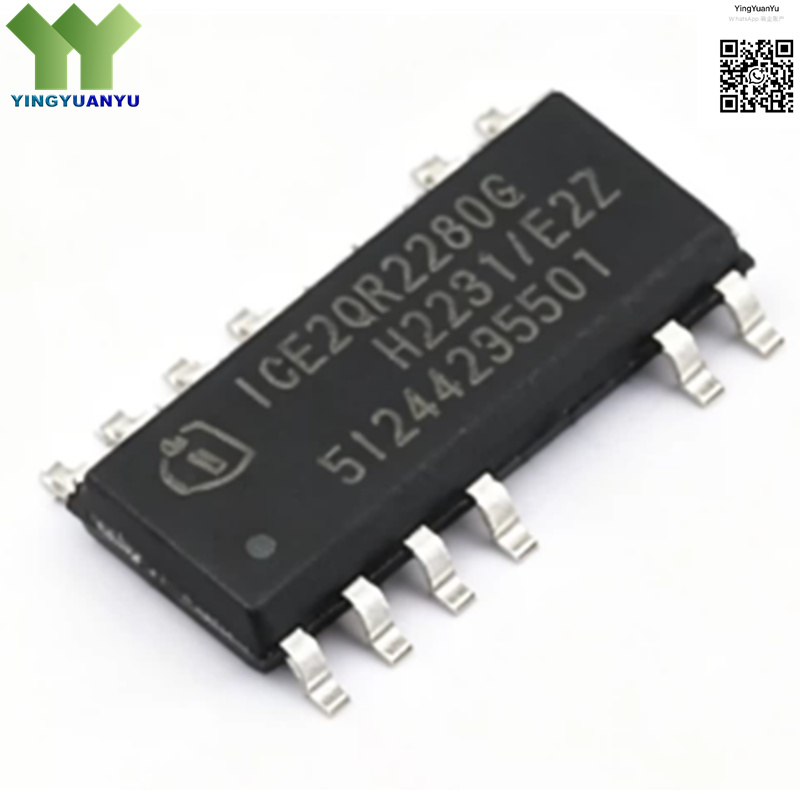

ICE2QR2280GXUMA1
ICE2QR2280GXUMA1
| Part Number | ICE2QR2280GXUMA1 |
|---|---|
| Manufacturer | Infineon Technologies |
| Category | Power Management ICs; Offline PWM Current Mode Controller |
| Description | High-Performance Off-Line PWM Current-Mode Controller with Integrated MOSFET, DSO-12 Package, Through Hole |
Product Overview
The ICE2QR2280GXUMA1 is a highly integrated offline PWM current-mode controller designed for high-efficiency switched-mode power supplies (SMPS). It combines a precision control unit with a built-in high-voltage power MOSFET, delivering low standby power, high reliability, and comprehensive protection features. The device supports fixed-frequency operation, low start-up current, and excellent voltage regulation for compact power supply designs. Housed in a standard DSO-12 through-hole package, it enables easy PCB assembly and is ideal for consumer and industrial power supply applications.
| Key Specifications | |
|---|---|
| Brand | Infineon Technologies |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DSO-12 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | ICE2QR2280G |
| Control Mode | Current-Mode PWM Control |
| Integrated MOSFET VDS | 800V |
| Supply Voltage Range | 10V ~ 25V |
| Operating Temperature | -40°C to +105°C |
Typical Applications
- Switch-Mode Power Supplies (SMPS)
- AC-DC Adapter & Charger Designs
- Set-Top Box & LCD TV Power Supplies
- Home Appliance Auxiliary Power
- Industrial Control Power Modules
- Low-Power Consumer Electronics
- LED Driver & Lighting Power Supplies
- High-Efficiency Offline Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
