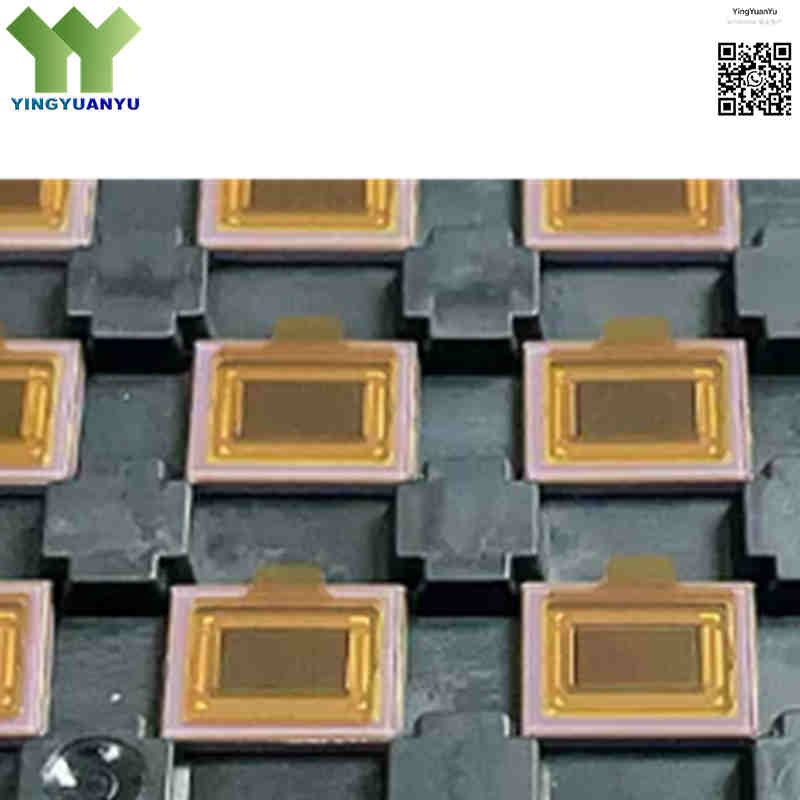

IMX123LQT-C
IMX123LQT-C
| Part Number | IMX123LQT-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 3.21 MP Back‑Illuminated Color CMOS Image Sensor, Exmor‑R Technology, Enhanced NIR Sensitivity, Sub‑LVDS Interface, Ceramic LGA‑98 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX123LQT‑C is a 1/2.8‑inch 3.21MP back‑illuminated CMOS image sensor adopting Sony Exmor‑R pixel architecture with improved near‑infrared sensitivity. Column‑parallel ADC delivers low‑noise and high dynamic‑range imaging. Full‑resolution runs up to 60fps; higher frame‑rate available under cropped window mode. Targeted for machine‑vision, dash‑cam, surveillance and embedded vision systems, packaged in ceramic LGA‑98 for stable thermal performance.
Core Advantages
3.21MP BSI Pixel with Enhanced NIR Response
Physical active array 2065 × 1553, 2.5 µm pixel, greatly improved near‑infrared sensitivity for low‑light and IR‑assisted imaging.
High‑Speed Progressive Scan Readout
60fps full‑pixel readout; higher frame rates available under cropped window modes for motion capture applications.
Exmor‑R Column‑Parallel Low‑Noise Architecture
On‑chip parallel ADC and noise reduction delivers high SNR and wide dynamic range under varying lighting conditions.
Multi‑Channel Sub‑LVDS High‑Speed Serial Output
Robust high‑bandwidth Sub‑LVDS interface, suitable for connecting to ISP or FPGA vision processing units.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Ceramic LGA‑98 (Commonly known as CLCC‑98) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 123L Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Shutter Type | Rolling Shutter |
| Active Array Size | 2065 (H) × 1553 (V) approx. 3.21 Megapixels |
| Optical Format | Type 1/2.8 inch (Diagonal 6.46 mm) |
| Pixel Size | 2.5 µm (H) × 2.5 µm (V) |
| Maximum Frame Rate | 60 fps @ Full Resolution (2065 × 1553); higher fps supported in cropped window mode |
| Output Interface | Sub‑LVDS Serial Interface (Multi‑Channel) |
| ADC Resolution | 10‑bit / 12‑bit /14‑bit On‑Chip A/D Converter |
| Input Clock Frequency | Max 74.25 MHz |
| Supply Voltage | 2.8 V (Analog), 1.8 V, 1.2 V (Digital) |
| Operating Temperature Range | ‑30°C to +85°C |
Typical Applications
- High‑Speed Industrial Machine Vision and Factory Automation Inspection
- Automotive Dashcams, Drive Recorders
- High‑Definition IP Security Surveillance Cameras and Smart City Systems
- ITS (Intelligent Transportation Systems) and License Plate Recognition (ANPR)
- Robotics, Drones, and Embedded Smart Sensing Vision Modules
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the pixel resolution and optical format of IMX123LQT‑C?
A1: 1/2.8‑inch optical format, active array 2065 × 1553 (3.21MP), pixel size 2.5 µm.
Q2: What frame rate does IMX123LQT‑C support?
A2: 60fps full‑resolution; higher frame rates are available in cropped‑window readout mode.
Q3: What interface does IMX123LQT‑C adopt?
A3: Multi‑channel Sub‑LVDS, designed for ISP or FPGA image data transmission.
Q4: Difference between Ceramic LGA‑98 and CLCC‑98?
A4: Official name is Ceramic LGA‑98 with bottom‑side pads. CLCC‑98 is a market alias; true CLCC uses side castellated pads.
Q5: IMX123LQT‑C vs IMX124LQT‑C?
A5: Same LGA‑98 footprint. IMX123LQT‑C: rolling‑shutter, enhanced NIR. IMX124LQT‑C: global‑shutter. Not plug‑and‑play, driver modification required.
Q6: What does suffix ‑‑C mean?
A6: Suffix‑C represents ceramic LGA‑98 package. Different suffix stands for different screening grade, do not replace without PCB validation.
Q7: Can IMX123LQT‑C directly replace IMX122 series?
A7: Not drop‑in compatible. Pin assignment and power sequence differ, PCB layout and firmware need re‑validation.
Q8: Are there pin‑to‑pin alternative sensors?
A8: No direct pin‑compatible substitutes. Verify package, interface, NIR performance and firmware for alternative parts.
Q9: Where to get datasheet and quotation?
A9: Submit request via Quick Inquiry form for datasheet, reference design, stock and volume pricing.
