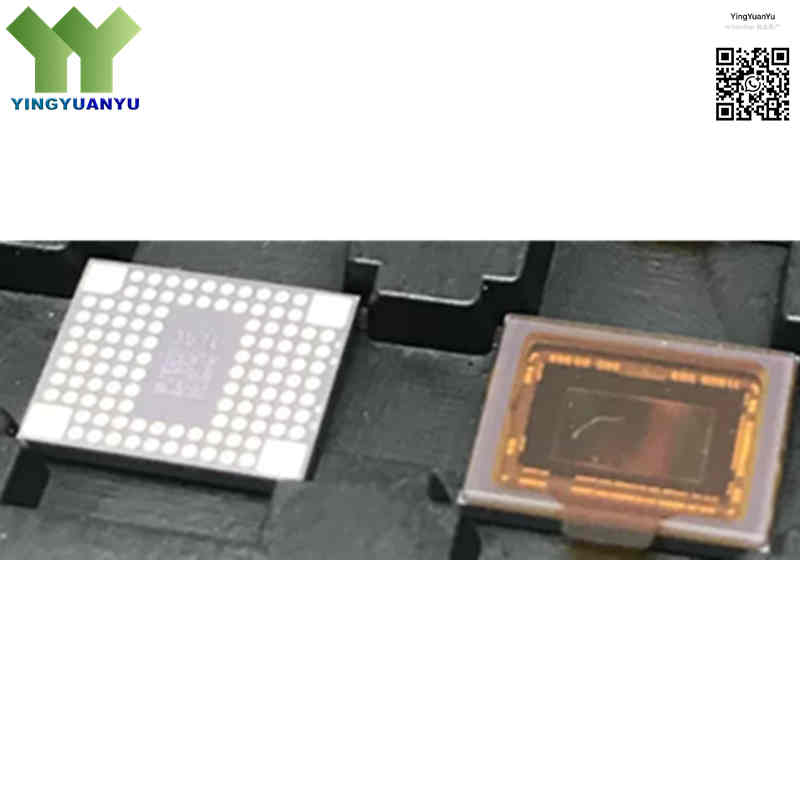

IMX307LQR-C
IMX307LQR-C
| Part Number | IMX307LQR-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.8″ 2.13 MP Full HD Color CMOS Image Sensor, STARVIS Technology, DOL‑HDR, 110‑Pin Ceramic LGA, Tape & Reel. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX307LQR‑C is a 2.13‑Megapixel Full‑HD CMOS image sensor with 1/2.8‑inch optical format, adopting Sony STARVIS back‑illuminated technology. It delivers outstanding star‑light low‑light performance and DOL‑HDR capability, supporting Sub‑LVDS and MIPI CSI‑2 dual‑interface output at 1080p@60fps for surveillance, dashcam, smart doorbell and industrial vision applications.
Core Advantages
STARVIS Star‑Light Sensitivity
Back‑illuminated pixel design enhances light absorption for clear color imaging under dim star‑grade lighting conditions.
DOL‑HDR Multiple‑Exposure
Digital overlap HDR suppresses motion ghost, preserving detail in both bright highlight and dark shadow areas.
1080P 60fps High Frame Rate
60fps full‑HD output satisfies real‑time monitoring and AI vision algorithm processing demands.
Dual‑Interface Switchable Output
Sub‑LVDS and MIPI CSI‑2 (2/4‑Lane) with RAW10 / RAW12 output, compatible with mainstream ISP and SoC chips.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 110‑Pin Ceramic LGA (Land Grid Array) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 307L Marking |
| Chroma | Color (RGB Bayer Pattern) |
| Total Array Size | 1945 (H) x 1109 (V) |
| Active Array Size | 1945 (H) x 1097 (V) approx. 2.13 Megapixels (Full HD 1080p) |
| Recommended Recording Pixels | 1920 (H) x 1080 (V) approx. 2.07 Megapixels |
| Optical Format | Type 1/2.8 inch (Diagonal 6.46 mm) |
| Pixel Size | 2.9 µm (H) x 2.9 µm (V) |
| Maximum Frame Rate | 60 fps @ Full HD 1080p (1920 x 1080) |
| Output Interface | Sub‑LVDS Serial, MIPI CSI‑2 (2‑Lane / 4‑Lane), RAW10 / RAW12 |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Shutter Type | Rolling Shutter, Variable Electronic Shutter |
| WDR Mode | Multiple‑exposure DOL‑HDR Supported |
| NIR Sensitivity | Enhanced Near‑Infrared Response for IR Night Vision |
| Minimum Illumination | 0.24 lux (SNR1s) |
| Supply Voltage | 2.9V (Analog), 1.8V (Interface), 1.2V (Digital Core) |
| Operating Temperature Range | -30°C to +85°C |
Typical Applications
- IP Security Surveillance Cameras and Smart City Video Systems
- Automotive Dashcams, Driver Assistance Systems (ADAS), and Drive Recorders
- Smart Home Video Doorbells, Security Systems, and IoT Cameras
- Intelligent Transportation Systems (ITS) and License Plate Recognition (ANPR)
- Industrial Inspection, FA Equipment, AI Edge Vision Terminals, and Robotics
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does suffix ‑C mean for IMX307LQR‑C?
A: Suffix ‑C indicates tape‑and‑reel packaging for SMT mass production. IMX307LQR without ‑C is tray‑packed. Chip optical and electrical performance are identical.
Q2: Difference between IMX307LQR‑C and IMX307LQD‑C?
A: Same core imaging performance. IMX307LQR‑C: 110‑pin LGA, supports Sub‑LVDS + MIPI CSI‑2 dual interface. IMX307LQD‑C:112‑pin BGA, only MIPI CSI‑2. Footprint and pinout differ, cannot direct drop‑in replacement, PCB modification required.
Q3: What are the pixel specifications of IMX307LQR‑C?
A: 1/2.8 inch optical format, 2.9μm pixel size. Total pixels 1945×1109; effective pixels 1945×1097; recommended output 1920×1080 Full HD.
Q4: How about its low‑light performance?
A: STARVIS back‑illuminated sensor, 0.24 lux(SNR1s). Supports NIR enhancement, delivers usable color image under star‑light conditions.
Q5: What alternative sensors can replace IMX307LQR‑C?
A: IMX290LQR:2MP STARVIS, max 120fps, lower sensitivity. IMX327LQR:2MP STARVIS, better low‑light performance. None are pin‑to‑pin compatible, hardware and firmware adjustment needed.
Q6: Can IMX307LQR‑C directly substitute IMX307LQD‑C on existing PCB?
A: No. LGA‑110 and BGA‑112 footprint and pin assignment mismatch. Direct mounting causes connection failure, PCB redesign is necessary.
Q7: Where can I get datasheet and bulk quotation?
A: Submit inquiry form to receive official datasheet, design reference, stock status and volume pricing.
