IMX322LQJ-C
IMX322LQJ-C
| Part Number | IMX322LQJ‑C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.9″ 2.12 Megapixel Full HD Color CMOS Image Sensor, 1920 × 1080 Resolution, Exmor™ Technology, LGA‑98 (CLCC) Ceramic Surface‑Mount Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The IMX322LQJ‑C is a 2.12‑megapixel Exmor CMOS image sensor with 1/2.9‑inch optical format (6.23 mm diagonal). It delivers 1080p@30fps output, featuring high sensitivity and low dark‑current RGB Bayer filter for low‑light performance. This is commercial‑consumer grade and not AEC‑Q100 automotive qualified.
Core Advantages
Exmor Low‑Noise Imaging
Integrated column‑parallel A/D, CDS and PGA for high‑SNR, smear‑free low‑light performance.
Full‑HD 1080p Output
Native 1080p@30fps, supports 720p subsampling for surveillance and video recording.
Parallel CMOS Digital Interface
Selectable 10‑bit /12‑bit output, multiple read modes, low power for continuous video operation.

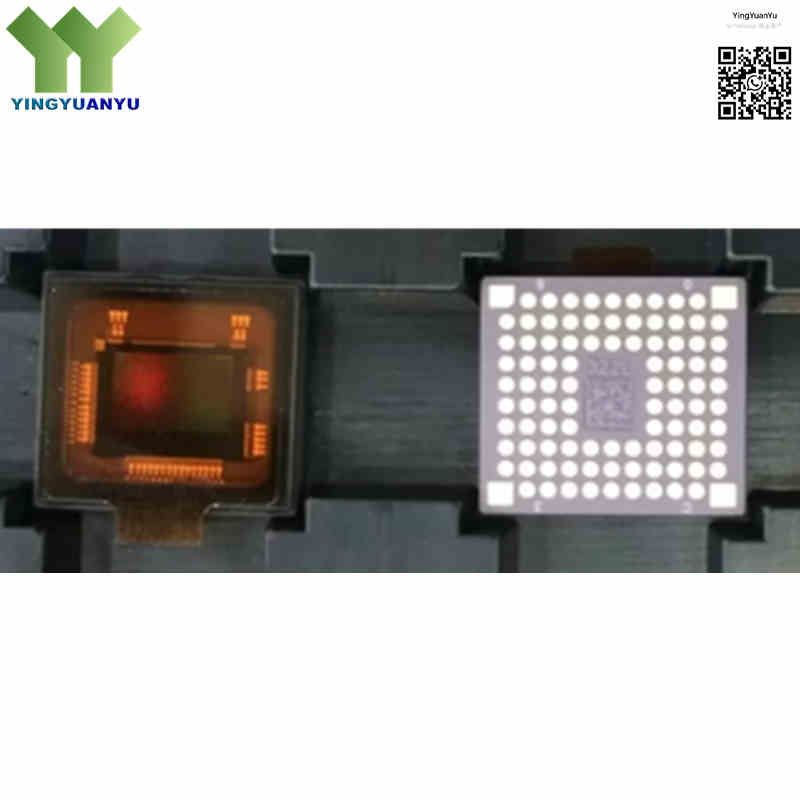

CLCC Ceramic LGA Package
Ceramic CLCC LGA for SMT assembly, long‑time continuous operation. Not for safety‑critical automotive systems.
Key Specifications
| Brand | Sony Semiconductor Solutions |
|---|---|
| RoHS Status | Lead‑Free / RoHS Compliant |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | LGA‑94 (CLCC Ceramic Package) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | 322L |
| Active Pixel Array | 1984 (H) x 1105 (V), approx. 2.12 Megapixels |
| Optical Format | 1/2.9 Inch (Diagonal 6.23 mm) |
| Pixel Size | 2.8 μm x 2.8 μm |
| Maximum Frame Rate | 30 fps @ 1080p Full Resolution |
| Output Interface | CMOS Parallel (10‑bit / 12‑bit Digital Output) |
| Reference Input Clock | 37.125 MHz (Recommended) |
| Analog Gain Range | 0 dB ~ 24 dB |
| Total Combined Gain | 24.3 dB ~ 42 dB |
| Power Supply Voltage | Analog: 2.7 V, Digital: 1.2 V, I/O: 1.8 V |
| On‑Chip Function | CDS, PGA Programmable Gain, Variable‑Speed Electronic Shutter, RGB Primary‑Color Mosaic Filter |
| Operating Temperature | -30°C ~ +75°C (Absolute Maximum) |
| Guaranteed Performance Temperature | -10°C ~ +60°C |
| Storage Temperature | -40°C ~ +80°C |
Typical Applications
- IP Security Cameras & HD Analog Surveillance Cameras
- Consumer Dashcam & Driving Recorder (non‑safety automotive application)
- HD Video Conference Cameras & USB Webcams
- General‑purpose commercial imaging (Not AEC‑Q100 automotive grade)
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are resolution and optical format for IMX322LQJ‑C?
A: 2.12‑megapixel effective pixels (1984 × 1105), 1/2.9‑inch optical format, pixel size 2.8 μm × 2.8 μm.
Q2: What output interface and reference clock does IMX322LQJ‑C use?
A: CMOS parallel digital output, supports 10‑bit / 12‑bit modes. Recommended reference clock: 37.125 MHz.
Q3: Is IMX322LQJ‑C AEC‑Q100 automotive‑grade?
A: No, it is commercial‑consumer grade. For consumer dashcam only, not for vehicle safety‑critical systems. Guaranteed performance temperature: ‑10℃ ~ +60℃.
Q4: What is the difference between IMX322LQJ‑C and IMX222LQJ‑C?
A: Same CLCC LGA package, pin‑compatible. IMX222LQJ‑C is IR‑enhanced variant with different optical filter. Check filter specs before replacement.
Q5: What does suffix LQJ‑C stand for?
A: LQJ = CLCC ceramic LGA package; ‑C = RGB color filter. LGA‑94 / LGA‑98 are third‑party socket names, not Sony official specifications.
Q6: What are alternative compatible sensor models?
A: Comparable Sony 2MP sensors: IMX323LQN‑C, IMX307 series. None are direct pin‑to‑pin drop‑in replacement. Verify package, circuit and driver firmware before substitution.
Q7: Can IMX322LQJ‑C be directly replaced by IMX323LQN‑C?
A: Not plug‑and‑play. Same pixel & optical size, but different footprint and electrical specs. Hardware redesign and firmware modification required.
Q8: How to get datasheet, samples or bulk pricing?
A: Submit via Quick Inquiry form for datasheet, CAD files, sample and volume quotation.
