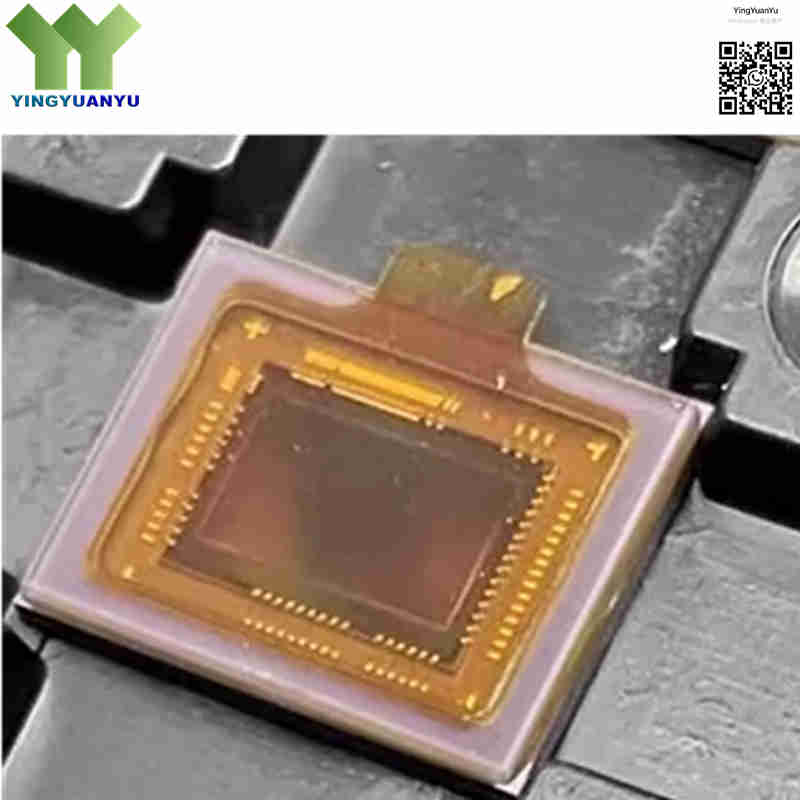

IMX577-AACK-C
IMX577-AACK-C
| Part Number | IMX577-AACK-C |
|---|---|
| Manufacturer | Sony Semiconductor Solutions |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/2.3″ 12.3 MP 4K High‑Speed Back‑Illuminated Stacked CMOS Image Sensor, STARVIS Technology, Ceramic LGA‑92 Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
IMX577‑AACK‑C is Sony 1/2.3‑inch 12.3MP stacked CMOS image sensor with Exmor RS and STARVIS technology. It supports DOL‑HDR high dynamic range, 60fps full‑resolution output in normal mode. Housed in Ceramic LGA‑92 package with MIPI CSI‑2 interface, widely used for drone, action camera and industrial vision applications.
Core Advantages
12.3MP 4K High Resolution
4056 × 3040 pixel array, delivers clear 4K UHD imaging performance.
Exmor RS STARVIS BSI Design
Stacked back‑illuminated pixel enhances light sensitivity for excellent low‑light image quality.
DOL‑HDR & Flexible Frame‑Rate
60fps full‑resolution under normal mode; 30fps with DOL‑HDR enabled. Supports binning, electronic shutter, up to 240fps for 1080p cropped output.
High‑Speed MIPI CSI‑2 Interface
2/4‑lane D‑PHY v1.2 interface, single lane bandwidth up to 2.1Gbps for fast RAW data transmission.
Ceramic LGA‑92 & On‑Chip Functions
Ceramic LGA‑92 SMD package for stable industrial performance. Built‑in ALS, temperature sensor and OTP ROM for embedded camera projects.
Key Specifications
| Brand | Sony |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | LGA (10.7X8.5mm) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | IMX577‑AACK |
| Chroma | Color (RGB Bayer Pattern) |
| Active Array Size | 4056 (H) x 3040 (V) approx. 12.3 Megapixels |
| Optical Format | Type 1/2.3 inch (Diagonal 7.857 mm) |
| Pixel Size | 1.55 µm (H) x 1.55 µm (V) |
| Maximum Frame Rate | 60fps @12.3MP normal mode; 30fps @12.3MP DOL‑HDR mode; 60fps @4K UHD; up to 240fps @1080p |
| Output Interface | MIPI CSI‑2 (2‑Lane /4‑Lane), D‑PHY v1.2, max 2.1Gbps per lane |
| Control Interface | I²C (CCI‑2) |
| Data Output Format | RAW8 / RAW10 / RAW12 / COMP8 |
| ADC Resolution | 10‑bit / 12‑bit On‑Chip A/D Converter |
| Clock Input Frequency | 6 MHz ~ 27 MHz |
| Supply Voltage | VANA:2.8V; VDIG:1.05V; VIFT:1.8V |
| Special Features | DOL‑HDR, Electronic Shutter, Binning, Mirror/Flip, Built‑in ALS & Temperature Sensor, OTP ROM |
| Operating Temperature Range | -20°C to +75°C |
Typical Applications
- Action Cameras, Sports DV Recorders, and Consumer Camcorders
- Drone / UAV Aerial Imaging and Gimbal Camera Systems
- High‑Definition Security Surveillance Cameras and Smart City Systems
- Industrial Inspection, Embedded Vision Modules, and Machine Vision
- Enterprise Video Conferencing Systems and High‑End Webcams
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the format and resolution of IMX577‑AACK‑C?
A: It is a 1/2.3‑inch image sensor with 4056 × 3040 (12.3MP) effective pixels, supporting native 4K imaging.
Q2: What benefit does Exmor RS STARVIS bring?
A: Stacked back‑illuminated pixel improves light‑gathering capability, delivering low‑noise images in low‑light scenarios.
Q3: What interfaces does IMX577‑AACK‑C use?
A: MIPI CSI‑2 D‑PHY v1.2 (2/4‑lane) for data output; I²C CCI‑2 for register configuration.
Q4: What is the difference between suffix ‑C and ‑G?
A: IMX577‑AACK‑C: Ceramic LGA‑92, better temperature stability for industrial use. IMX577‑AACK‑G: Plastic LGA‑92 for consumer projects. Two versions are pin‑to‑pin compatible.
Q5: How does DOL‑HDR affect frame rate?
A: Full‑resolution reaches 60fps in normal mode. Frame rate drops to 30fps once DOL‑HDR dual‑frame HDR is enabled.
Q6: Are there alternative sensors for IMX577‑AACK‑C?
A: Pin‑compatible alternative: IMX577‑AACK‑G(plastic package). Performance reference: IMX477, but not pin‑compatible; hardware and driver modification is required.
Q7: What power supplies are required?
A: Three power rails: VANA 2.8V, VDIG 1.05V, VIFT 1.8V. All rails must work properly for normal operation.
Q8: Where can I get datasheet and pricing?
A: Please submit Quick Inquiry form for datasheet, pinout, stock status and bulk quotation.
