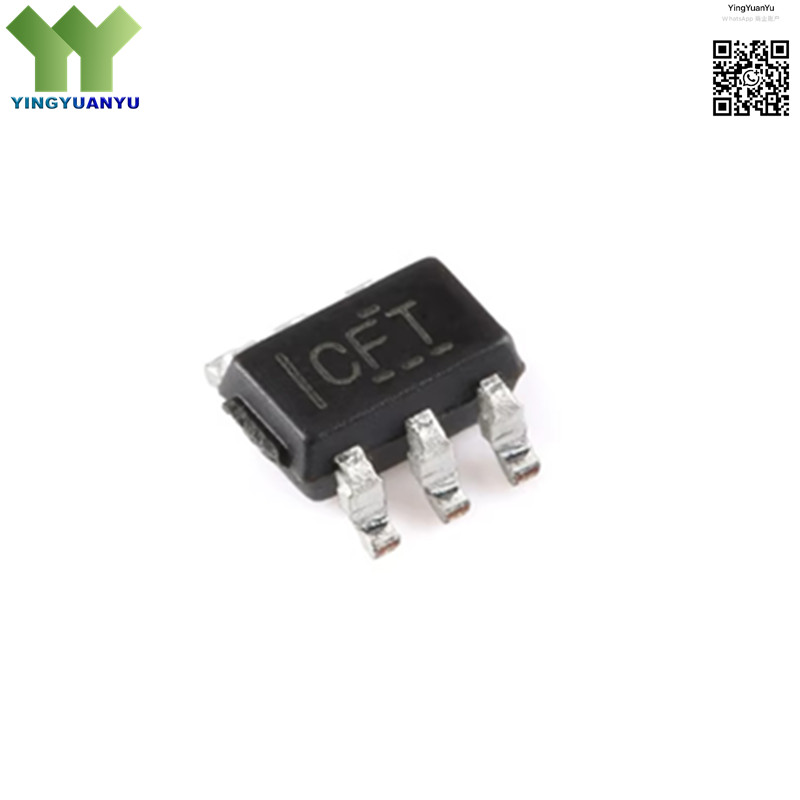

INA213AIDCKR
INA213AIDCKR
| Part Number | INA213AIDCKR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Current Sense Amplifiers; High-Side Bidirectional Current Monitors |
| Description | 26V Bidirectional Current Sense Amplifier, 50V/V Fixed Gain, High Precision, SC-70-6 Package |
Product Overview
The INA213AIDCKR is a high-precision, low-power bidirectional current sense amplifier designed for industrial, automotive, and portable electronics applications. It supports a wide common-mode voltage range from -4V to 26V, enabling flexible high-side and low-side current monitoring with ultra-low offset voltage and high accuracy. The device features a fixed gain of 50V/V, wide bandwidth, low quiescent current, and robust ESD protection for stable operation in noisy environments. Its compact SC-70-6 package ensures minimal PCB space usage, making it ideal for space-constrained designs. With wide temperature tolerance and long-term stability, it delivers reliable performance for battery management, power monitoring, and over-current protection systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Gain | 50 V/V (Fixed) |
| Common-Mode Voltage | -4V to 26V |
| Sensing Type | Bidirectional Current Sensing |
| Package Type | SC-70-6 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Battery Management Systems (BMS)
- High-Side & Low-Side Current Monitoring
- Portable & Wearable Electronics
- Industrial Automation & Control
- DC-DC Converters & Power Supplies
- Over-Current Protection Circuits
- IoT & Wireless Sensor Nodes
- Automotive Electronics & Power Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
