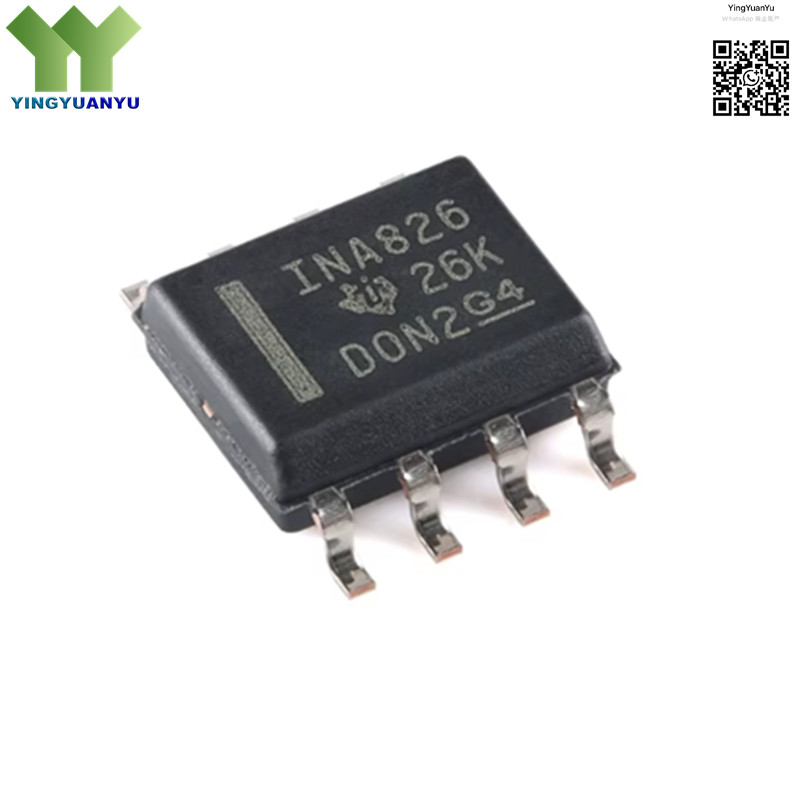

INA826AIDR
INA826AIDR
| Part Number | INA826AIDR |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Instrumentation Amplifiers; Precision Low-Power Instrumentation Amps |
| Description | Precision Low-Power Instrumentation Amplifier, 100dB CMRR, Gain 1-1000, SOIC-8 Package |
Product Overview
The INA826AIDR is a high-precision, low-power general-purpose instrumentation amplifier designed for accurate signal conditioning in industrial, medical, and sensor-based applications. It features high common-mode rejection ratio (CMRR), low offset voltage, low input bias current, and excellent temperature stability, enabling reliable amplification of small differential signals in noisy environments. The device supports a wide gain range from 1 to 1000 via a single external resistor, operates from dual or single supply, and offers low quiescent current for battery-powered systems. With robust ESD protection and high linearity, it delivers consistent performance for precision measurement applications. Housed in a standard SOIC-8 surface-mount package, it supports easy PCB integration for compact measurement systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Gain Range | 1 to 1000 (Adjustable) |
| CMRR | 100dB (Minimum) |
| Supply Voltage | ±2.25V to ±18V / 4.5V to 36V |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Precision Sensor Signal Conditioning
- Bridge Amplifier (Strain Gauge, Pressure Sensor)
- Industrial Measurement & Data Acquisition
- Medical Instrumentation & Monitoring
- Low-Level Differential Signal Amplification
- Test & Measurement Equipment
- Portable & Battery-Powered Measurement Systems
- High-Noise Industrial Environment Sensing
